OUR HUMAN FACTORS ENGINEERS FOCUS ON THE TACTILE AND AUDIBLE RESPONSES THAT ALLOW HEALTHCARE PROFESSIONALS TO SET DEVICE CONTROLS EASILY AND CONFIDENTLY.
Grayhill understands the human interface requirements of doctors, nurses, and technicians in the Healthcare market. Our industrial design team creates products that have sealed and washable surfaces with minimal crevices. We select materials for their ability to inhibit bacterial growth and withstand a vast array of disinfecting chemicals.
Because of our ability to offer quality-tested custom configurations, our encoders, pushbuttons, and joysticks are popular components in healthcare electronic devices. Further, Grayhill specializes in the design of custom front panels that incorporate the above components, as well as custom keypads, touchpads, and optically bonded displays with multi-touch capacitive touchscreens. Our engineering team can help specify the appropriate display technology and then tool a rugged and sealed housing to protect it.
HEALTHCARE SOLUTIONS CUSTOM APPLICATIONS
Grayhill always focuses on creating a reliable user interface solution for the end user, no matter the application. In the case of medical professionals, our products aim to provide excellent tactile and audible feedback during critical situations. We design with minimal crevices and durable materials to meet cleaning and disinfection requirements commonly seen in healthcare applications.
- VERTICAL INTEGRATION: ULTRASOUND PANEL
- CT CONTROL PANEL SOLUTION
- MULTI-SPEED TOUCHPAD
- CUSTOM ECG KEYBOARD
- PATIENT TRANSPORT KEYPAD ASSEMBLY
- ALL-IN-ONE ULTRASOUND PANEL

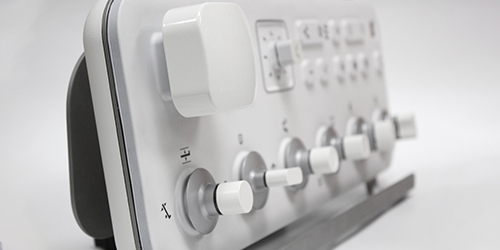

VERTICAL INTEGRATION: ULTRASOUND PANEL

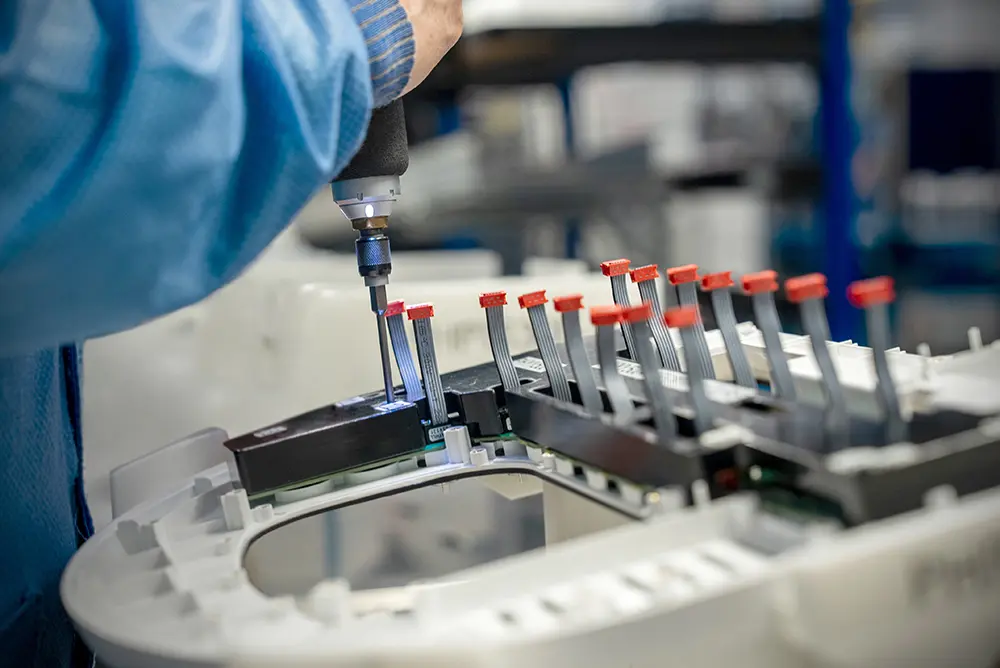

Grayhill designed and manufactured this ultrasound panel which includes a USB hub, sculpted plastic bezel, PCB with electronics and firmware, sealed keypad, and uniform backlighting. Our own components, such as the 62NG Value Rotary Encoder and 60A NavCoder Multifunction Joystick, are also integrated.
CT CONTROL PANEL SOLUTION
Grayhill provides this computerized tomography (CT) control panel with a co-molded silicone keypad encased in a plastic front bezel. Each button has dual contact, including a dome switch and carbon pills directly molded into the silicone buttons. The system provides redundancy to meet the safety requirements of the machine.
Products used for this solution:
MULTI-SPEED TOUCHPAD
The T2 Trackpad replaces the traditional trackball on an ultrasound machine by eliminating crevices prone to bacteria growth. Grayhill’s custom solution allows the system to have different speed settings for mouse/cursor operations versus measurement and tracing modes.
Products used for this solution:
CUSTOM ECG KEYBOARD
Grayhill designed and produced this sealed electrocardiogram (ECG) keypad module with no cracks and crevices for cleanability. Our Electrical and Firmware engineers developed the electronics for the USB interface.
Products used for this solution:
PATIENT TRANSPORT KEYPAD ASSEMBLY
The custom keypad assemblies made by Grayhill are resistant to the chemicals used in a MRSA decontamination process with no cracks and crevices for cleanability. With each button rated to 3M cycles, the modules provide a rugged and stylish interface in this patient transport bed.
Products used for this solution:
ALL-IN-ONE ULTRASOUND PANEL
In addition to the enclosure with electronics and an integrated display, Grayhill designed and produced the key cluster module. This panel is uniformly backlit, and the exterior is coated for maximum chemical and corrosion resistance.
Products used for this solution:
FIELD-PROVEN APPLICATIONS:
DIAGNOSTICS
- Ultrasounds
- Computerized Tomography (CT) Scanners
- Magnetic Resonance Imaging (MRI) Scanners
- Positron Emission Tomography (PET) Scanners
- Diagnostic and image Guided Therapy (iGT) systems controls
PATIENT CARE
- Patient Monitors
- Patient Beds and Patient Transports
- Portable Defibrillators
- Ventilators
SERVICE AND QUALITY ASSURANCE
Our mechanical, electrical, and firmware engineers will manage the process of taking your initial concept into a fully realized and qualified intuitive human interface solution. With decades of experience designing and manufacturing sensitive electronic devices, Grayhill is a trusted supplier that will take ownership of the supply chain for your product.
