Series: 70X-ODCXR
- Switch AC or DC with the Same Module
- UL, CSA Certified
Link copied to clipboard.
Request Quote
- Products
- Description

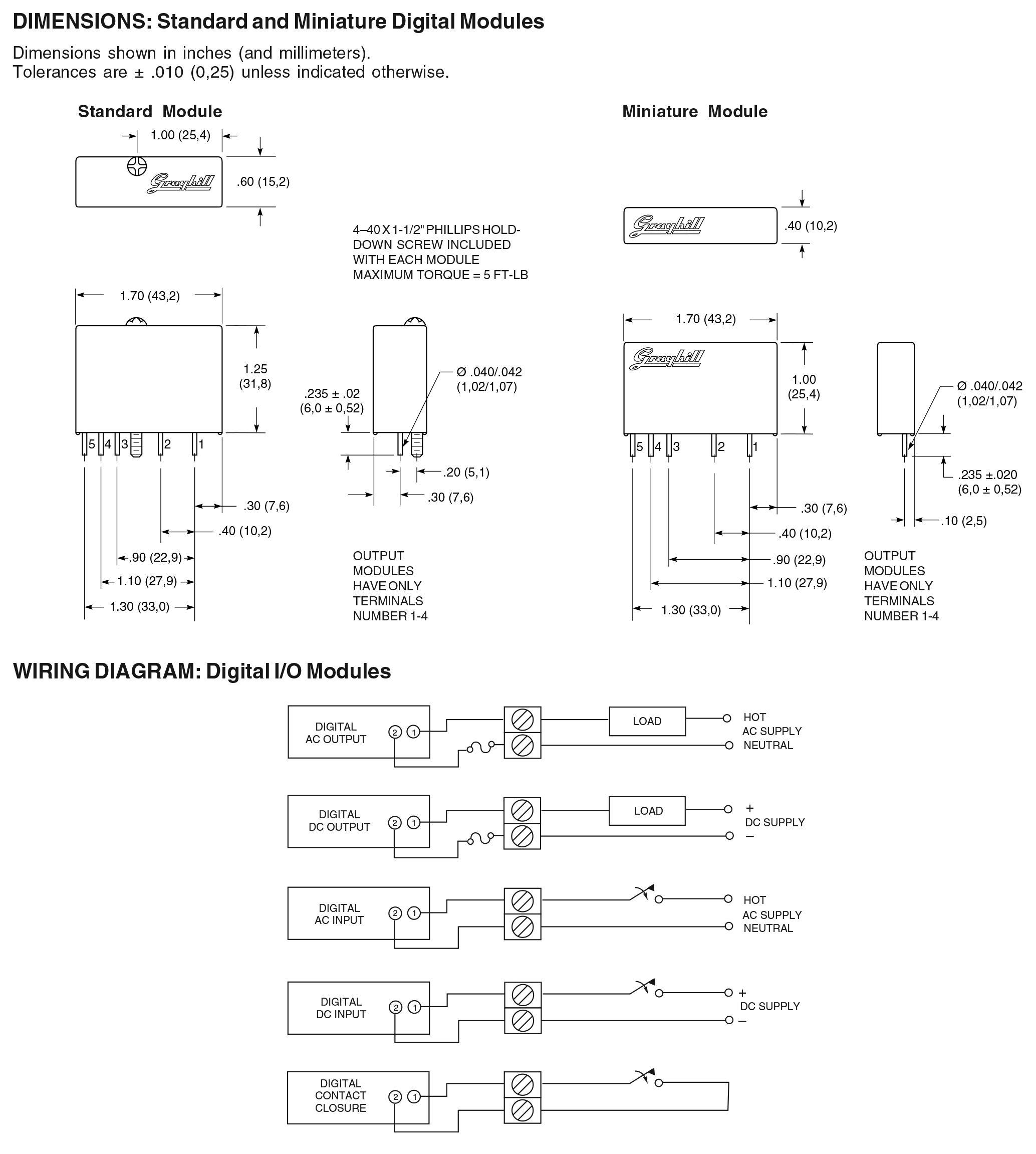

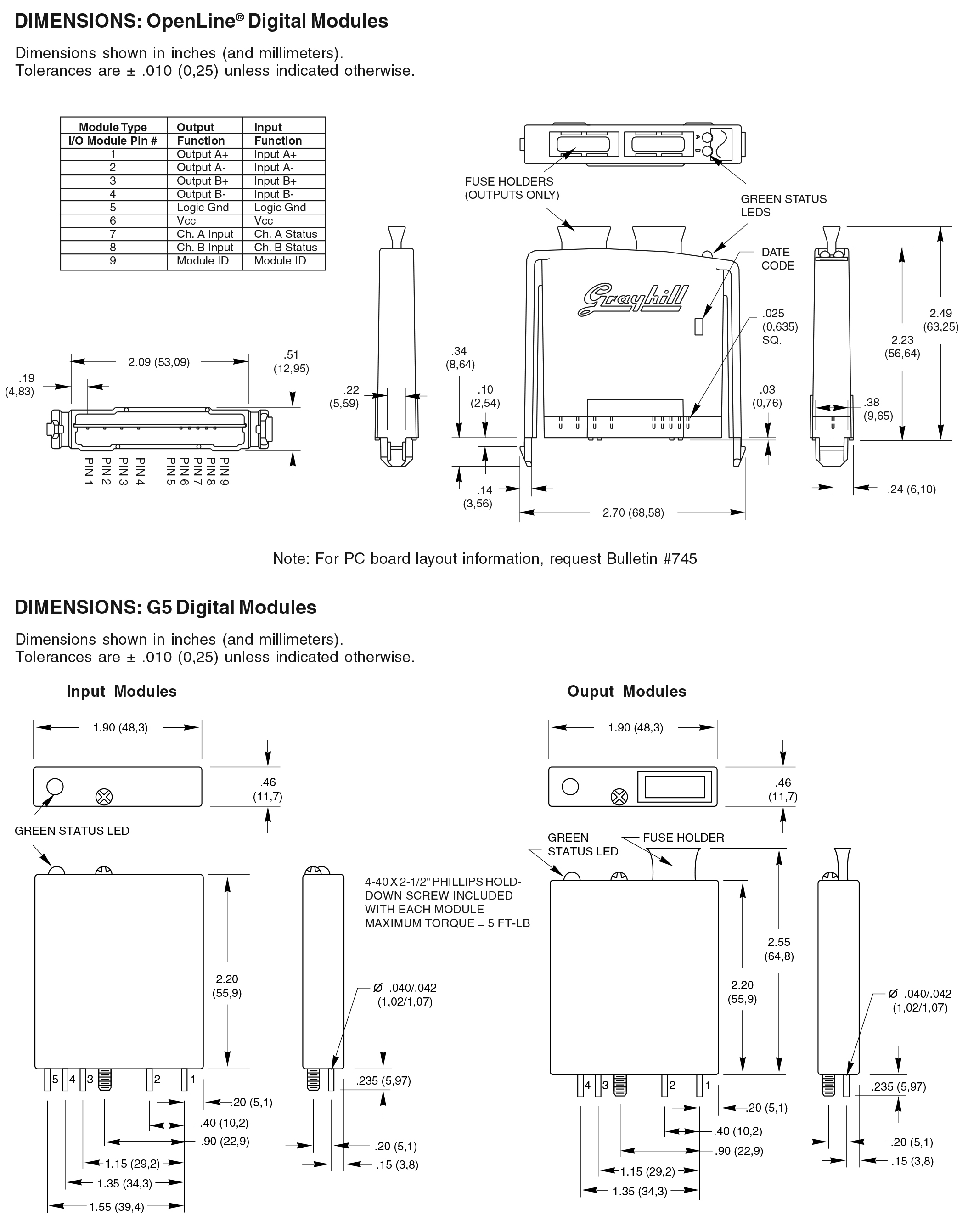

- Drawings
- Downloads
| Product | Module Type | Module Form Factor | Voltage Load | Nominal Logic Voltage |
|---|---|---|---|---|
|
I/O Modules
70-ODC24R
|
Digital I/O | Standard | 100VDC/120VAC | 24VDC |
|
I/O Modules
70-ODC5R
|
Digital I/O | Standard | 100VDC/120VAC | 5VDC |
|
I/O Modules
70G-OAC5RLY
|
Relay | G5 | 110VDC/250VAC | 5VDC |
|
I/O Modules
70G-ODC24R
|
Digital I/O | G5 | 100VDC/120VAC | 24VDC |
|
I/O Modules
70G-ODC5R
|
Digital I/O | G5 | 100VDC/120VAC | 5VDC |
|
I/O Modules
70L-ODC5R
|
Digital I/O | G5 | 200VDC/200VAC | 5VDC |
|
I/O Modules
70M-ODC24R
|
Digital I/O | Miniature | 100VDC/120VAC | 24VDC |
|
I/O Modules
70M-ODC5R
|
Digital I/O | Miniature | 100VDC/120VAC | 5VDC |
- Switch AC or DC with the Same Module
- UL, CSA Certified
- Switch AC or DC with the Same Module
- UL, CSA Certified
Products
|
|
I/O Modules
70-ODC24R
Module Type: Digital I/O Module Form Factor: Standard Voltage Load: 100VDC/120VAC Nominal Logic Voltage: 24VDC |
|
|
I/O Modules
70-ODC5R
Module Type: Digital I/O Module Form Factor: Standard Voltage Load: 100VDC/120VAC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70G-OAC5RLY
Module Type: Relay Module Form Factor: G5 Voltage Load: 110VDC/250VAC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70G-ODC24R
Module Type: Digital I/O Module Form Factor: G5 Voltage Load: 100VDC/120VAC Nominal Logic Voltage: 24VDC |
|
|
I/O Modules
70G-ODC5R
Module Type: Digital I/O Module Form Factor: G5 Voltage Load: 100VDC/120VAC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70L-ODC5R
Module Type: Digital I/O Module Form Factor: G5 Voltage Load: 200VDC/200VAC Nominal Logic Voltage: 5VDC |
|
|
I/O Modules
70M-ODC24R
Module Type: Digital I/O Module Form Factor: Miniature Voltage Load: 100VDC/120VAC Nominal Logic Voltage: 24VDC |
|
|
I/O Modules
70M-ODC5R
Module Type: Digital I/O Module Form Factor: Miniature Voltage Load: 100VDC/120VAC Nominal Logic Voltage: 5VDC |
