Series: 76-78
- Sealed Base
- Life Rating: 2,000
- Actuation: Raised or Recessed Slide or Rocker, Top or Side Actuated Toggle
- Circuitry: SPDT
Link copied to clipboard.
Request Quote
- Products
- Description

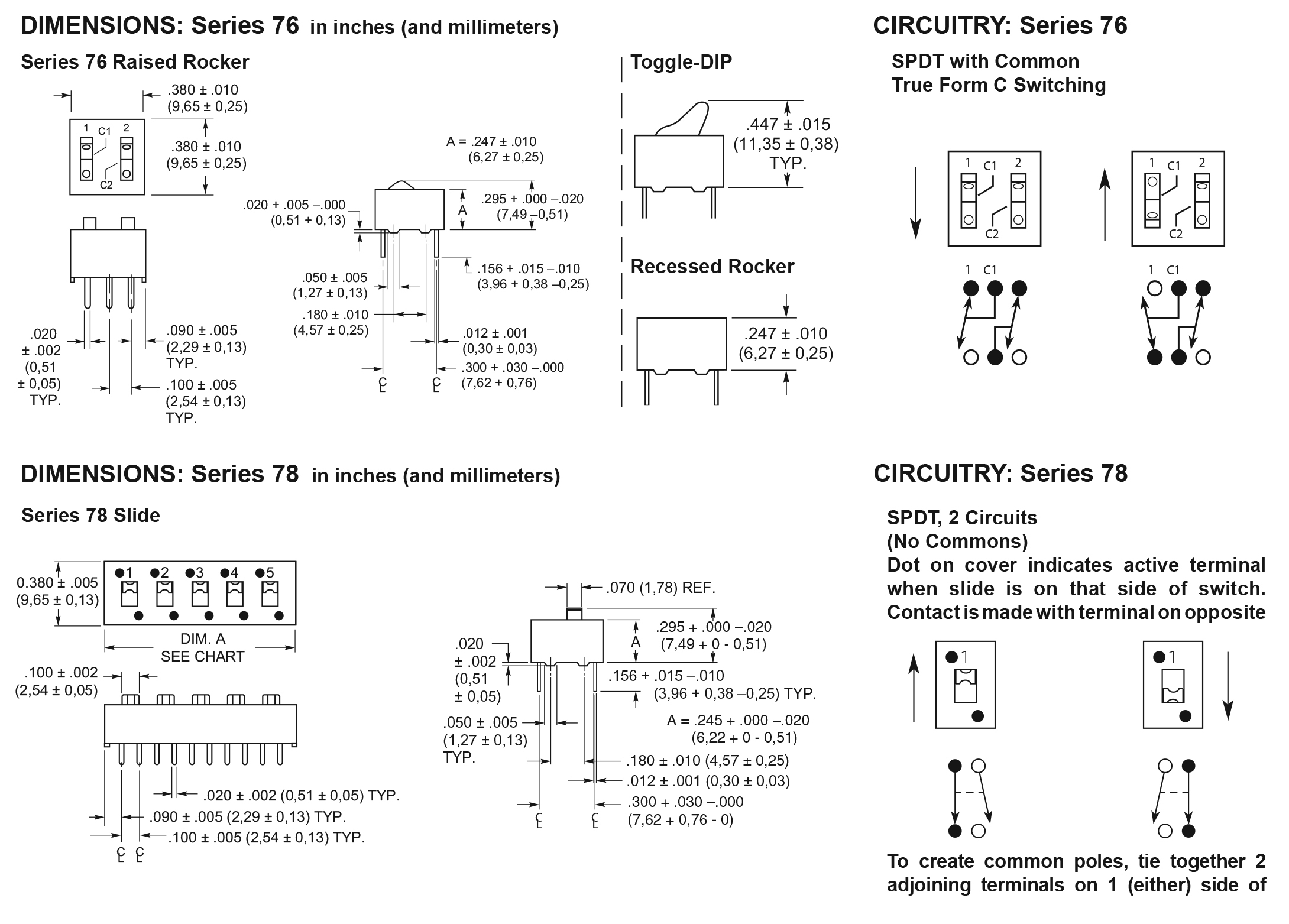

- Drawings
- Downloads
| Product | Switch Type | Circuitry | Mounting Configuration | Switch Rating |
|---|---|---|---|---|
|
Thru-Hole DIP Switches
76RSC02SLT
|
Recessed Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
76RSC02ST
|
Recessed Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
76RSC02T
|
Recessed Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
76RSC04ST
|
Recessed Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
76RSC04T
|
Recessed Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
76SC02ST
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
76SC02T
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
76SC04ST
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
76SC04T
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
76STC02T
|
Toggle-Dip | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
76STC04T
|
Half Pitch DIP | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J01RAT
|
Raised Type | Right Angle Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J01SRAT
|
Raised Type | Right Angle Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J01ST
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J01T
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J02RAT
|
Raised Type | Right Angle Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J02SRAT
|
Raised Type | Right Angle Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J02ST
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J02T
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J03RAT
|
Raised Type | Right Angle Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J03SRAT
|
Raised Type | Right Angle Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J03ST
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J03T
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J04RAT
|
Raised Type | Right Angle Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J04SRAT
|
Raised Type | Right Angle Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J04ST
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J04T
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J05RAT
|
Raised Type | Right Angle Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J05SRAT
|
Raised Type | Right Angle Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J05ST
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
|
Thru-Hole DIP Switches
78J05T
|
Raised Type | Thru-Hole | 50 mA at 30 VDC | 2000 |
- Sealed Base
- Life Rating: 2,000
- Actuation: Raised or Recessed Slide or Rocker, Top or Side Actuated Toggle
- Circuitry: SPDT
- Sealed Base
- Life Rating: 2,000
- Actuation: Raised or Recessed Slide or Rocker, Top or Side Actuated Toggle
- Circuitry: SPDT
Products
|
|
Thru-Hole DIP Switches
76RSC02SLT
Switch Type: Recessed Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
76RSC02ST
Switch Type: Recessed Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
76RSC02T
Switch Type: Recessed Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
76RSC04ST
Switch Type: Recessed Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
76RSC04T
Switch Type: Recessed Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
76SC02ST
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
76SC02T
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
76SC04ST
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
76SC04T
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
76STC02T
Switch Type: Toggle-Dip Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
76STC04T
Switch Type: Half Pitch DIP Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J01RAT
Switch Type: Raised Type Circuitry: Right Angle Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J01SRAT
Switch Type: Raised Type Circuitry: Right Angle Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J01ST
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J01T
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J02RAT
Switch Type: Raised Type Circuitry: Right Angle Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J02SRAT
Switch Type: Raised Type Circuitry: Right Angle Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J02ST
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J02T
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J03RAT
Switch Type: Raised Type Circuitry: Right Angle Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J03SRAT
Switch Type: Raised Type Circuitry: Right Angle Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J03ST
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J03T
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J04RAT
Switch Type: Raised Type Circuitry: Right Angle Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J04SRAT
Switch Type: Raised Type Circuitry: Right Angle Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J04ST
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J04T
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J05RAT
Switch Type: Raised Type Circuitry: Right Angle Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J05SRAT
Switch Type: Raised Type Circuitry: Right Angle Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J05ST
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
|
|
Thru-Hole DIP Switches
78J05T
Switch Type: Raised Type Circuitry: Thru-Hole Mounting Configuration: 50 mA at 30 VDC Switch Rating: 2000 |
