Series: 04A
Grayhill’s Discrete Joysticks are a robust solution suitable for various applications. They come with a wide range of contact mechanisms, circuitry, mounting options, and termination options. Additionally, we offer customization for actuation force, travel distance, and cabling options. Our 04A Discrete Joysticks provide 4-way directional control for easy navigation through menu options. They boast a long-life rating of 500,000 cycles and feature a compact design.
Link copied to clipboard.
Request Quote
- Products
- Description

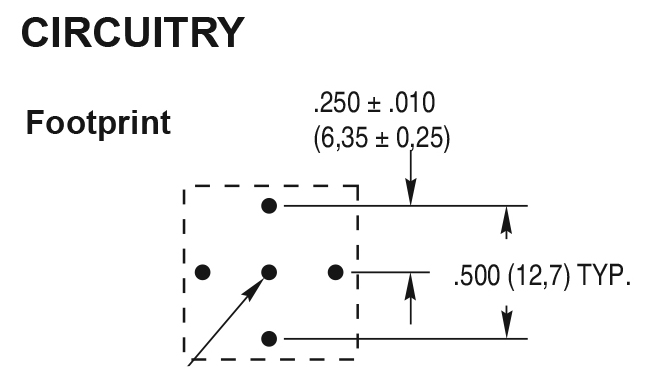

- Drawings
- Downloads
| Product | Max Switch Rating | Pushbutton | Mounting Configuration | UL Rated |
|---|---|---|---|---|
|
Discrete Joystick
04A
|
No | Panel | No | Yes |
|
Discrete Joystick
04A-B01
|
No | Panel | No | Yes |
|
Discrete Joystick
04A-K01
|
No | Panel | No | Yes |
|
Discrete Joystick
04A-K02
|
No | Panel | No | Yes |
- 4 Directions
- Life Rating (cycles): 500,000

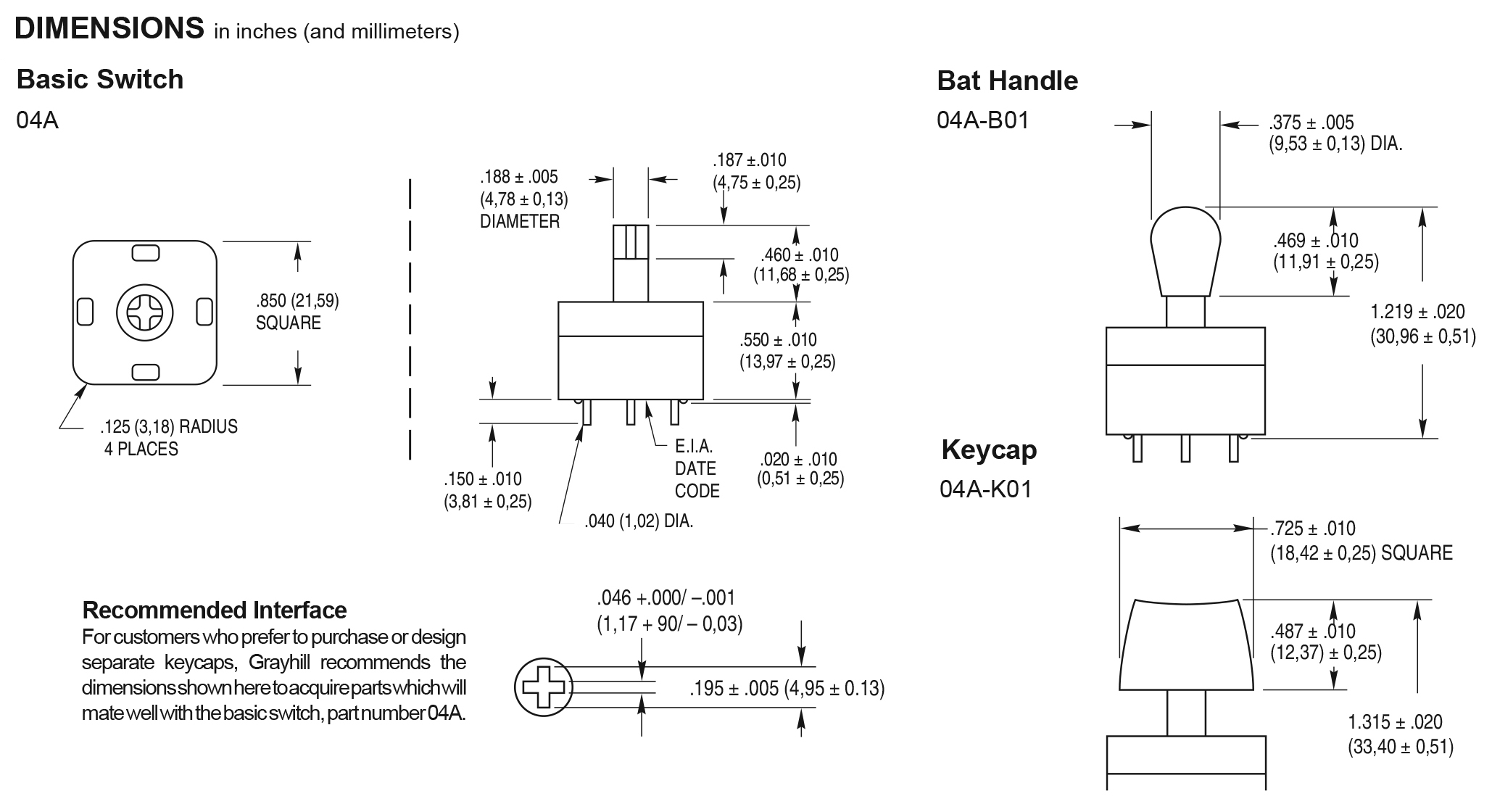

- Size inches [mm]: 0.85 [21,59] sq
- Depth Behind Panel inches [mm]: 0.55 [13,97]
- 4 Directions
- Life Rating (cycles): 500,000
- Size inches [mm]: 0.85 [21,59] sq
- Depth Behind Panel inches [mm]: 0.55 [13,97]
Products
|
|
Discrete Joystick
04A
Max Switch Rating: No Pushbutton: Panel Mounting Configuration: No UL Rated: Yes |
|
|
Discrete Joystick
04A-B01
Max Switch Rating: No Pushbutton: Panel Mounting Configuration: No UL Rated: Yes |
|
|
Discrete Joystick
04A-K01
Max Switch Rating: No Pushbutton: Panel Mounting Configuration: No UL Rated: Yes |
|
|
Discrete Joystick
04A-K02
Max Switch Rating: No Pushbutton: Panel Mounting Configuration: No UL Rated: Yes |
