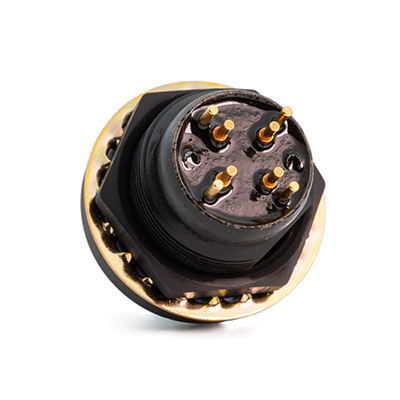

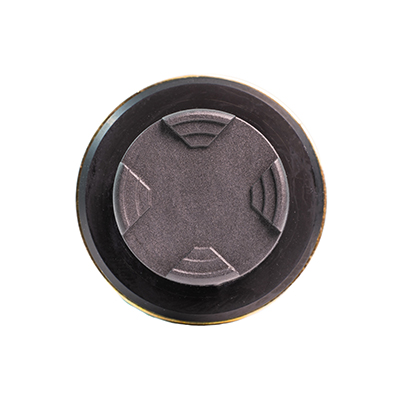

Series: 04JT
Grayhill’s Discrete Joysticks are a robust solution suitable for various applications. They come with a wide range of contact mechanisms, circuitry, mounting options, and termination options. Additionally, we offer customization for actuation force, travel distance, and cabling options. Our 04JT Discrete Joysticks provide 4-way directional control with great tactile feedback for easy navigation through menu options. They boast a long-life rating of 250,000 cycles and feature a compact design.
Link copied to clipboard.
Request Quote
- Products
- Description

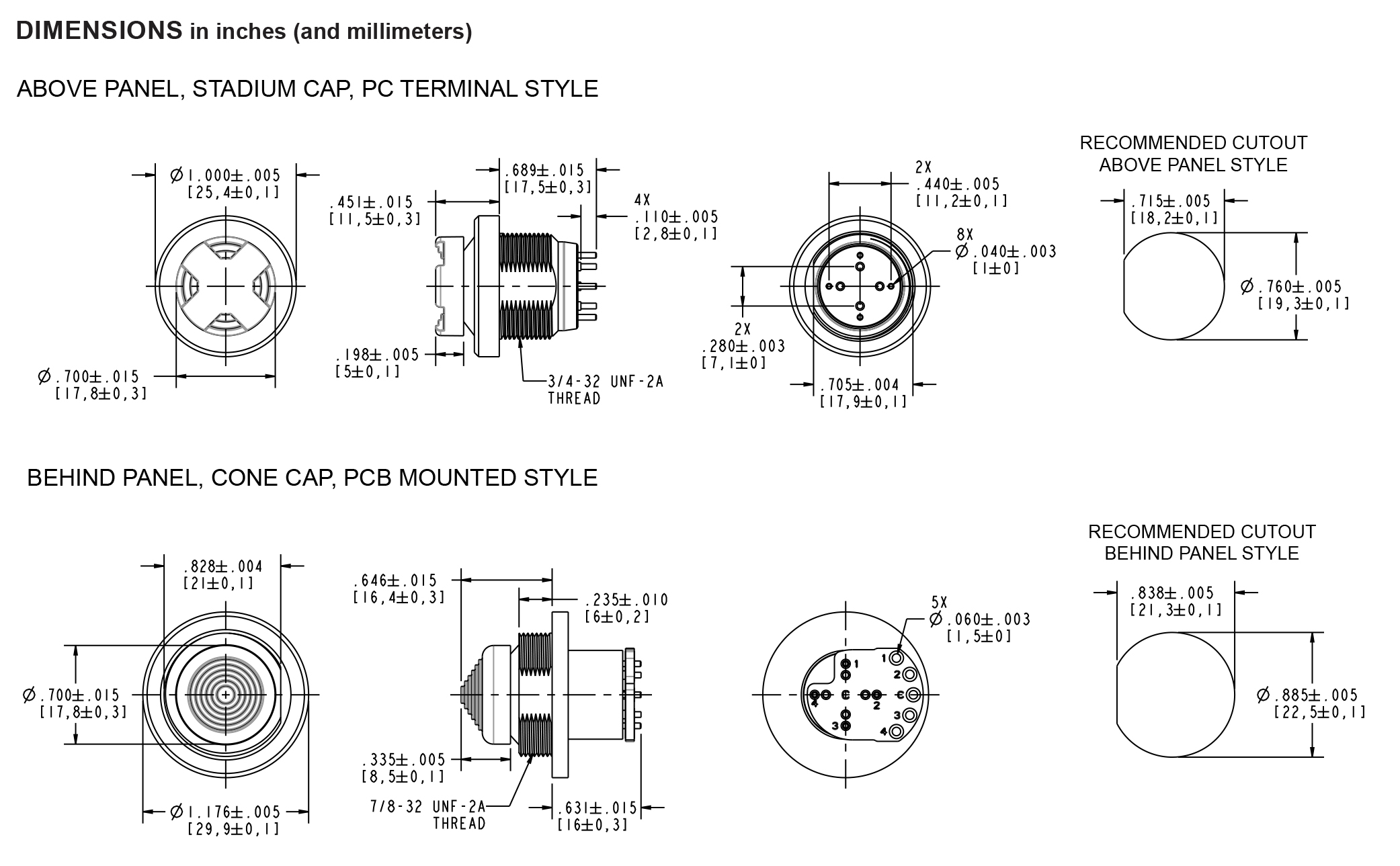

- Drawings
- Downloads
| Product | Max Switch Rating | Pushbutton | Mounting Configuration | UL Rated |
|---|---|---|---|---|
|
Discrete Joystick
04JT-AP-T02
|
No | Panel | No | Yes |
- Rugged & Sealed (IP67)
- 4 directions with tactile feedback
- Life Rating (cycles): 250,000
- Size - inches [mm]: 1 [25,4] dia
- Depth Behind Panel inches [mm]: 0.56 [14,22]
- Rugged & Sealed (IP67)
- 4 directions with tactile feedback
- Life Rating (cycles): 250,000
- Size - inches [mm]: 1 [25,4] dia
- Depth Behind Panel inches [mm]: 0.56 [14,22]
Products
|
|
Discrete Joystick
04JT-AP-T02
Max Switch Rating: No Pushbutton: Panel Mounting Configuration: No UL Rated: Yes |
