Series: 60AR

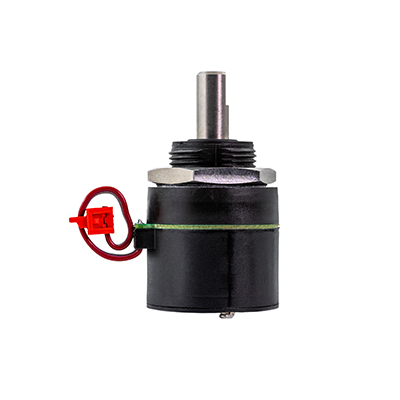

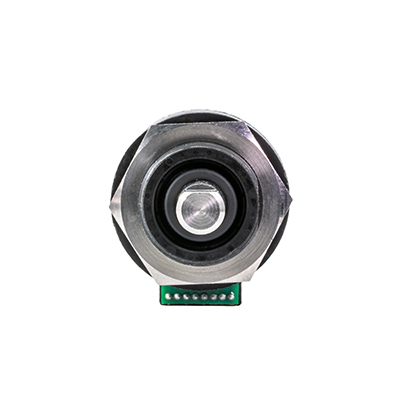

Grayhill's 60AR NavCoder Multifunction Joysticks are specialized interface devices designed for navigating on-screen software. They provide directional control in 4-way or 8-way configurations and include a central pushbutton for selecting menu options. In addition, the joysticks have a rotational control feature that allows users to scroll through various options or adjust settings, such as volume intensity.

Link copied to clipboard. Request Quote

Products
Description

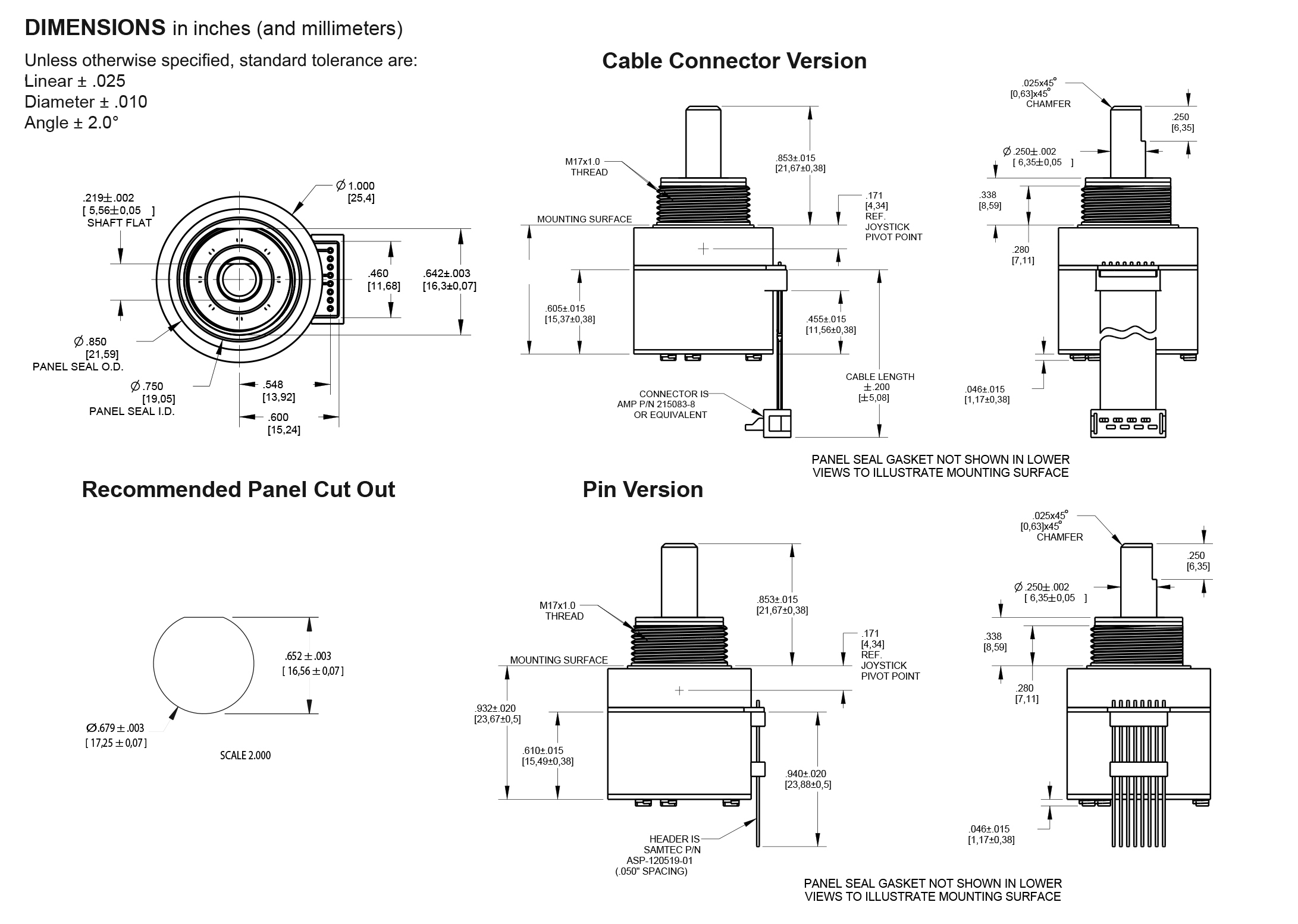

Drawings
Downloads

Product	Encoder Angle of Throw	Joystick Positions	Output	Shaft Diameter: Deck A (in)
NavCoder Multifunction Joystick 60AR00-4-060C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR00-4-P	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR00-8-P	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-020C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-020S	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-040C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-040S	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-060C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-060S	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-065C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-100C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-100S	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-250S	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-4-P	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-8-020C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-8-025C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-8-040C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-8-040S	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-8-060C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-8-060S	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-8-100C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-8-250C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AR18-8-P	8	Quadrature, Digital Voltage	0.25	N/A

Rugged & Sealed (IP67) Joystick integrated rotary encoder and pushbutton
Life Rating (cycles): 1M for rotary and pushbutton, 500K for joystick
Size inches [mm]: 1 [25,4] dia
Depth Behind Panel inches [mm]: 0.950 [24,13]
Resolution: 20 PPR

Rugged & Sealed (IP67) Joystick integrated rotary encoder and pushbutton
Life Rating (cycles): 1M for rotary and pushbutton, 500K for joystick
Size inches [mm]: 1 [25,4] dia
Depth Behind Panel inches [mm]: 0.950 [24,13]
Resolution: 20 PPR
