Series: 60C

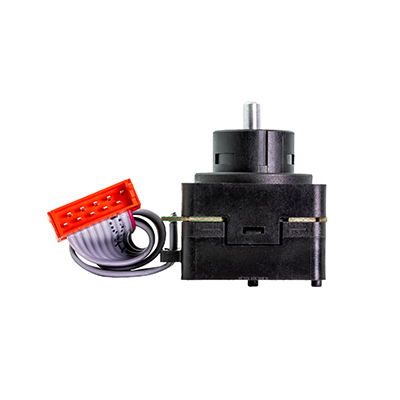

Grayhill's 60C NavCoder Multifunction Joysticks are specialized interface devices designed for navigating on-screen software. They provide 4-way directional control with a central pushbutton on concentric shafts for selecting menu options. In addition, the joysticks have a rotational control feature that allows users to scroll through various options or adjust settings, such as volume intensity.
Link copied to clipboard.
Request Quote
- Products
- Description
- Drawings
- Downloads
| Product | Encoder Angle of Throw | Joystick Positions | Output | Shaft Diameter: Deck A (in) |
|---|---|---|---|---|
|
NavCoder Multifunction Joystick
60C22-M7-4-020C
|
4 | Quadrature, Digital Voltage | 0.585 | 0.125 |
|
NavCoder Multifunction Joystick
60C22-M7-4-020S
|
4 | Quadrature, Digital Voltage | 0.585 | 0.125 |
|
NavCoder Multifunction Joystick
60C22-M7-4-030C
|
4 | Quadrature, Digital Voltage | 0.585 | 0.125 |
|
NavCoder Multifunction Joystick
60C22-M7-4-040C
|
4 | Quadrature, Digital Voltage | 0.585 | 0.125 |
|
NavCoder Multifunction Joystick
60C22-M7-4-040S
|
4 | Quadrature, Digital Voltage | 0.585 | 0.125 |
|
NavCoder Multifunction Joystick
60C22-M7-4-060C
|
4 | Quadrature, Digital Voltage | 0.585 | 0.125 |
|
NavCoder Multifunction Joystick
60C22-M7-4-060S
|
4 | Quadrature, Digital Voltage | 0.585 | 0.125 |
|
NavCoder Multifunction Joystick
60C22-M7-4-120S
|
4 | Quadrature, Digital Voltage | 0.585 | 0.125 |
- Concentric Shafts for joystick and rotary encoder
- Life Rating (cycles): 1,000,000

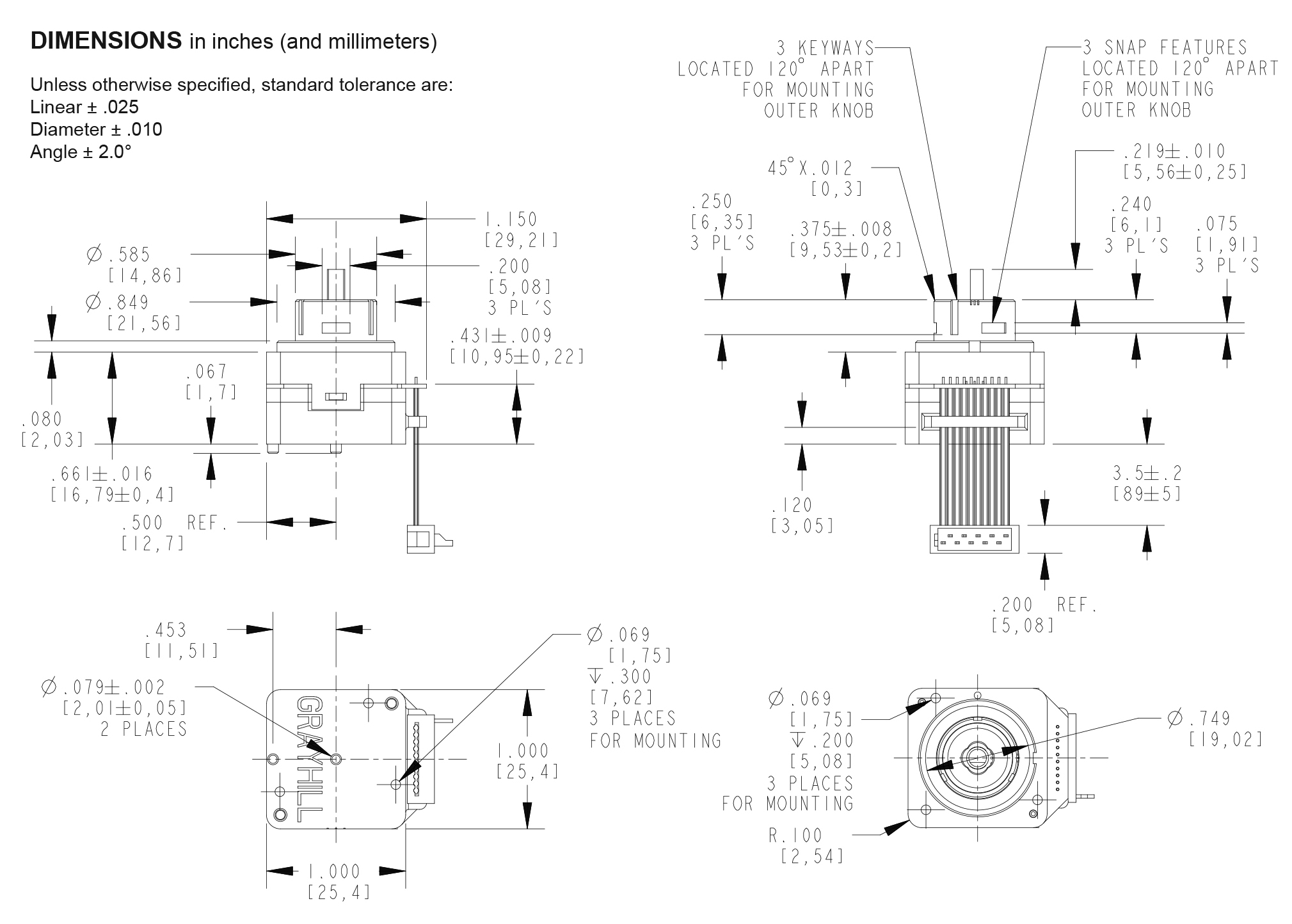

- Size - inches [mm]: 1.150 x 1.000 [29,21 x 25,40]
- Depth Behind Panel - inches [mm]: 0.744 [18,90]
- Resolution: 16 PPR
- Concentric Shafts for joystick and rotary encoder
- Life Rating (cycles): 1,000,000
- Size - inches [mm]: 1.150 x 1.000 [29,21 x 25,40]
- Depth Behind Panel - inches [mm]: 0.744 [18,90]
- Resolution: 16 PPR
