Series: 67B

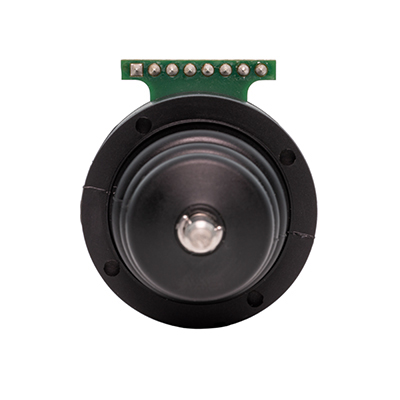

Grayhill's 67B Precision Joysticks offer precise cursor control in situations where other pointing devices may not be practical, such as in test and measurement equipment or medical electronics. These joysticks are also suitable for applications like CNC positioning, industrial and robotic control, work vehicles, and aerial platforms. The Hall-effect sensor magnetically detects the position of another moving part, such as the shaft in a joystick or encoder. This relational position can be output from the device in a variety of formats, including I²C, open collector, or push-pull output. One key benefit of Hall-effect technology is its effectiveness in low-voltage applications, often featuring a sleep mode to conserve power. Grayhill has expanded the use of this technology across several switch types.

Link copied to clipboard. Request Quote

Products
Description

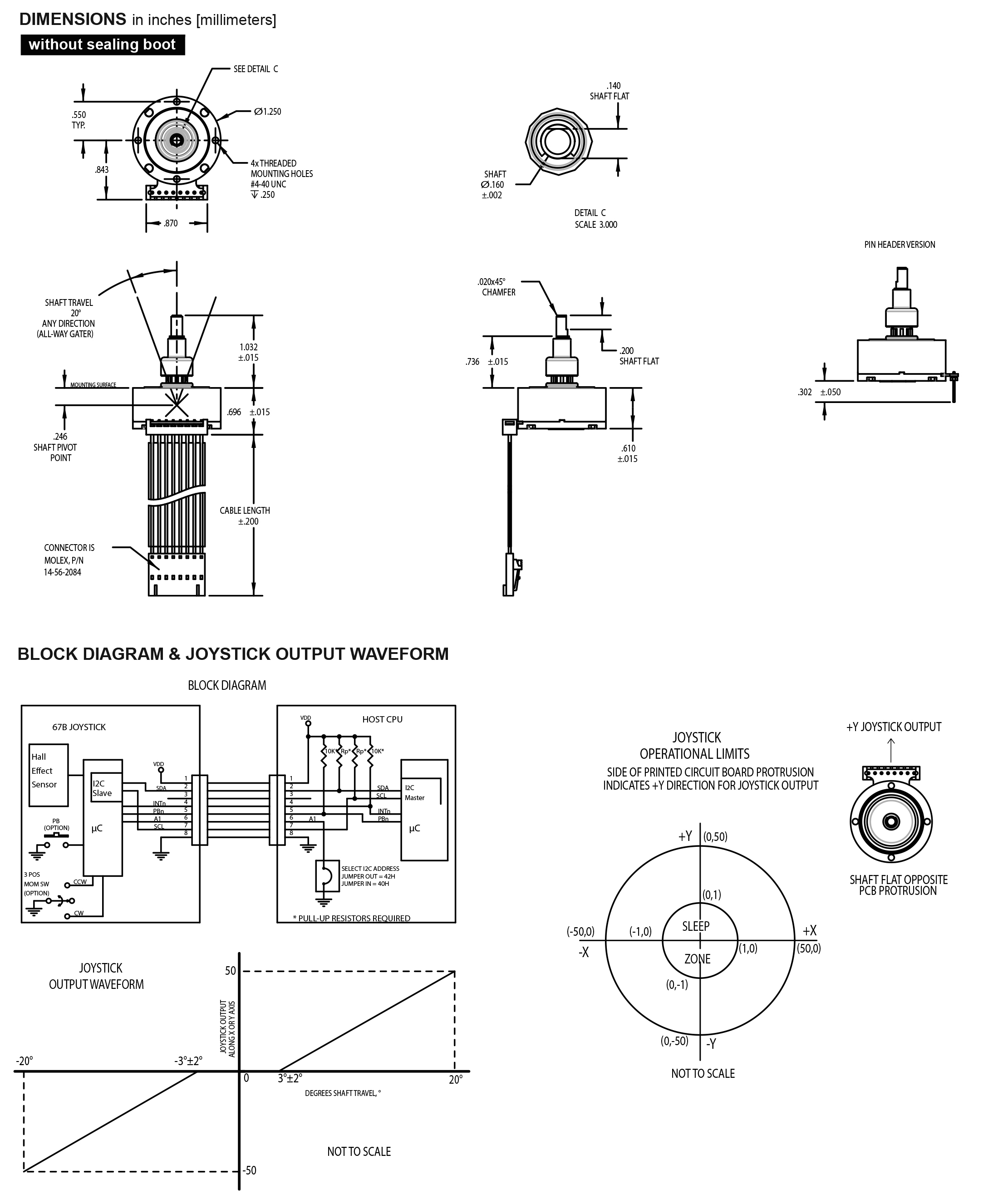

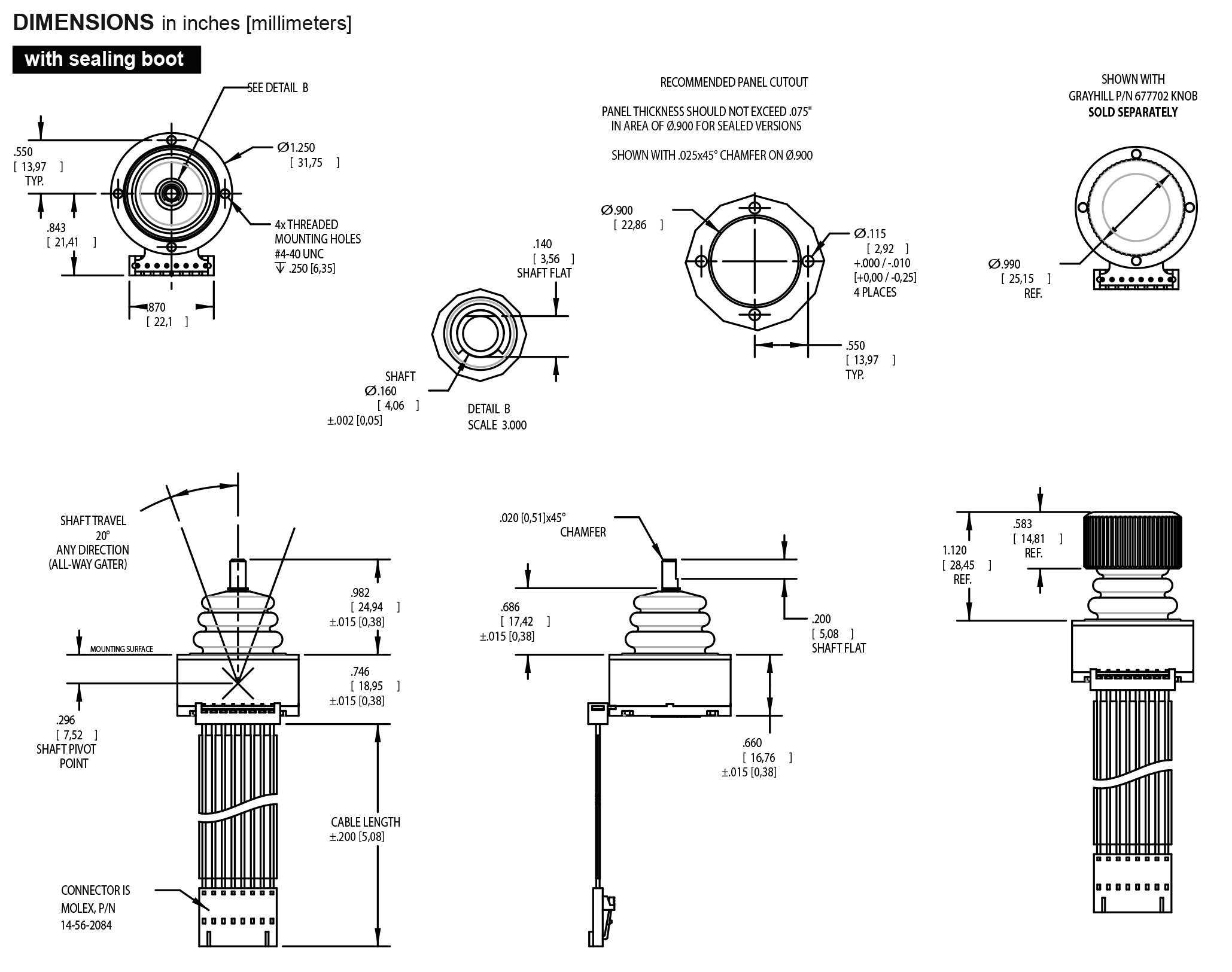

Drawings
Downloads

Product	Encoder Angle of Throw	Joystick Positions	Switch Output	Shaft Diameter: Deck A (in)
Precision Joystick 67B-J2-3C-U-06C	All Way	N/A	0.16	N/A
Precision Joystick 67B-J4-3C-S-02C	All Way	N/A	0.16	N/A
Precision Joystick 67B-J4-3C-S-03C	All Way	N/A	0.16	N/A
Precision Joystick 67B-J4-3C-S-04C	All Way	N/A	0.16	N/A
Precision Joystick 67B-J4-3C-U-04C	All Way	N/A	0.16	N/A
Precision Joystick 67B-JA-3C-S-03C	All Way	N/A	0.16	N/A
Precision Joystick 67B-JA-3C-S-06C	All Way	N/A	0.16	N/A
Precision Joystick 67B-JA-3C-S-P	All Way	N/A	0.16	N/A
Precision Joystick 67B-JA-3C-U-06C	All Way	N/A	0.16	N/A
Precision Joystick 67B-JA-3C-U-P	All Way	N/A	0.16	N/A
Precision Joystick 67B-P2-3C-S-04C	All Way	N/A	0.16	N/A
Precision Joystick 67B-P2-3C-S-06C	All Way	N/A	0.16	N/A
Precision Joystick 67B-P2-3C-U-06C	All Way	N/A	0.16	N/A
Precision Joystick 67B-P4-3C-S-02C	All Way	N/A	0.16	N/A
Precision Joystick 67B-P4-3C-S-03C	All Way	N/A	0.16	N/A
Precision Joystick 67B-P4-3C-S-04C	All Way	N/A	0.16	N/A
Precision Joystick 67B-P4-3C-S-05C	All Way	N/A	0.16	N/A
Precision Joystick 67B-P4-3C-S-P	All Way	N/A	0.16	N/A
Precision Joystick 67B-P4-3C-U-P	All Way	N/A	0.16	N/A
Precision Joystick 67B-PA-3C-S-03C	All Way	N/A	0.16	N/A
Precision Joystick 67B-PA-3C-S-04C	All Way	N/A	0.16	N/A
Precision Joystick 67B-PA-3C-S-06C	All Way	N/A	0.16	N/A
Precision Joystick 67B-PA-3C-S-P	All Way	N/A	0.16	N/A
Precision Joystick 67B-PA-3C-U-04C	All Way	N/A	0.16	N/A
Precision Joystick 67B-PA-3C-U-P	All Way	N/A	0.16	N/A
Precision Joystick 67B-R2-3C-S-04C	All Way	N/A	0.16	N/A
Precision Joystick 67B-R2-3C-U-02C	All Way	N/A	0.16	N/A
Precision Joystick 67B-R2-3C-U-P	All Way	N/A	0.16	N/A
Precision Joystick 67B-R4-3C-S-02C	All Way	N/A	0.16	N/A
Precision Joystick 67B-R4-3C-S-04C	All Way	N/A	0.16	N/A
Precision Joystick 67B-R4-3C-S-06C	All Way	N/A	0.16	N/A
Precision Joystick 67B-RA-3C-S-02C	All Way	N/A	0.16	N/A
Precision Joystick 67B-RA-3C-S-03C	All Way	N/A	0.16	N/A
Precision Joystick 67B-RA-3C-S-04C	All Way	N/A	0.16	N/A
Precision Joystick 67B-RA-3C-S-06C	All Way	N/A	0.16	N/A
Precision Joystick 67B-RA-3C-S-P	All Way	N/A	0.16	N/A
Precision Joystick 67B-RA-3C-U-P	All Way	N/A	0.16	N/A

Center shaft pushbutton & momentary z-axis rotation
Minimal depth required behind panel — just 0.6 inch
Stainless steel shaft for use in harsh environments

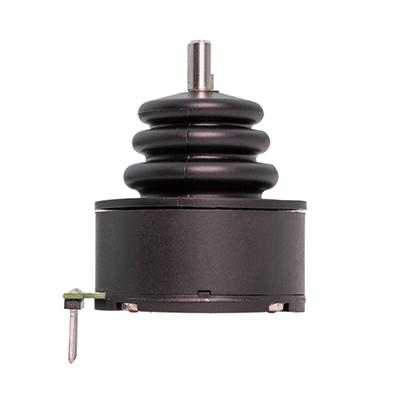

Available with or without knob and sealing boot

Center shaft pushbutton & momentary z-axis rotation
Minimal depth required behind panel — just 0.6 inch
Stainless steel shaft for use in harsh environments
Available with or without knob and sealing boot
