Series: 84
- Grayhill offers a comprehensive range of customizable keypads. Our standard configurations include sealed rubber keypads, vandal-resistant metallic constructions, and options for low-profile or full-travel actuation keypads. We provide various switching technologies, including conductive rubber and metal dome contacts. Options for outputs include matrix output and single pole/common bus. All keypads can be customized with unique legends, and many models feature backlit keys. When integrating a keypad technology into a custom front panel assembly, we can tailor the keypad shape to meet the specific requirements of your application. Customization can include:
- Legends
- Bezel color
- Multiple termination & cabling options
- Custom electronics
- Membrane, dome, or carbon pill switching
- Construction: plastic, silicone rubber, metal, etc. Typical applications include:
- Transportation equipment
- Healthcare equipment
- Fitness equipment
- Avionics
- ATMs and kiosks
- Security systems
- Industrial controls
Link copied to clipboard.
Request Quote
- Products
- Description

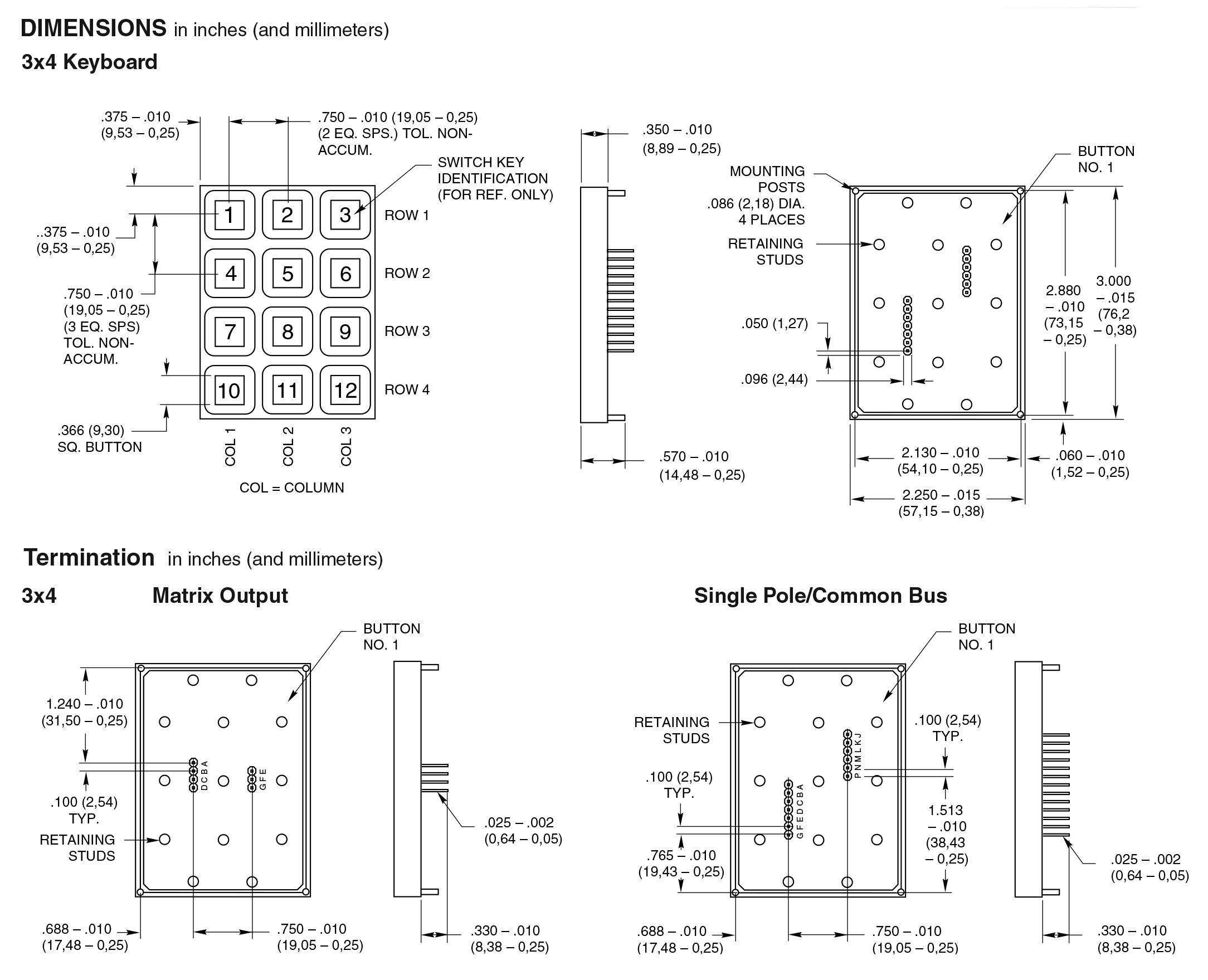

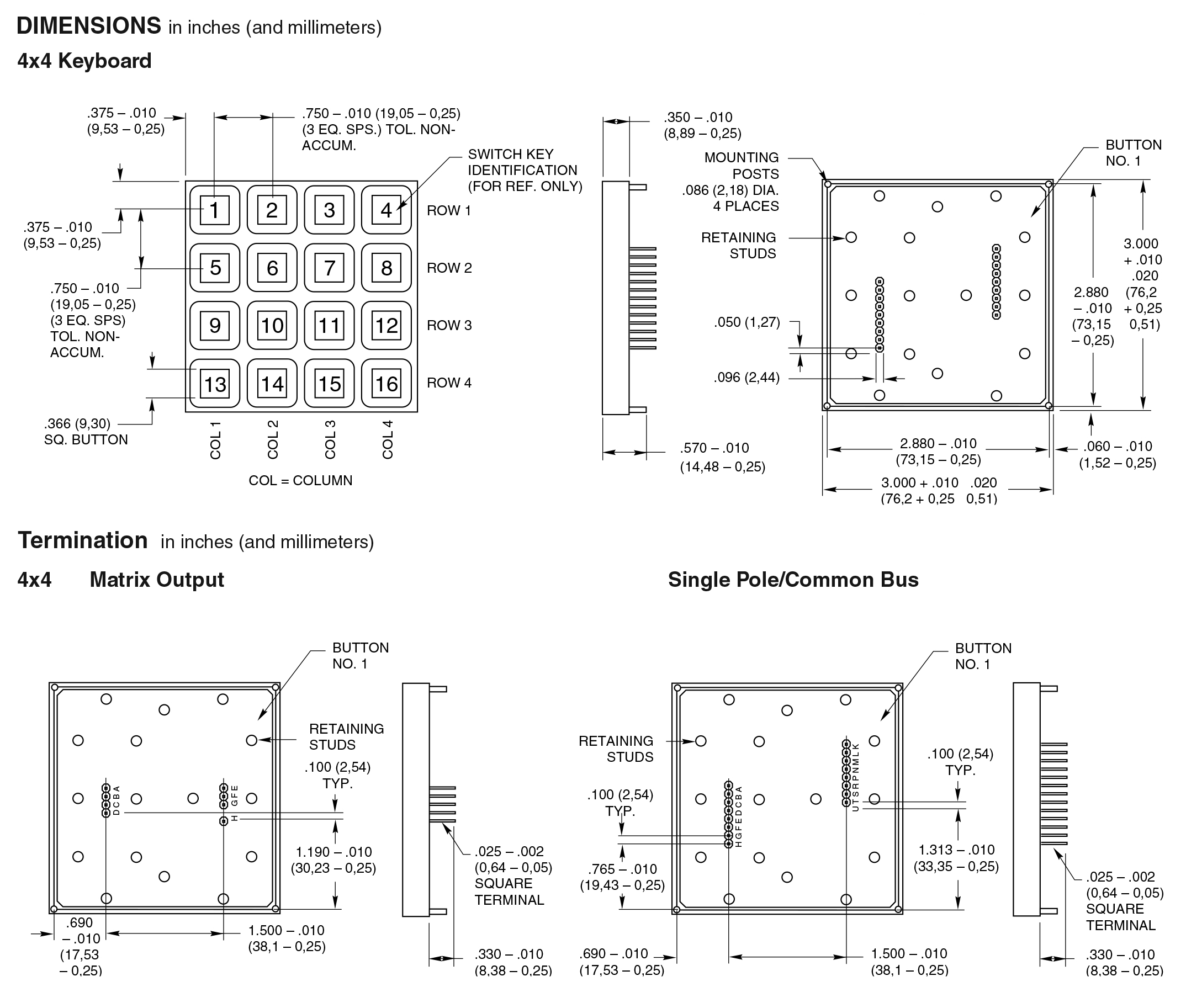

- Drawings
- Downloads

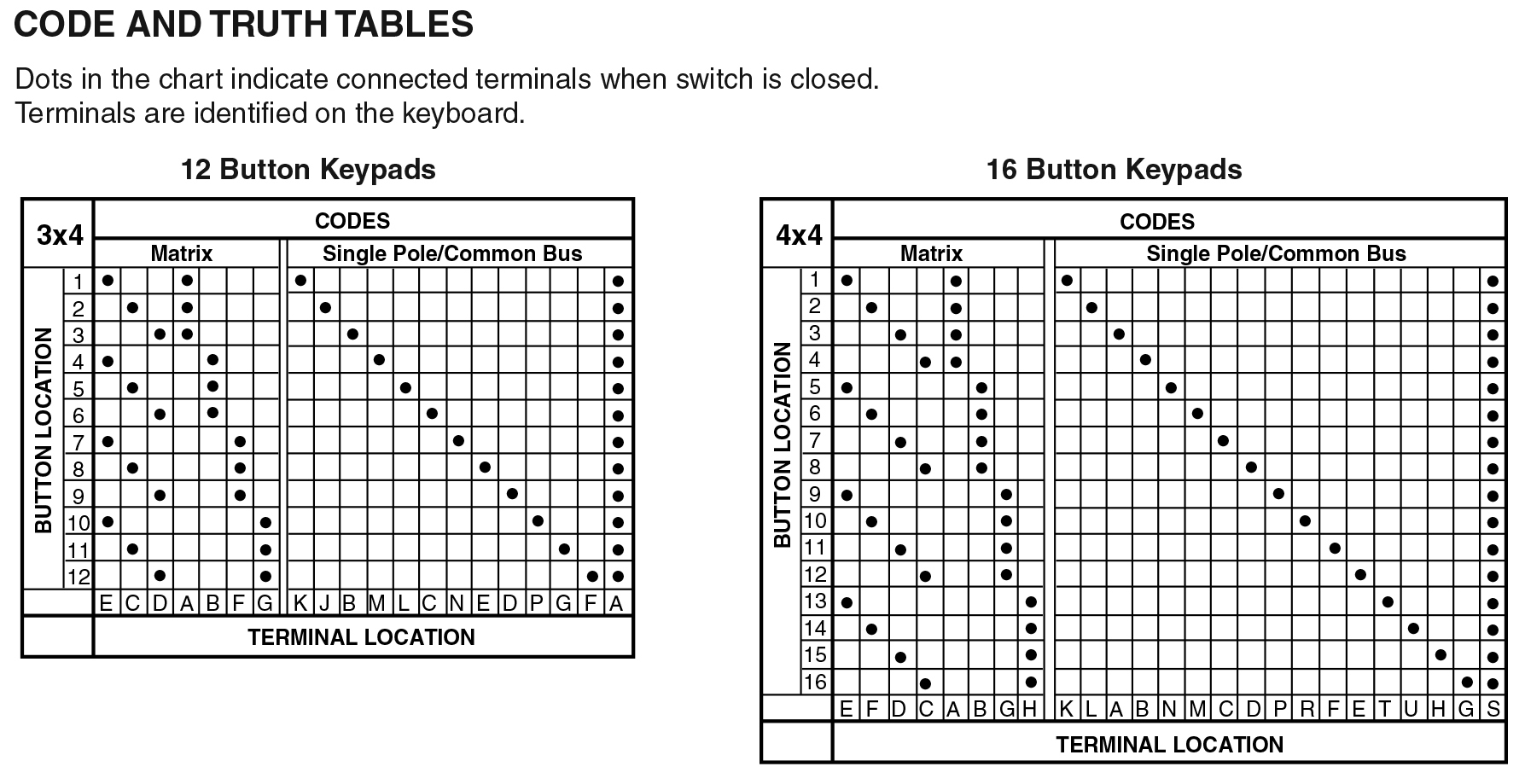

| Product | Configurations | Circuitry | Maximum Switch Rating | Mechanical Life Cycles |
|---|---|---|---|---|
|
Keypad
84AA1-102
|
Single Pole Common Bus | 10 mA | 3M | No |
|
Keypad
84AB1-101
|
Matrix | 10 mA | 3M | No |
|
Keypad
84AB1-102
|
Matrix | 10 mA | 3M | No |
|
Keypad
84AB1-103
|
Matrix | 10 mA | 3M | No |
|
Keypad
84AC1-101
|
Single Pole Common Bus | 10 mA | 3M | No |
|
Keypad
84AC1-102
|
Single Pole Common Bus | 10 mA | 3M | No |
|
Keypad
84AC1-103
|
Single Pole Common Bus | 10 mA | 3M | No |
|
Keypad
84BB1-001
|
Matrix | 10 mA | 3M | No |
|
Keypad
84BB1-002
|
Matrix | 10 mA | 3M | No |
|
Keypad
84BB1-003
|
Matrix | 10 mA | 3M | No |
|
Keypad
84BB1-004
|
Matrix | 10 mA | 3M | No |
|
Keypad
84BB1-005
|
Matrix | 10 mA | 3M | No |
|
Keypad
84BB1-006
|
Matrix | 10 mA | 3M | No |
|
Keypad
84BC1-001
|
Single Pole Common Bus | 10 mA | 3M | No |
|
Keypad
84BC1-002
|
Single Pole Common Bus | 10 mA | 3M | No |
|
Keypad
84BC1-003
|
Single Pole Common Bus | 10 mA | 3M | No |
|
Keypad
84BC1-004
|
Single Pole Common Bus | 10 mA | 3M | No |
|
Keypad
84BC1-005
|
Single Pole Common Bus | 10 mA | 3M | No |
|
Keypad
84BC1-006
|
Single Pole Common Bus | 10 mA | 3M | No |
- Life Rating (Cycles): 3,000,000
- Array: 3x4, 4x4
- Buttons: 12, 16
- Life Rating (Cycles): 3,000,000
- Array: 3x4, 4x4
- Buttons: 12, 16
