Series: 84LS

Grayhill offers a comprehensive range of customizable keypads. Our standard configurations include sealed rubber keypads, vandal-resistant metallic constructions, and options for low-profile or full-travel actuation keypads. We provide various switching technologies, including conductive rubber and metal dome contacts. Options for outputs include matrix output and single pole/common bus. All keypads can be customized with unique legends, and many models feature backlit keys. When integrating a keypad technology into a custom front panel assembly, we can tailor the keypad shape to meet the specific requirements of your application. Customization can include:
Legends
Bezel color
Multiple termination & cabling options
Custom electronics
Membrane, dome, or carbon pill switching
Construction: plastic, silicone rubber, metal, etc. Typical applications include:
Transportation equipment
Healthcare equipment
Fitness equipment
Avionics
ATMs and kiosks
Security systems
Industrial controls

Products
Description

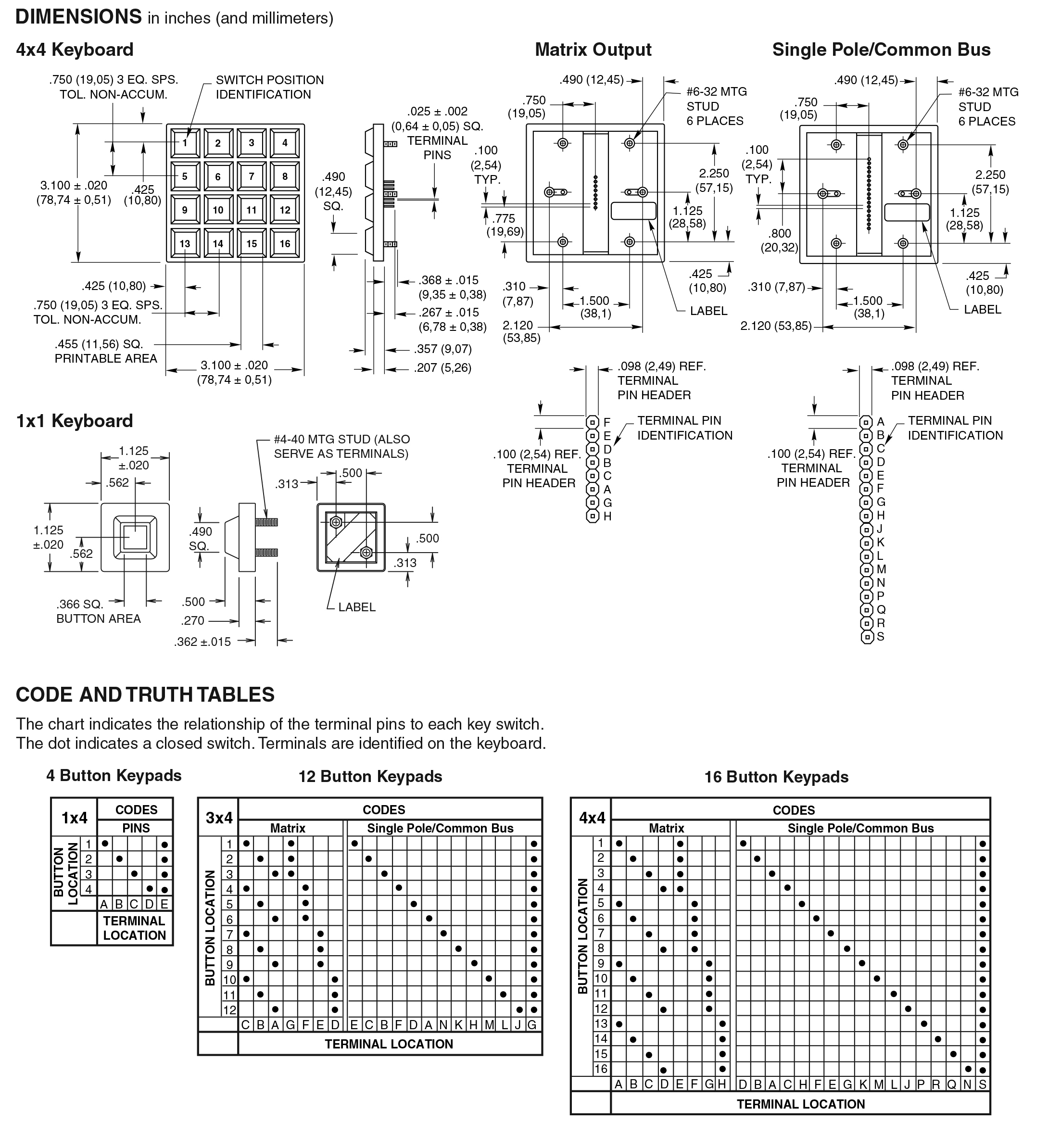

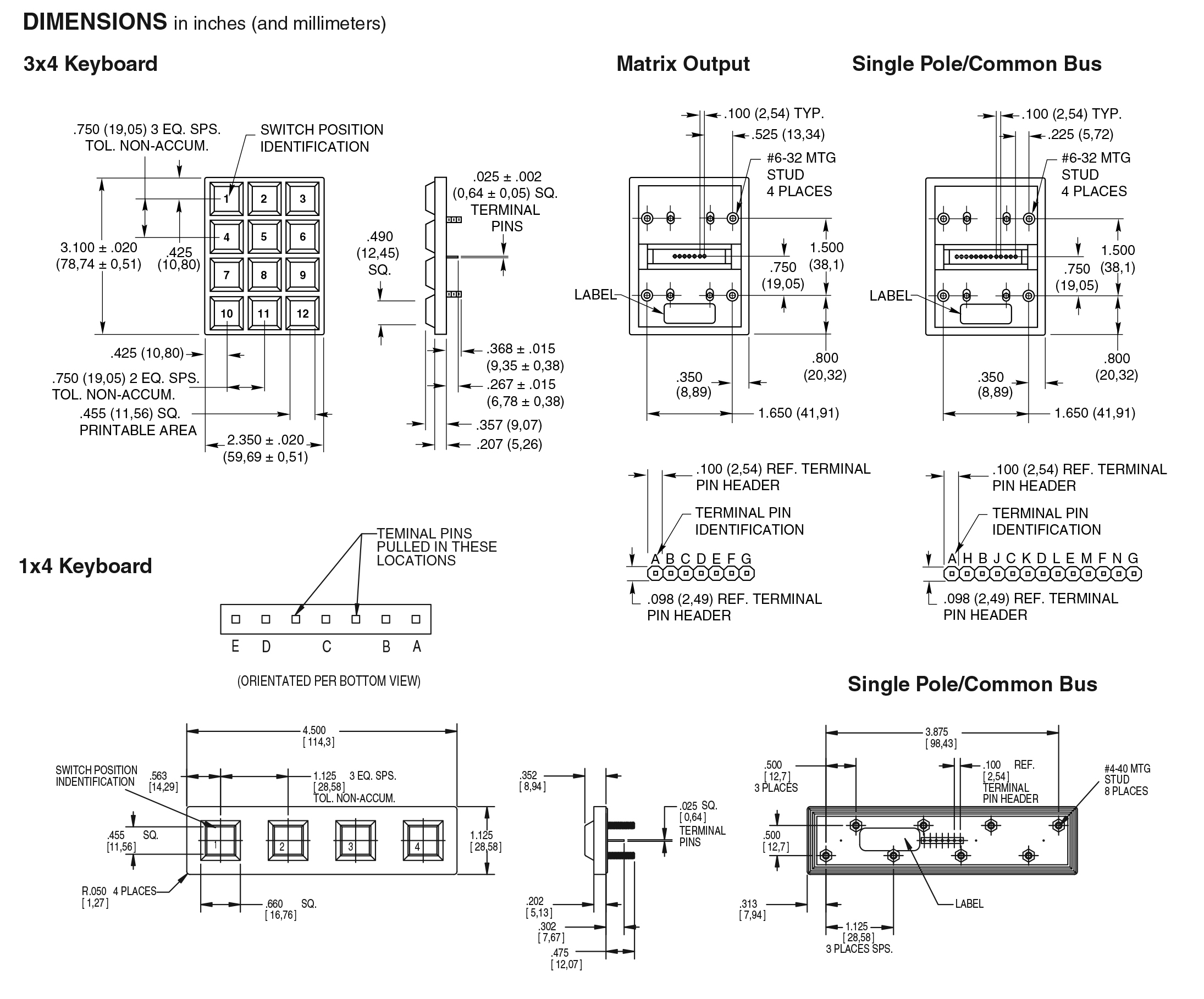

Drawings
Downloads

Product	Configurations	Circuitry	Maximum Switch Rating	Mechanical Life Cycles
Keypad 84LS-AB2-112	Matrix	10 mA	3M	Yes
Keypad 84LS-AB2-112-N	Matrix	10 mA	3M	Yes
Keypad 84LS-AB2-113	Matrix	10 mA	3M	Yes
Keypad 84LS-AB2-113-N	Matrix	10 mA	3M	Yes
Keypad 84LS-AC2-112	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LS-AC2-112-N	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LS-AC2-113	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LS-AC2-113-N	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LS-BB2-014	Matrix	10 mA	3M	Yes
Keypad 84LS-BB2-014-N	Matrix	10 mA	3M	Yes
Keypad 84LS-BB2-016	Matrix	10 mA	3M	Yes
Keypad 84LS-BB2-016-N	Matrix	10 mA	3M	Yes
Keypad 84LS-BC2-014	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LS-BC2-014-N	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LS-BC2-016	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LS-BC2-016-N	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LS-FC2-301	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LS-FC2-302-N	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LSN-AB2-112	Matrix	10 mA	3M	Yes
Keypad 84LSN-AB2-112-N	Matrix	10 mA	3M	Yes
Keypad 84LSN-AB2-113	Matrix	10 mA	3M	Yes
Keypad 84LSN-AB2-113-N	Matrix	10 mA	3M	Yes
Keypad 84LSN-AC2-112	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LSN-AC2-112-N	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LSN-AC2-113	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LSN-AC2-113-N	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LSN-BB2-014-N	Matrix	10 mA	3M	Yes
Keypad 84LSN-BB2-016	Matrix	10 mA	3M	Yes
Keypad 84LSN-BB2-016-N	Matrix	10 mA	3M	Yes
Keypad 84LSN-BC2-014	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LSN-BC2-014-N	Single Pole Common Bus	10 mA	3M	Yes
Keypad 84LSN-BC2-016	Single Pole Common Bus	10 mA	3M	Yes

Sealed Construction
Life Rating (Cycles): 3,000,000
Array: Single Button, 1x4, 3x4, 4x4
Buttons: 1, 4, 12, 16

Sealed Construction
Life Rating (Cycles): 3,000,000
Array: Single Button, 1x4, 3x4, 4x4
Buttons: 1, 4, 12, 16
