Series: 86

Grayhill offers a comprehensive range of customizable keypads. Our standard configurations include sealed rubber keypads, vandal-resistant metallic constructions, and options for low-profile or full-travel actuation keypads. We provide various switching technologies, including conductive rubber and metal dome contacts. Options for outputs include matrix output and single pole/common bus. All keypads can be customized with unique legends, and many models feature backlit keys. When integrating a keypad technology into a custom front panel assembly, we can tailor the keypad shape to meet the specific requirements of your application. Customization can include:
Legends
Bezel color
Multiple termination & cabling options
Custom electronics
Membrane, dome, or carbon pill switching
Construction: plastic, silicone rubber, metal, etc. Typical applications include:
Transportation equipment
Healthcare equipment
Fitness equipment
Avionics
ATMs and kiosks
Security systems
Industrial controls

Products
Description

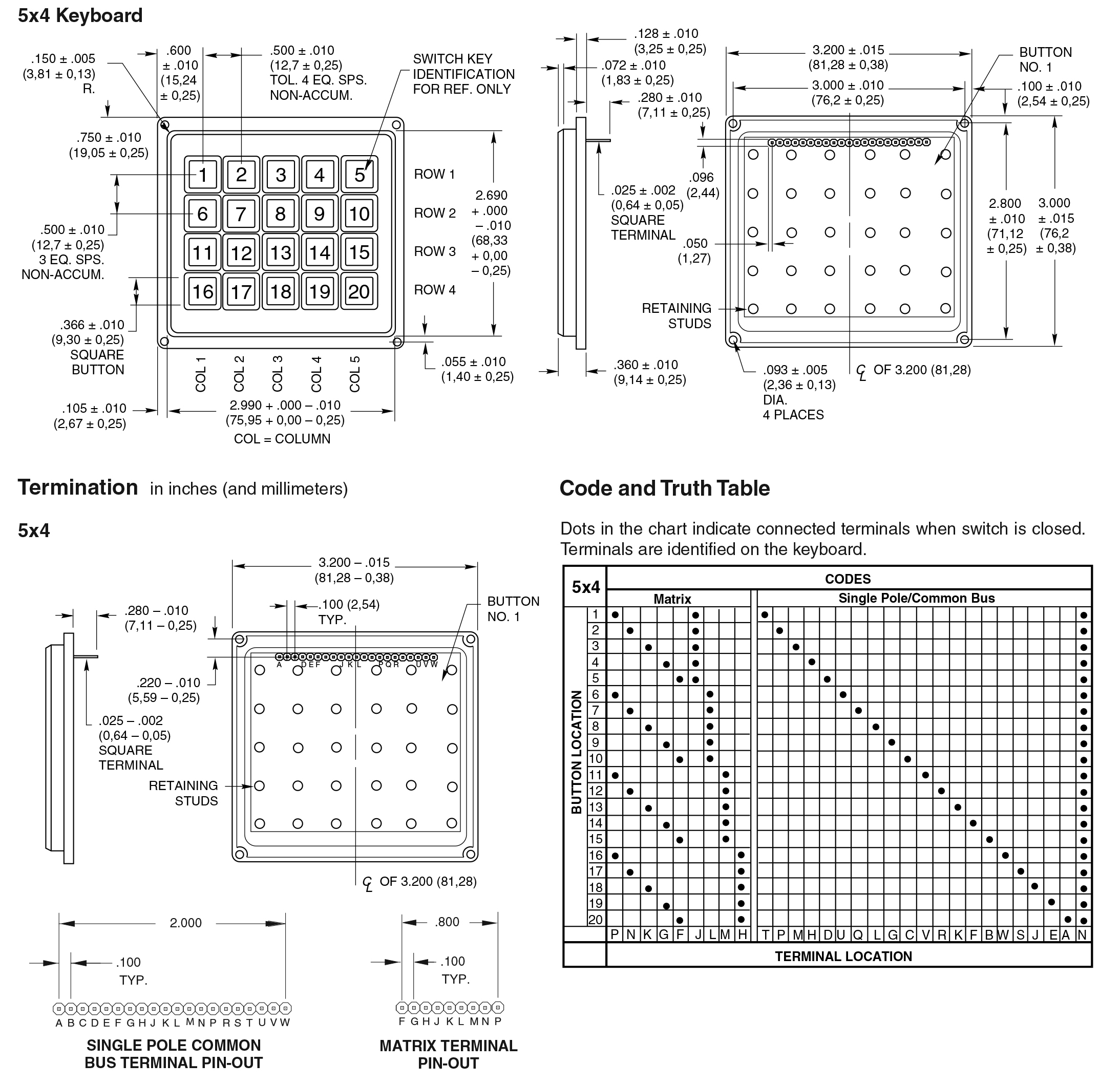

Drawings
Downloads

Product	Configurations	Circuitry	Maximum Switch Rating	Mechanical Life Cycles
Keypad 86AA2-102	Matrix	10 mA	3M	No
Keypad 86AB2-101	Matrix	10 mA	3M	No
Keypad 86AB2-102	Matrix	10 mA	3M	No
Keypad 86AB2-103	Matrix	10 mA	3M	No
Keypad 86AC2-101	Single Pole Common Bus	10 mA	3M	No
Keypad 86AC2-102	Single Pole Common Bus	10 mA	3M	No
Keypad 86AC2-103	Single Pole Common Bus	10 mA	3M	No
Keypad 86BA2-001	2 of 8 Code	10 mA	3M	No
Keypad 86BB2-001	Matrix	10 mA	3M	No
Keypad 86BB2-002	Matrix	10 mA	3M	No
Keypad 86BB2-003	Matrix	10 mA	3M	No
Keypad 86BB2-004	Matrix	10 mA	3M	No
Keypad 86BB2-005	Matrix	10 mA	3M	No
Keypad 86BB2-006	Matrix	10 mA	3M	No
Keypad 86BC2-001	Single Pole Common Bus	10 mA	3M	No
Keypad 86BC2-002	Single Pole Common Bus	10 mA	3M	No
Keypad 86BC2-003	Single Pole Common Bus	10 mA	3M	No
Keypad 86BC2-004	Single Pole Common Bus	10 mA	3M	No
Keypad 86BC2-005	Single Pole Common Bus	10 mA	3M	No
Keypad 86BC2-006	Single Pole Common Bus	10 mA	3M	No
Keypad 86JB2-201	Matrix	10 mA	3M	No
Keypad 86JB2-202	Matrix	10 mA	3M	No
Keypad 86JB2-203	Matrix	10 mA	3M	No
Keypad 86JC2-201	Single Pole Common Bus	10 mA	3M	No
Keypad 86JC2-202	Single Pole Common Bus	10 mA	3M	No
Keypad 86JC2-203	Single Pole Common Bus	10 mA	3M	No

Flange Mounted
Life Rating (Cycles): 3,000,000
Array: 3x4, 4x4, 5x4
Buttons: 12, 16, 20


Flange Mounted
Life Rating (Cycles): 3,000,000
Array: 3x4, 4x4, 5x4
Buttons: 12, 16, 20


Products

	Keypad 86AA2-102 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86AB2-101 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86AB2-102 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86AB2-103 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86AC2-101 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86AC2-102 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86AC2-103 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BA2-001 Configurations: 2 of 8 Code Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BB2-001 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BB2-002 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BB2-003 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BB2-004 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BB2-005 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BB2-006 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BC2-001 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BC2-002 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BC2-003 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BC2-004 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BC2-005 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86BC2-006 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86JB2-201 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86JB2-202 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86JB2-203 Configurations: Matrix Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86JC2-201 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86JC2-202 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
	Keypad 86JC2-203 Configurations: Single Pole Common Bus Circuitry: 10 mA Maximum Switch Rating: 3M Mechanical Life Cycles: No
