Series: 23

Grayhill’s 23 Pushbutton switches are a reliable and durable solution for many applications. Our pushbuttons feature various contact mechanisms, circuitry, mounting, and termination options, making it easy to find a model that suits your needs.  Typical applications for our pushbutton switches include security systems, industrial manufacturing equipment, casino gaming, audio/video equipment, avionics, fitness equipment, and test and measurement equipment. If you require customization, we can provide tailored options. This includes adjusting the actuation force and travel distance and offering specific termination and cabling solutions. Our flexibility allows you to create the ideal pushbutton switch for your particular use case. Additionally, we offer a range of customizations such as custom caps and legends, unique detents (clicks) and tactile feedback, multiple termination and cabling options, custom electronics, and integration into a Grayhill custom front panel assembly. With these options, you can ensure that your pushbutton switches meet your exact specifications and requirements.

Link copied to clipboard. Request Quote
  • Products
  • Description

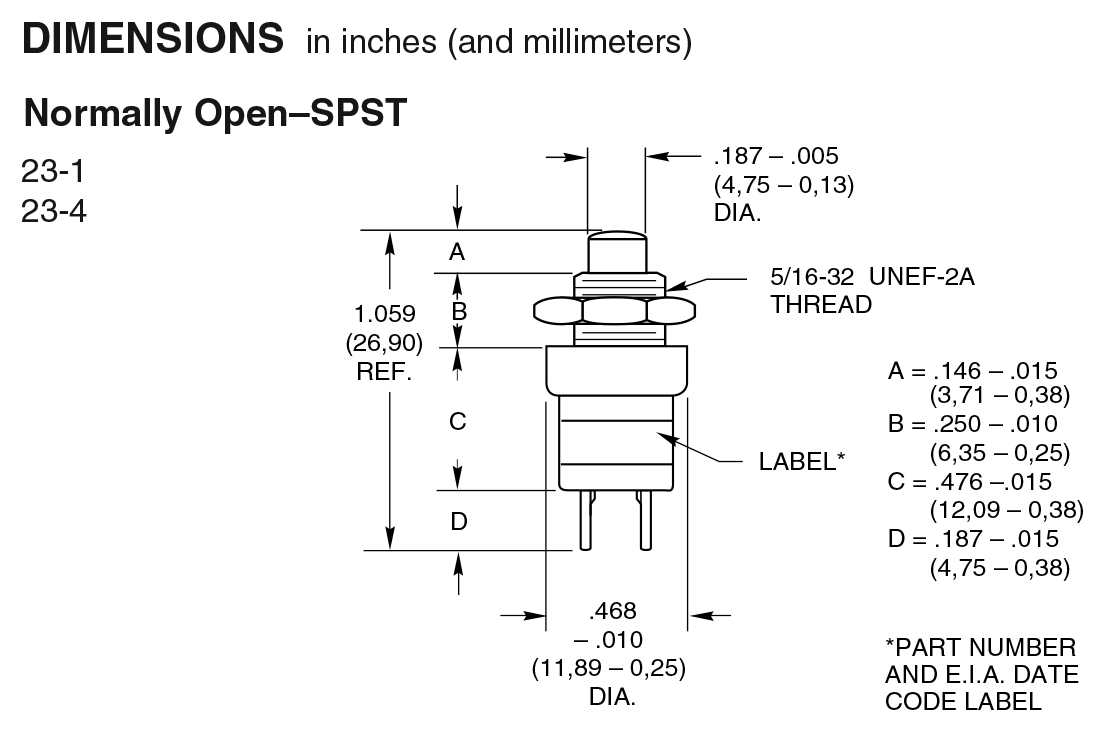

  • Drawings
  • Downloads
Product Contact Type Circuitry Max Switch Rating Mechanical Life Cycles
23-1
Pushbutton 23-1
SPST - N.O. 250 mA 100000 Panel
23-1-E
Pushbutton 23-1-E
SPST - N.O. 250 mA 100000 Panel
23-4
Pushbutton 23-4
SPST - N.O. 250 mA 100000 Panel
23-4-E
Pushbutton 23-4-E
SPST - N.O. 250 mA 100000 Panel
  • Momentary Contact
  • Electrical Rating: 1/4 Amps at 115 Vac
  • Circuitry: SPST
  • Termination: Solder Lug
  • Behind Panel Depth Inches [mm]:0.476 [12,09]
  • Life Rating (cycles): 100,000
  • Momentary Contact
  • Electrical Rating: 1/4 Amps at 115 Vac
  • Circuitry: SPST
  • Termination: Solder Lug
  • Behind Panel Depth Inches [mm]:0.476 [12,09]
  • Life Rating (cycles): 100,000
Products
23-1
Pushbutton 23-1
Contact Type: SPST - N.O.
Circuitry: 250 mA
Max Switch Rating: 100000
Mechanical Life Cycles: Panel
23-1-E
Pushbutton 23-1-E
Contact Type: SPST - N.O.
Circuitry: 250 mA
Max Switch Rating: 100000
Mechanical Life Cycles: Panel
23-4
Pushbutton 23-4
Contact Type: SPST - N.O.
Circuitry: 250 mA
Max Switch Rating: 100000
Mechanical Life Cycles: Panel
23-4-E
Pushbutton 23-4-E
Contact Type: SPST - N.O.
Circuitry: 250 mA
Max Switch Rating: 100000
Mechanical Life Cycles: Panel
