Series: 38BT-BC
Grayhill’s miniature vertical PC-mount 38BM Pushbutton switches are a reliable, durable solution for many applications. Our pushbuttons feature various contact mechanisms, circuitry, mounting, and termination options, making it easy to find a model that suits your needs. Typical applications for our pushbutton switches include security systems, industrial manufacturing equipment, casino gaming, audio/video equipment, avionics, fitness equipment, and test and measurement equipment. If you require customization, we can provide tailored options. This includes adjusting the actuation force and travel distance and offering specific termination and cabling solutions. Our flexibility allows you to create the ideal pushbutton switch for your use case. Additionally, we offer a range of customizations such as custom caps and legends, unique detents (clicks) and tactile feedback, multiple termination and cabling options, custom electronics, and integration into a Grayhill custom front panel assembly. With these options, you can ensure that your pushbutton switches meet your exact specifications and requirements.
Link copied to clipboard.
Request Quote
- Products
- Description

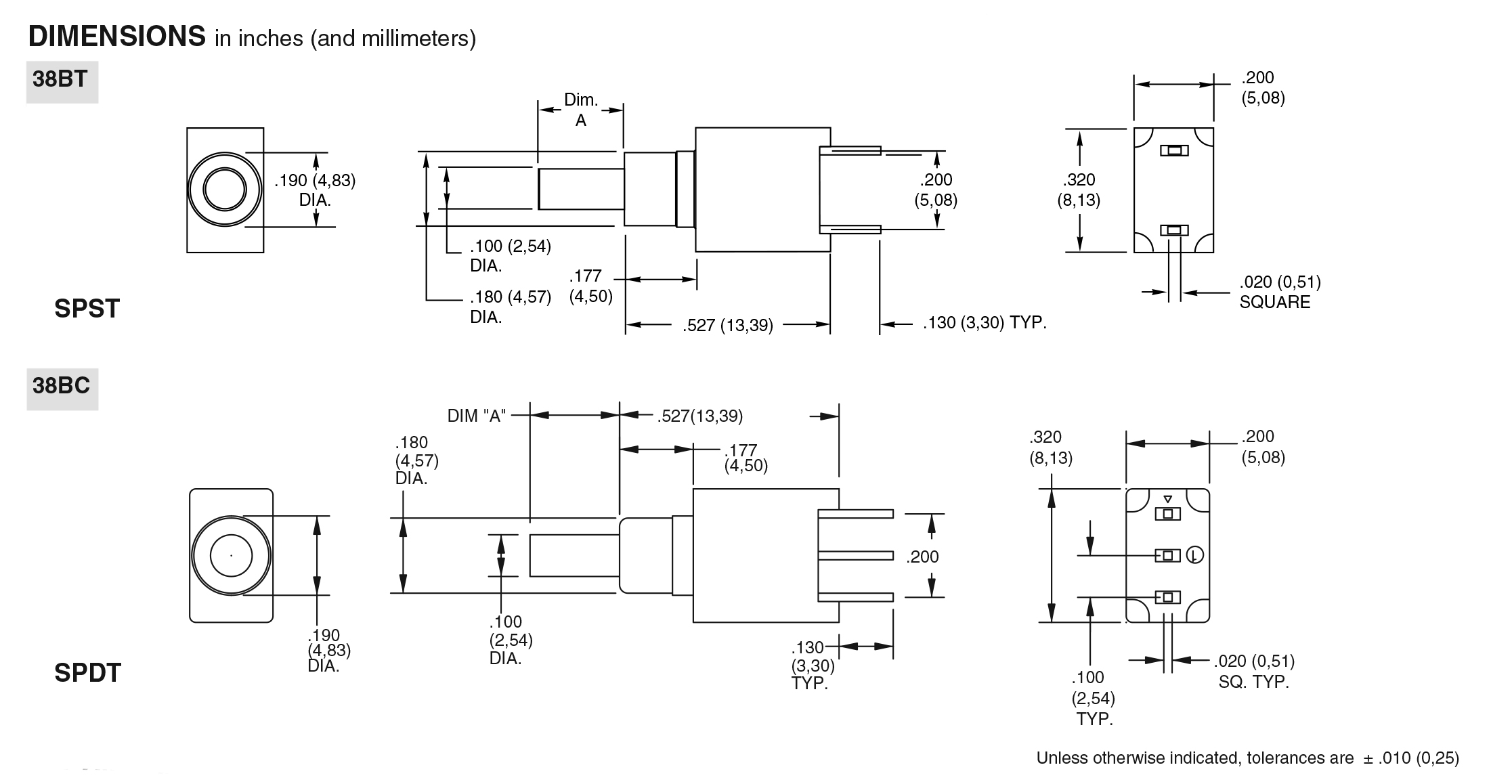

- Drawings
- Downloads
| Product | Contact Type | Circuitry | Max Switch Rating | Mechanical Life Cycles |
|---|---|---|---|---|
|
Pushbutton
38BC-0-H-1-S
|
SPDT - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BC-0-H-3-S
|
SPDT - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BC-0-V-1-S
|
SPDT - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BC-0-V-3-S
|
SPDT - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BC-4-H-1-S
|
SPDT - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BC-4-H-3-S
|
SPDT - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BC-4-H-4-S
|
SPDT - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BC-4-V-1-S
|
SPDT - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BC-4-V-2-S
|
SPDT - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BC-4-V-3-S
|
SPDT - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BC-4-V-4-S
|
SPDT - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BC0-550
|
SPDT - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BC1-550
|
SPDT - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BC2-550
|
SPDT - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BT-0-V-1-N
|
SPST - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BT-0-V-1-S
|
SPST - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BT-0-V-2-N
|
SPST - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BT-0-V-2-S
|
SPST - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BT-0-V-3-N
|
SPST - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BT-0-V-3-S
|
SPST - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BT-0-V-4-N
|
SPST - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BT-0-V-4-S
|
SPST - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BT-4-V-1-N
|
SPST - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BT-4-V-1-S
|
SPST - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BT-4-V-2-N
|
SPST - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BT-4-V-2-S
|
SPST - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BT-4-V-3-N
|
SPST - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BT-4-V-3-S
|
SPST - N.O. | 1 Amp | 80000 | PC |
|
Pushbutton
38BT-4-V-4-N
|
SPST - N.O. | 0.4 VA | 80000 | PC |
|
Pushbutton
38BT-4-V-4-S
|
SPST - N.O. | 0.4 VA | 80000 | PC |
- Miniature Vertical PC Mount
- Electrical Rating: 1 Amp at 120 Vac or Vdc
- Circuitry: SPST, SPDT
- Termination: Thru-hole
- Life Rating (cycles): 80,000
- Miniature Vertical PC Mount
- Electrical Rating: 1 Amp at 120 Vac or Vdc
- Circuitry: SPST, SPDT
- Termination: Thru-hole
- Life Rating (cycles): 80,000
Products
|
|
Pushbutton
38BC-0-H-1-S
Contact Type: SPDT - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC-0-H-3-S
Contact Type: SPDT - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC-0-V-1-S
Contact Type: SPDT - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC-0-V-3-S
Contact Type: SPDT - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC-4-H-1-S
Contact Type: SPDT - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC-4-H-3-S
Contact Type: SPDT - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC-4-H-4-S
Contact Type: SPDT - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC-4-V-1-S
Contact Type: SPDT - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC-4-V-2-S
Contact Type: SPDT - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC-4-V-3-S
Contact Type: SPDT - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC-4-V-4-S
Contact Type: SPDT - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC0-550
Contact Type: SPDT - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC1-550
Contact Type: SPDT - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BC2-550
Contact Type: SPDT - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-0-V-1-N
Contact Type: SPST - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-0-V-1-S
Contact Type: SPST - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-0-V-2-N
Contact Type: SPST - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-0-V-2-S
Contact Type: SPST - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-0-V-3-N
Contact Type: SPST - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-0-V-3-S
Contact Type: SPST - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-0-V-4-N
Contact Type: SPST - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-0-V-4-S
Contact Type: SPST - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-4-V-1-N
Contact Type: SPST - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-4-V-1-S
Contact Type: SPST - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-4-V-2-N
Contact Type: SPST - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-4-V-2-S
Contact Type: SPST - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-4-V-3-N
Contact Type: SPST - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-4-V-3-S
Contact Type: SPST - N.O. Circuitry: 1 Amp Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-4-V-4-N
Contact Type: SPST - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38BT-4-V-4-S
Contact Type: SPST - N.O. Circuitry: 0.4 VA Max Switch Rating: 80000 Mechanical Life Cycles: PC |
