Series: 38D
Grayhill’s 38D Pushbutton switches with alternate action are a reliable, durable solution for many applications. Our pushbuttons feature various contact mechanisms, circuitry, mounting, and termination options, making it easy to find a model that suits your needs. Typical applications for our pushbutton switches include security systems, industrial manufacturing equipment, casino gaming, audio/video equipment, avionics, fitness equipment, and test and measurement equipment. If you require customization, we can provide tailored options. This includes adjusting the actuation force and travel distance and offering specific termination and cabling solutions. Our flexibility allows you to create the ideal pushbutton switch for your use case. Additionally, we offer a range of customizations such as custom caps and legends, unique detents (clicks) and tactile feedback, multiple termination and cabling options, custom electronics, and integration into a Grayhill custom front panel assembly. With these options, you can ensure that your pushbutton switches meet your exact specifications and requirements.
Link copied to clipboard.
Request Quote
- Products
- Description
- Drawings
- Downloads
| Product | Contact Type | Circuitry | Max Switch Rating | Mechanical Life Cycles |
|---|---|---|---|---|
|
Pushbutton
38D3P11B10M7GT
|
3PDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38D3P12B11M2QT
|
3PDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38D3P14BDM1QT
|
3PDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38D4P11B10M2RT
|
4PDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DDP11B11M1QT
|
DPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DDP11B20M6QT
|
DPDT - N.C. | 6 Amp | 50000 | PC |
|
Pushbutton
38DDP12B11M1QT
|
DPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DDP12B11M1RT
|
DPDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DSP11B10M1GT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DSP11B10M1QT
|
SPDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DSP11B10M1RT
|
SPDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DSP11B10M6QT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DSP11B10V2RT
|
SPDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DSP11B10W3QT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DSP11B11M1QT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DSP11B11M2QT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DSP11B11M6QT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DSP11B11V2RT
|
SPDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DSP11B20M2QT
|
SPDT - N.C. | 6 Amp | 50000 | PC |
|
Pushbutton
38DSP11B20V2RT
|
SPDT - N.C. | 0.4 VA | 50000 | PC |
|
Pushbutton
38DSP11B21V2RT
|
SPDT - N.C. | 0.4 VA | 50000 | PC |
|
Pushbutton
38DSP11BDM1QT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DSP11BDV2RT
|
SPDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DSP12B10V2RT
|
SPDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DSP12B11M1GT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DSP12B11M1QT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DSP12B11M1RT
|
SPDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DSP12B11V2RT
|
SPDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DSP12B20V2RT
|
SPDT - N.C. | 0.4 VA | 50000 | PC |
|
Pushbutton
38DSP12B21V2RT
|
SPDT - N.C. | 0.4 VA | 50000 | PC |
|
Pushbutton
38DSP12BDV2RT
|
SPDT - N.C. | 0.4 VA | 50000 | Panel |
|
Pushbutton
38DSP13B11M2QT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
|
Pushbutton
38DSP14BDM1QT
|
SPDT - N.C. | 6 Amp | 50000 | Panel |
- UL Recognized
- Alternate action
- Electrical Rating: 3 Amps at 250 Vac
- Circuitry: SPDT, DPDT, 3PDT, 4PDT
- Termination: Solder, PC mount, wire wrap

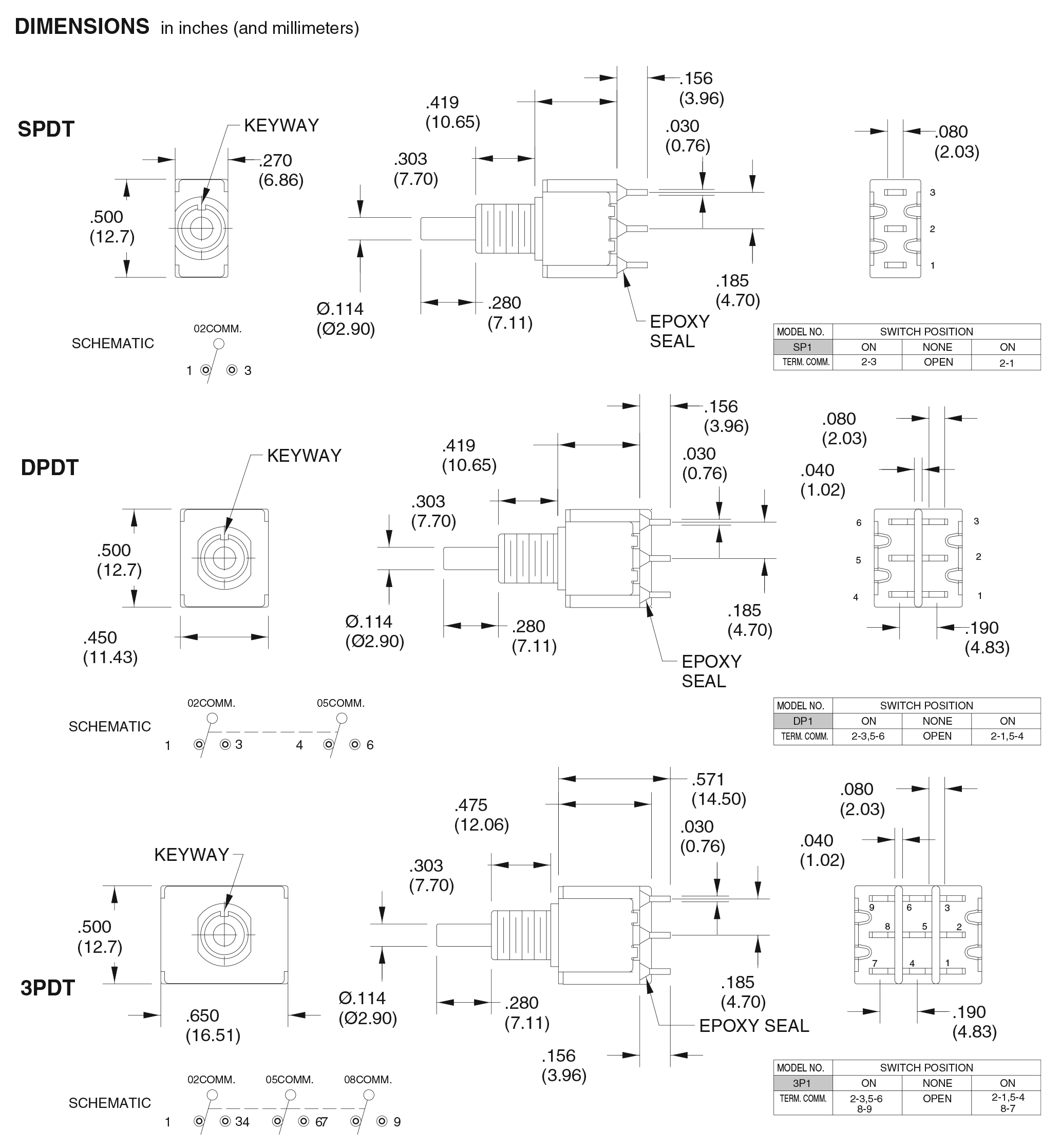

- Behind Panel Depth Inches [mm]: 0.419 [10,65] to 0.475 [12,06]
- Life Rating (cycles): 50,016
- UL Recognized
- Alternate action
- Electrical Rating: 3 Amps at 250 Vac
- Circuitry: SPDT, DPDT, 3PDT, 4PDT
- Termination: Solder, PC mount, wire wrap
- Behind Panel Depth Inches [mm]: 0.419 [10,65] to 0.475 [12,06]
- Life Rating (cycles): 50,016
Products
|
|
Pushbutton
38D3P11B10M7GT
Contact Type: 3PDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38D3P12B11M2QT
Contact Type: 3PDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38D3P14BDM1QT
Contact Type: 3PDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38D4P11B10M2RT
Contact Type: 4PDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DDP11B11M1QT
Contact Type: DPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DDP11B20M6QT
Contact Type: DPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38DDP12B11M1QT
Contact Type: DPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DDP12B11M1RT
Contact Type: DPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B10M1GT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B10M1QT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B10M1RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B10M6QT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B10V2RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B10W3QT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B11M1QT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B11M2QT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B11M6QT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B11V2RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11B20M2QT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38DSP11B20V2RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38DSP11B21V2RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38DSP11BDM1QT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP11BDV2RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP12B10V2RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP12B11M1GT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP12B11M1QT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP12B11M1RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP12B11V2RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP12B20V2RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38DSP12B21V2RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: PC |
|
|
Pushbutton
38DSP12BDV2RT
Contact Type: SPDT - N.C. Circuitry: 0.4 VA Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP13B11M2QT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
|
|
Pushbutton
38DSP14BDM1QT
Contact Type: SPDT - N.C. Circuitry: 6 Amp Max Switch Rating: 50000 Mechanical Life Cycles: Panel |
