Series: 39-X

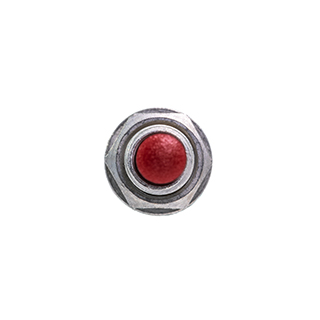

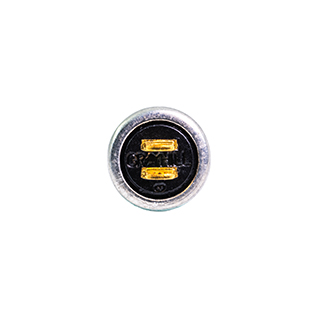

Grayhill’s 39-X Pushbutton switches with shaft and panel seal are a reliable, durable solution for many applications. Our pushbuttons feature various contact mechanisms, circuitry, mounting, and termination options, making it easy to find a model that suits your needs. Typical applications for our pushbutton switches include security systems, industrial manufacturing equipment, casino gaming, audio/video equipment, avionics, fitness equipment, and test and measurement equipment. If you require customization, we can provide tailored options. This includes adjusting the actuation force and travel distance and offering specific termination and cabling solutions. Our flexibility allows you to create the ideal pushbutton switch for your use case. Additionally, we offer a range of customizations such as custom caps and legends, unique detents (clicks) and tactile feedback, multiple termination and cabling options, custom electronics, and integration into a Grayhill custom front panel assembly. With these options, you can ensure that your pushbutton switches meet your exact specifications and requirements.
- Products
- Description

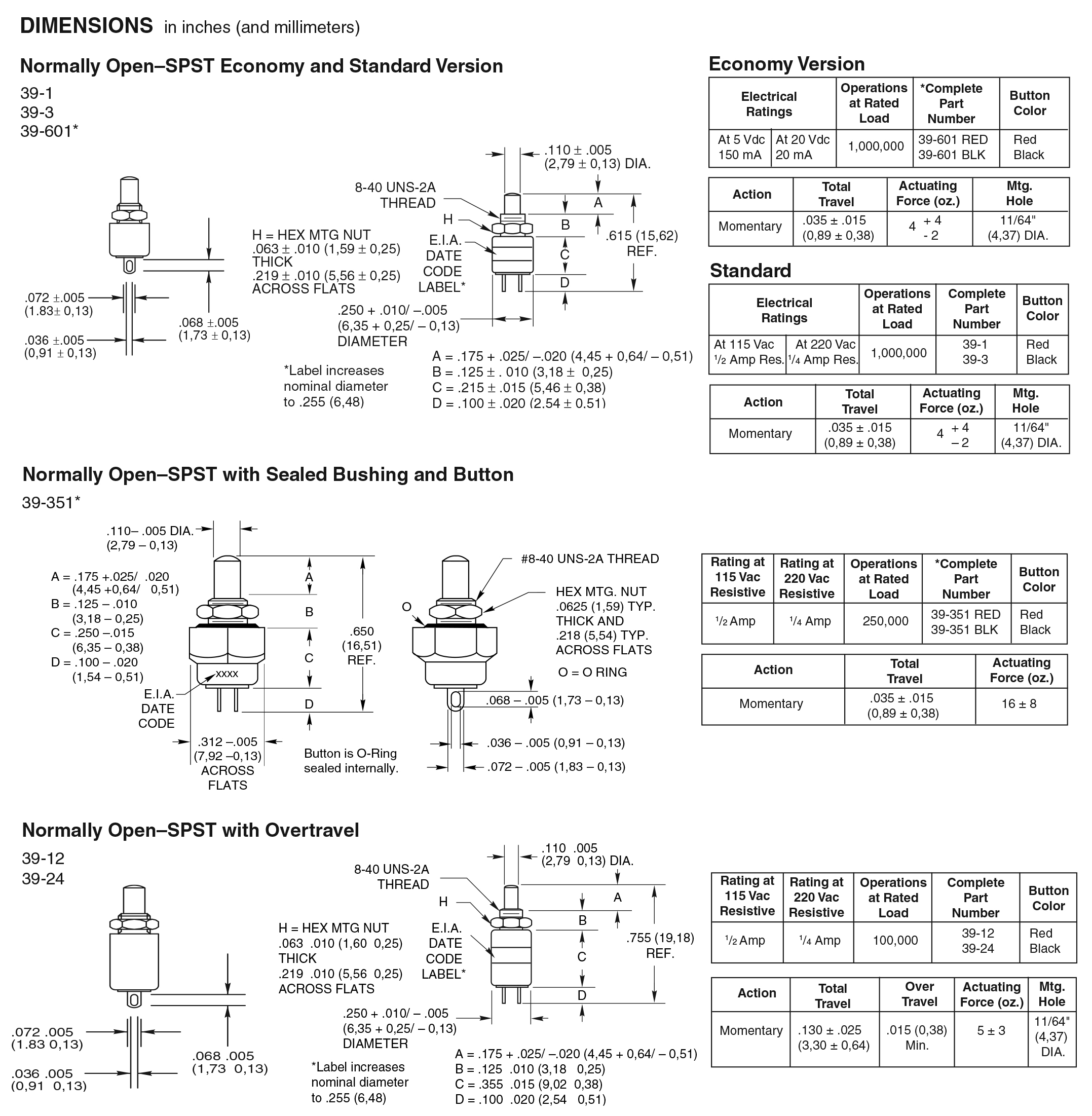

- Drawings
- Downloads
Product | Contact Type | Circuitry | Max Switch Rating | Mechanical Life Cycles |
---|---|---|---|---|
![]()
Pushbutton
39-1
|
SPST - N.O. | 150 mA | 1000000 | Panel |
![]()
Pushbutton
39-1-EW
|
SPST - N.O. | 150 mA | 1000000 | Panel |
![]()
Pushbutton
39-12
|
SPST - N.O. | 500 mA | 100000 | Panel |
![]()
Pushbutton
39-12-EW
|
SPST - N.O. | 500 mA | 100000 | Panel |
![]()
Pushbutton
39-2
|
SPST - N.C. | 250 mA | 250000 | Panel |
![]()
Pushbutton
39-2-E
|
SPST - N.C. | 250 mA | 250000 | Panel |
![]()
Pushbutton
39-2-EW
|
SPST - N.C. | 250 mA | 250000 | Panel |
![]()
Pushbutton
39-24
|
SPST - N.O. | 500 mA | 100000 | Panel |
![]()
Pushbutton
39-24-EW
|
SPST - N.O. | 500 mA | 100000 | Panel |
![]()
Pushbutton
39-3
|
SPST - N.O. | 150 mA | 1000000 | Panel |
![]()
Pushbutton
39-3-EW
|
SPST - N.O. | 150 mA | 1000000 | Panel |
![]()
Pushbutton
39-351 BLK
|
SPST - N.O. | 500 mA | 250000 | Panel |
![]()
Pushbutton
39-351 BLK-EW
|
SPST - N.O. | 500 mA | 250000 | Panel |
![]()
Pushbutton
39-351 RED
|
SPST - N.O. | 500 mA | 250000 | Panel |
![]()
Pushbutton
39-351 RED-EW
|
SPST - N.O. | 500 mA | 250000 | Panel |
![]()
Pushbutton
39-352 BLK
|
SPST - N.C. | 250 mA | 100000 | Panel |
![]()
Pushbutton
39-352 BLK-E
|
SPST - N.C. | 250 mA | 100000 | Panel |
![]()
Pushbutton
39-352 BLK-EW
|
SPST - N.C. | 250 mA | 100000 | Panel |
![]()
Pushbutton
39-352 RED
|
SPST - N.C. | 250 mA | 100000 | Panel |
![]()
Pushbutton
39-352 RED-E
|
SPST - N.C. | 250 mA | 100000 | Panel |
![]()
Pushbutton
39-352 RED-EW
|
SPST - N.C. | 250 mA | 100000 | Panel |
![]()
Pushbutton
39-601 BLK
|
SPST - N.O. | 150 mA | 1000000 | Panel |
![]()
Pushbutton
39-601 BLK-EW
|
SPST - N.O. | 150 mA | 1000000 | Panel |
![]()
Pushbutton
39-601 RED
|
SPST - N.O. | 150 mA | 1000000 | Panel |
![]()
Pushbutton
39-601 RED-EW
|
SPST - N.O. | 150 mA | 1000000 | Panel |
- Shaft & panel seal
- Electrical Rating: Up to 1/2 at 115 Vac
- Circuitry: SPST
- Termination: Solder lug
- Behind Panel Depth Inches [mm]: 0.215 to .390 [5,461 to 9,90]
- Life Rating (cycles): up to 100,000
- Shaft & panel seal
- Electrical Rating: Up to 1/2 at 115 Vac
- Circuitry: SPST
- Termination: Solder lug
- Behind Panel Depth Inches [mm]: 0.215 to .390 [5,461 to 9,90]
- Life Rating (cycles): up to 100,000
![]() |
Pushbutton
39-1
Contact Type: SPST - N.O. Circuitry: 150 mA Max Switch Rating: 1000000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-1-EW
Contact Type: SPST - N.O. Circuitry: 150 mA Max Switch Rating: 1000000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-12
Contact Type: SPST - N.O. Circuitry: 500 mA Max Switch Rating: 100000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-12-EW
Contact Type: SPST - N.O. Circuitry: 500 mA Max Switch Rating: 100000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-2
Contact Type: SPST - N.C. Circuitry: 250 mA Max Switch Rating: 250000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-2-E
Contact Type: SPST - N.C. Circuitry: 250 mA Max Switch Rating: 250000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-2-EW
Contact Type: SPST - N.C. Circuitry: 250 mA Max Switch Rating: 250000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-24
Contact Type: SPST - N.O. Circuitry: 500 mA Max Switch Rating: 100000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-24-EW
Contact Type: SPST - N.O. Circuitry: 500 mA Max Switch Rating: 100000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-3
Contact Type: SPST - N.O. Circuitry: 150 mA Max Switch Rating: 1000000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-3-EW
Contact Type: SPST - N.O. Circuitry: 150 mA Max Switch Rating: 1000000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-351 BLK
Contact Type: SPST - N.O. Circuitry: 500 mA Max Switch Rating: 250000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-351 BLK-EW
Contact Type: SPST - N.O. Circuitry: 500 mA Max Switch Rating: 250000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-351 RED
Contact Type: SPST - N.O. Circuitry: 500 mA Max Switch Rating: 250000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-351 RED-EW
Contact Type: SPST - N.O. Circuitry: 500 mA Max Switch Rating: 250000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-352 BLK
Contact Type: SPST - N.C. Circuitry: 250 mA Max Switch Rating: 100000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-352 BLK-E
Contact Type: SPST - N.C. Circuitry: 250 mA Max Switch Rating: 100000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-352 BLK-EW
Contact Type: SPST - N.C. Circuitry: 250 mA Max Switch Rating: 100000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-352 RED
Contact Type: SPST - N.C. Circuitry: 250 mA Max Switch Rating: 100000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-352 RED-E
Contact Type: SPST - N.C. Circuitry: 250 mA Max Switch Rating: 100000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-352 RED-EW
Contact Type: SPST - N.C. Circuitry: 250 mA Max Switch Rating: 100000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-601 BLK
Contact Type: SPST - N.O. Circuitry: 150 mA Max Switch Rating: 1000000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-601 BLK-EW
Contact Type: SPST - N.O. Circuitry: 150 mA Max Switch Rating: 1000000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-601 RED
Contact Type: SPST - N.O. Circuitry: 150 mA Max Switch Rating: 1000000 Mechanical Life Cycles: Panel |
![]() |
Pushbutton
39-601 RED-EW
Contact Type: SPST - N.O. Circuitry: 150 mA Max Switch Rating: 1000000 Mechanical Life Cycles: Panel |
