Series: 95C12
- 12mm Square, Non-Washable
- Life Rating: Up to 500,000 cycles
- Operating Force (g): 100, 160, 260, 320, 520
- Termination: SMT, Thru-Hole, Right Angle
Link copied to clipboard.
Request Quote
- Products
- Description

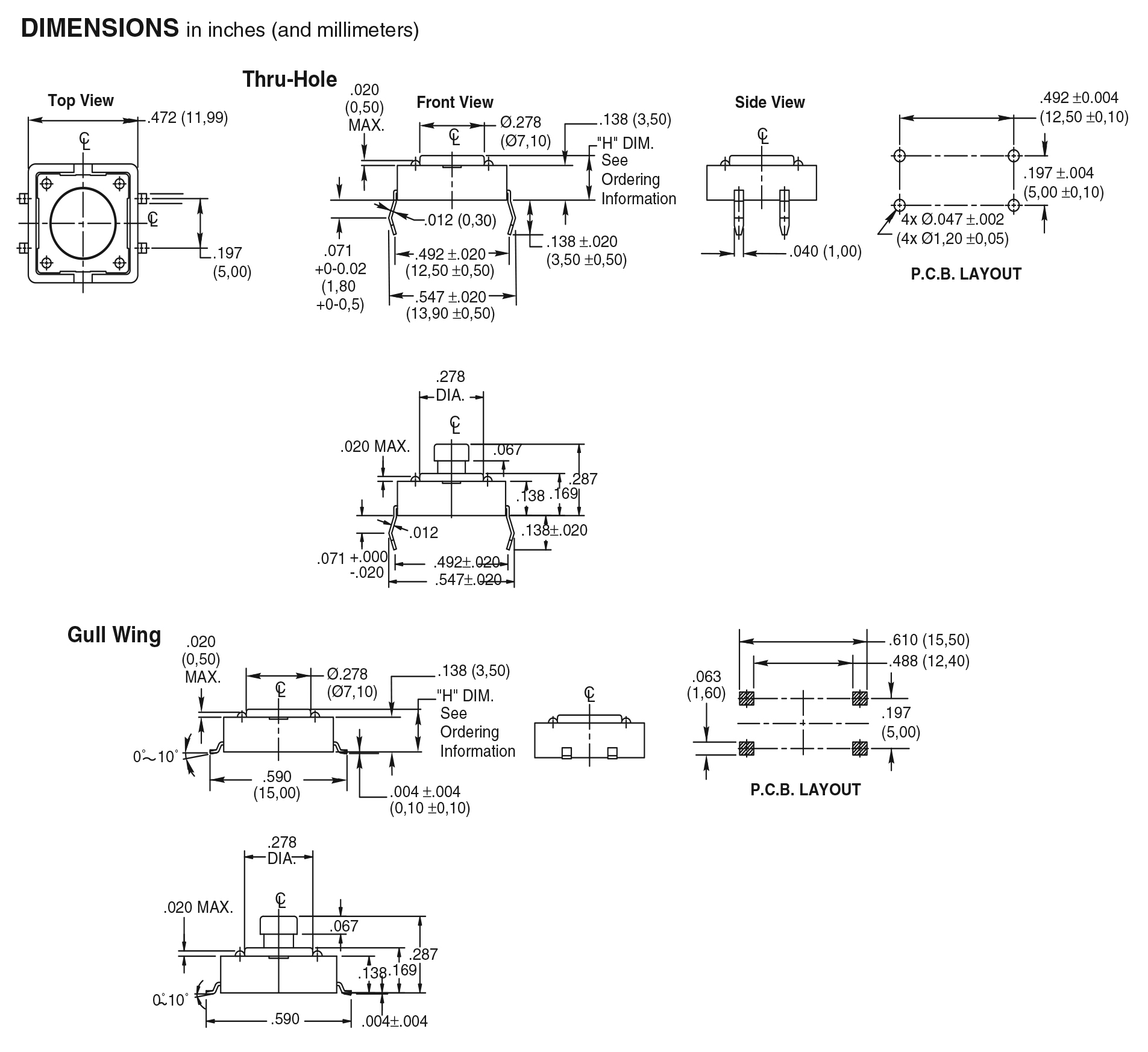

- Drawings
- Downloads
| Product | Switch Style | Electrical Rating | 3D Model Available | Washable |
|---|---|---|---|---|
|
Tact Switch
95C12A3GWRT
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12A3GWT
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12A3T
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12A4GWRT
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12A4GWT
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12A4T
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12B3GWRT
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12B3GWT
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12B3T
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12B4GWRT
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12B4GWT
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12B4T
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12C3GWRT
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12C3GWT
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12C3T
|
50 mA, 12 VDC | Yes | No | No |
|
Tact Switch
95C12C4GWRT
|
50 mA, 12 VDC | Yes | Yes | No |
|
Tact Switch
95C12C4GWT
|
50 mA, 12 VDC | Yes | Yes | No |
|
Tact Switch
95C12C4T
|
50 mA, 12 VDC | Yes | No | No |
- 12mm Square, Non-Washable
- Life Rating: Up to 500,000 cycles
- Operating Force (g): 100, 160, 260, 320, 520
- Termination: SMT, Thru-Hole, Right Angle
- 12mm Square, Non-Washable
- Life Rating: Up to 500,000 cycles
- Operating Force (g): 100, 160, 260, 320, 520
- Termination: SMT, Thru-Hole, Right Angle
Products
|
|
Tact Switch
95C12A3GWRT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12A3GWT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12A3T
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12A4GWRT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12A4GWT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12A4T
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12B3GWRT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12B3GWT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12B3T
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12B4GWRT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12B4GWT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12B4T
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12C3GWRT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12C3GWT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12C3T
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
|
|
Tact Switch
95C12C4GWRT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C12C4GWT
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: Yes Washable: No |
|
|
Tact Switch
95C12C4T
Switch Style: 50 mA, 12 VDC Electrical Rating: Yes 3D Model Available: No Washable: No |
