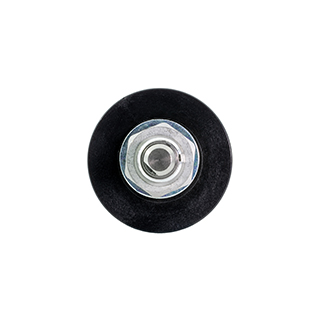

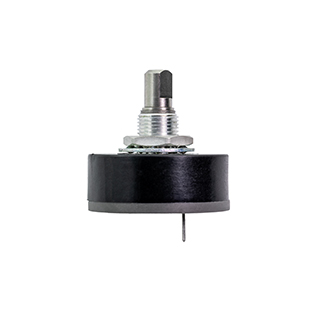

Grayhill's high-resolution, 5-pin 61R Machine Rotary Encoders provide excellent tactile feedback to the user, making them a reliable choice for various applications. They feature debris-resistant Hall-effect sensor technology and are available in multiple cycle options, including 25, 32, 50, 64, 100, 128, and 256 cycles per revolution. Additionally, users can choose between sealed versions for more demanding environments or standard models. With a sturdy construction and options for cable or pin configurations, these rugged encoders are designed to withstand rigorous use and boast an impressive operational life of up to 10 million rotational cycles. The greatest advantage of optical encoders lies in their non-contact switching technology, which contributes to an exceptionally high operational life. While the specific end product may vary, optical encoders are commonly utilized in applications that measure speed, distance, and rotational angle. Their design and functionality make them suitable for a wide range of industries where precision and durability are essential.

Link copied to clipboard. Request Quote

Products
Description

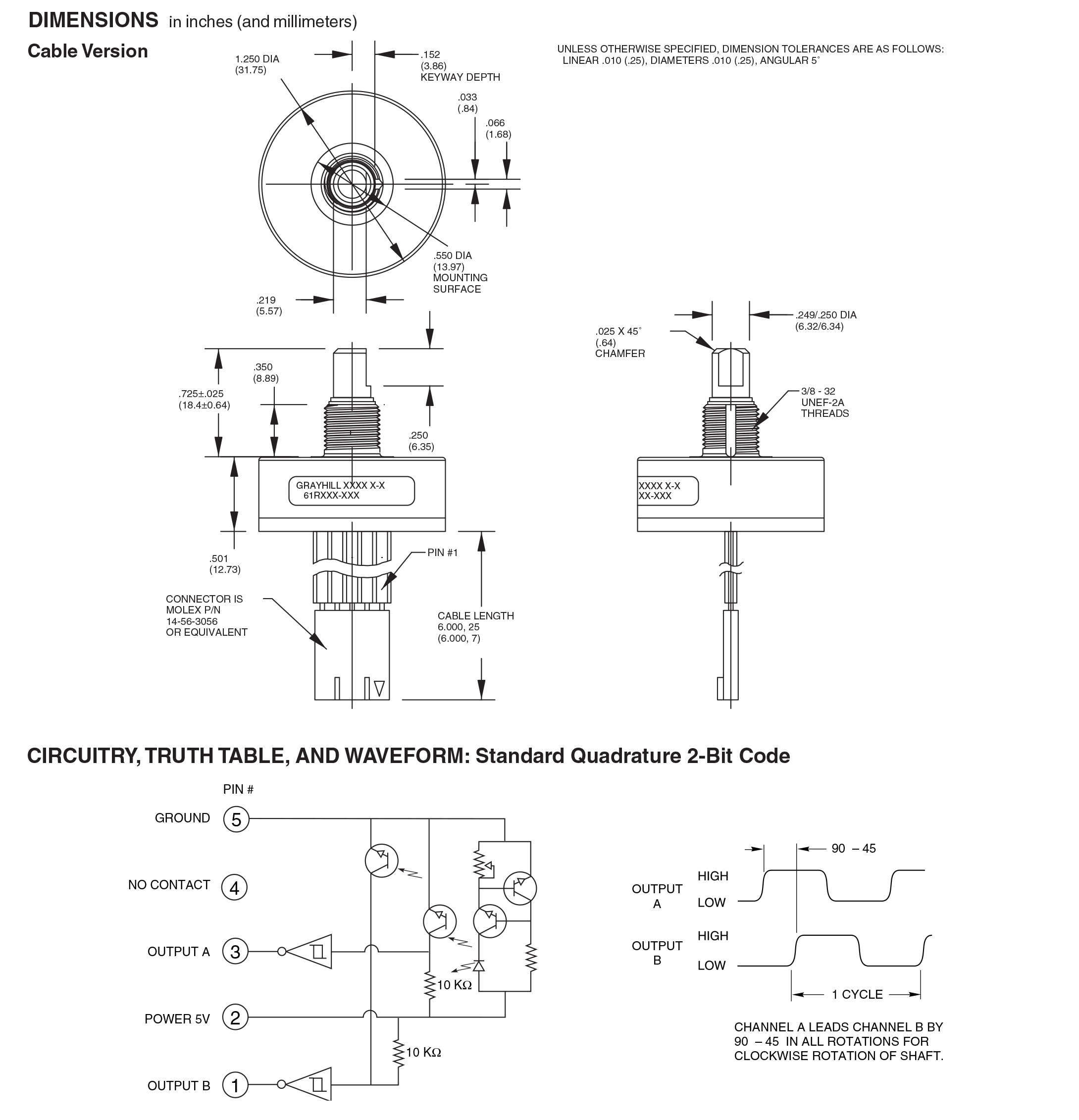

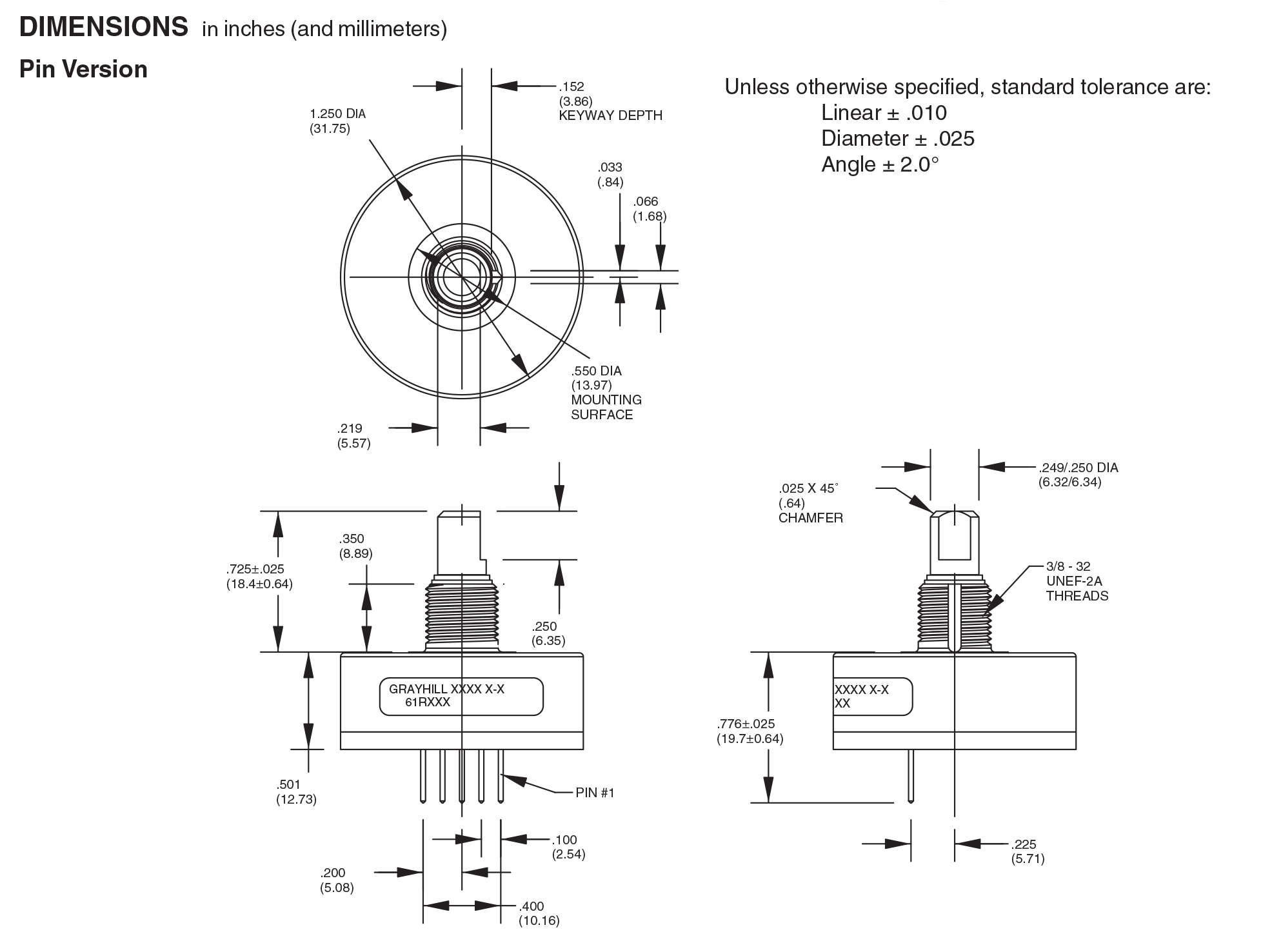

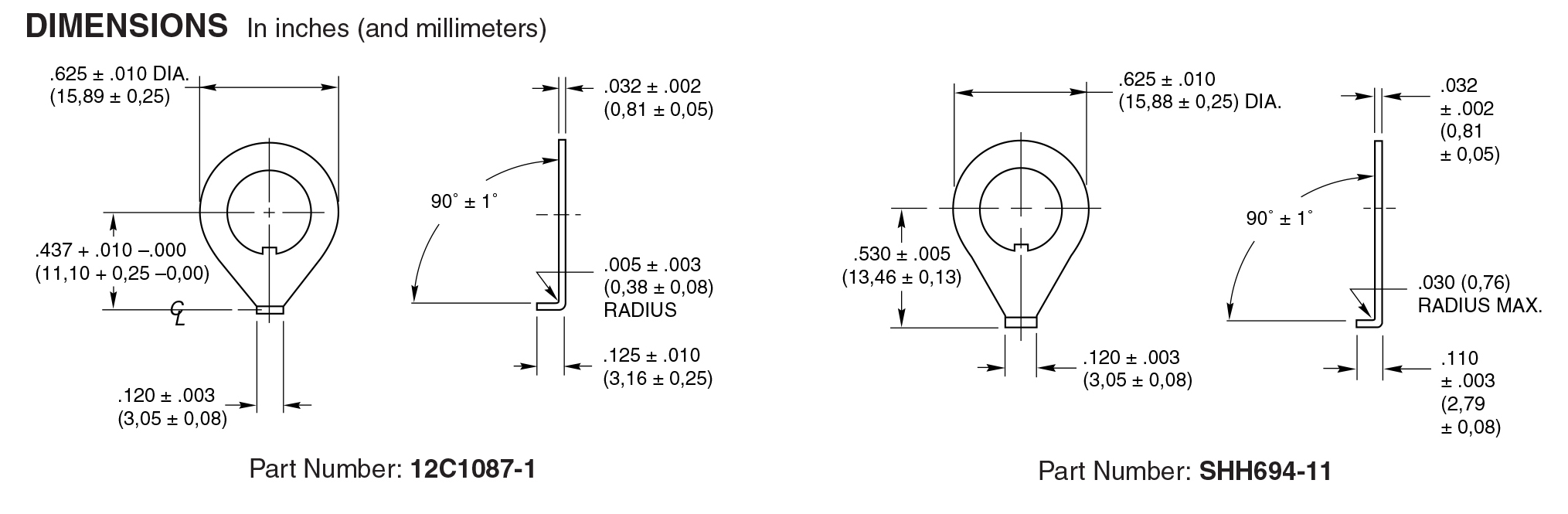

Drawings
Downloads

Product	Output	Angle of Throw	Supply Voltage (VDC)	Shaft Diameter (in)
Machine Rotary Encoder 61R100	3.6	5	0.25	1
Machine Rotary Encoder 61R100-020	3.6	5	0.25	1
Machine Rotary Encoder 61R100-050	3.6	5	0.25	1
Machine Rotary Encoder 61R128	2.81	5	0.25	1
Machine Rotary Encoder 61R128-040	2.81	5	0.25	1
Machine Rotary Encoder 61R128-050	2.81	5	0.25	1
Machine Rotary Encoder 61R128-060	2.81	5	0.25	1
Machine Rotary Encoder 61R128-075	2.81	5	0.25	1
Machine Rotary Encoder 61R128-080	2.81	5	0.25	1
Machine Rotary Encoder 61R25	14.4	5	0.25	1
Machine Rotary Encoder 61R256	1.41	5	0.25	1
Machine Rotary Encoder 61R256-020	1.41	5	0.25	1
Machine Rotary Encoder 61R256-030	1.41	5	0.25	1
Machine Rotary Encoder 61R256-035	1.41	5	0.25	1
Machine Rotary Encoder 61R256-100	1.41	5	0.25	1
Machine Rotary Encoder 61R32	1.41	5	0.25	1
Machine Rotary Encoder 61R50	1.41	5	0.25	1
Machine Rotary Encoder 61R64	5.625	5	0.25	1
Machine Rotary Encoder 61R64-050	5.625	5	0.25	1
Machine Rotary Encoder 61RS100	3.6	5	0.25	1
Machine Rotary Encoder 61RS128	2.81	5	0.25	1
Machine Rotary Encoder 61RS128-040	2.81	5	0.25	1
Machine Rotary Encoder 61RS128-080	2.81	5	0.25	1
Machine Rotary Encoder 61RS256	1.41	5	0.25	1
Machine Rotary Encoder 61RS256-020	1.41	5	0.25	1
Machine Rotary Encoder 61RS256-060	1.41	5	0.25	1
Machine Rotary Encoder 61RS32	11.25	5	0.25	1
Machine Rotary Encoder 61RS50	11.25	5	0.25	1
Machine Rotary Encoder 61RS50-025	7.2	5	0.25	1

Optional index pulse
Life Rating (cycles): 10,000,000
Resolution (PPR): 25, 32, 50, 64, 128, 256 (cycles per revolution)
Body Size inches [mm]: 1.250 [31,75] diameter
Depth Behind Panel inch [mm]: .500 [12,70]

Optional index pulse
Life Rating (cycles): 10,000,000
Resolution (PPR): 25, 32, 50, 64, 128, 256 (cycles per revolution)
Body Size inches [mm]: 1.250 [31,75] diameter
Depth Behind Panel inch [mm]: .500 [12,70]
