Series: 25B

  • Multiple code and indexing choices
  • Reliability tested to listed specifications
  • Less than 1.0” Square
  • Termination choices
  • Panel and shaft seal option
  • Manufactured to ISO 9001 and military standards
  • Custom configurations available
  • Angle of Throw: 10, 11.25, 12, 15, 18, 22.5, 30, 45, 60, 90
  • Positions: 4, 6, 8, 12, 16, 20, 24, 30, 32, 36
  • Multi-deck

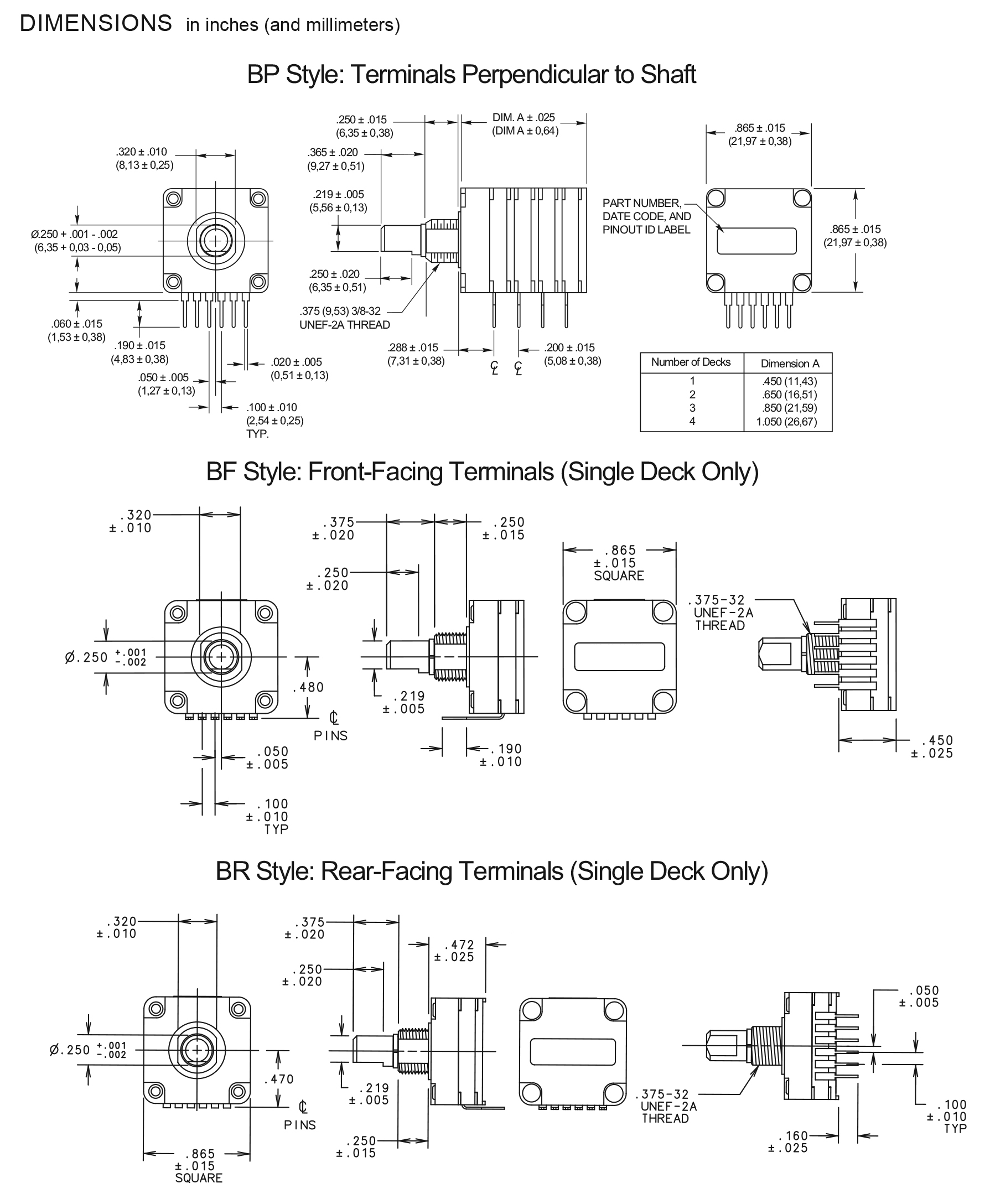

  • Body Size inches [mm]: 0.865 [21,97] square
  • Depth Behind Panel: 0.45" to 1.05"
Link copied to clipboard. Request Quote
  • Products
  • Description

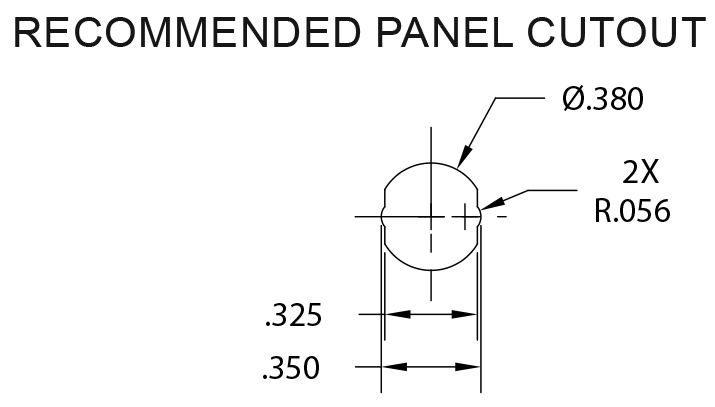

  • Drawings
  • Downloads
Product Output Angle of Throw (°) Positions per Pole Number of Decks
25BF22-B-1-16F
Mechanical Encoder 25BF22-B-1-16F
22.5 16 1 N/A
25BF22-Q-1-16C
Mechanical Encoder 25BF22-Q-1-16C
22.5 16 1 N/A
25BP11-B-1-32F
Mechanical Encoder 25BP11-B-1-32F
11.5 32 1 N/A
25BP11-Q-1-32C
Mechanical Encoder 25BP11-Q-1-32C
11.5 32 1 N/A
25BP11-Q-1-32F
Mechanical Encoder 25BP11-Q-1-32F
11.5 32 1 N/A
25BP11-Q-2-32F
Mechanical Encoder 25BP11-Q-2-32F
11.5 32 2 N/A
25BP12-Q-1-30C
Mechanical Encoder 25BP12-Q-1-30C
12 30 1 N/A
25BP15-G-1-24F
Mechanical Encoder 25BP15-G-1-24F
15 24 1 N/A
25BP15-Q-1-24C
Mechanical Encoder 25BP15-Q-1-24C
15 24 1 N/A
25BP15-Q-1-24F
Mechanical Encoder 25BP15-Q-1-24F
15 24 1 N/A
25BP15-Q-2-24F
Mechanical Encoder 25BP15-Q-2-24F
15 24 2 N/A
25BP18-Q-1-20C
Mechanical Encoder 25BP18-Q-1-20C
18 20 1 N/A
25BP18-Q-1-20F
Mechanical Encoder 25BP18-Q-1-20F
18 20 1 N/A
25BP18-Q-4-20C
Mechanical Encoder 25BP18-Q-4-20C
18 20 4 N/A
25BP22-B-1-06
Mechanical Encoder 25BP22-B-1-06
22.5 6 1 N/A
25BP22-B-1-07
Mechanical Encoder 25BP22-B-1-07
22.5 7 1 N/A
25BP22-B-1-08
Mechanical Encoder 25BP22-B-1-08
22.5 8 1 N/A
25BP22-B-1-15
Mechanical Encoder 25BP22-B-1-15
22.5 15 1 N/A
25BP22-B-1-16C
Mechanical Encoder 25BP22-B-1-16C
22.5 16 1 N/A
25BP22-B-1-16F
Mechanical Encoder 25BP22-B-1-16F
22.5 16 1 N/A
25BP22-B-2-05
Mechanical Encoder 25BP22-B-2-05
22.5 5 2 N/A
25BP22-B-2-16C
Mechanical Encoder 25BP22-B-2-16C
22.5 16 2 N/A
25BP22-B-2-16F
Mechanical Encoder 25BP22-B-2-16F
22.5 16 2 N/A
25BP22-G-1-16C
Mechanical Encoder 25BP22-G-1-16C
22.5 16 1 N/A
25BP22-G-1-16F
Mechanical Encoder 25BP22-G-1-16F
22.5 16 1 N/A
25BP22-G-2-16F
Mechanical Encoder 25BP22-G-2-16F
22.5 16 2 N/A
25BP22-Q-1-08
Mechanical Encoder 25BP22-Q-1-08
22.5 8 1 N/A
25BP22-Q-1-16C
Mechanical Encoder 25BP22-Q-1-16C
22.5 16 1 N/A
25BP22-Q-1-16F
Mechanical Encoder 25BP22-Q-1-16F
22.5 16 1 N/A
25BP22-Q-2-16C
Mechanical Encoder 25BP22-Q-2-16C
22.5 16 2 N/A
25BP22-Q-2-16F
Mechanical Encoder 25BP22-Q-2-16F
22.5 16 2 N/A
25BP22-Q-3-16F
Mechanical Encoder 25BP22-Q-3-16F
22.5 16 3 N/A
25BP30-B-1-04
Mechanical Encoder 25BP30-B-1-04
30 4 1 N/A
25BP30-B-1-06
Mechanical Encoder 25BP30-B-1-06
30 6 1 N/A
25BP30-B-1-07
Mechanical Encoder 25BP30-B-1-07
30 7 1 N/A
25BP30-Q-1-08
Mechanical Encoder 25BP30-Q-1-08
30 8 1 N/A
25BP30-Q-1-12F
Mechanical Encoder 25BP30-Q-1-12F
30 12 1 N/A
25BP30-Q-2-12F
Mechanical Encoder 25BP30-Q-2-12F
30 12 2 N/A
25BP36-B-1-03
Mechanical Encoder 25BP36-B-1-03
36 3 1 N/A
25BP45-Q-1-08C
Mechanical Encoder 25BP45-Q-1-08C
45 8 1 N/A
25BP45-Q-2-08C
Mechanical Encoder 25BP45-Q-2-08C
45 8 2 N/A
25BP90-Q-1-04F
Mechanical Encoder 25BP90-Q-1-04F
90 4 1 N/A
25BR10-Q-1-36C
Mechanical Encoder 25BR10-Q-1-36C
10 36 1 N/A
25BR11-B-1-32F
Mechanical Encoder 25BR11-B-1-32F
11.5 32 1 N/A
25BR11-Q-1-32F
Mechanical Encoder 25BR11-Q-1-32F
11.5 32 1 N/A
25BR15-B-1-19
Mechanical Encoder 25BR15-B-1-19
15 19 1 N/A
25BR15-B-1-24C
Mechanical Encoder 25BR15-B-1-24C
15 24 1 N/A
25BR15-G-1-20
Mechanical Encoder 25BR15-G-1-20
15 20 1 N/A
25BR15-G-1-24F
Mechanical Encoder 25BR15-G-1-24F
15 24 1 N/A
25BR15-Q-1-20
Mechanical Encoder 25BR15-Q-1-20
15 20 1 N/A
25BR15-Q-1-24C
Mechanical Encoder 25BR15-Q-1-24C
15 24 1 N/A
25BR18-B-1-19
Mechanical Encoder 25BR18-B-1-19
18 19 1 N/A
25BR18-G-1-20C
Mechanical Encoder 25BR18-G-1-20C
18 20 1 N/A
25BR18-G-1-20F
Mechanical Encoder 25BR18-G-1-20F
18 20 1 N/A
25BR22-B-1-06
Mechanical Encoder 25BR22-B-1-06
22.5 6 1 N/A
25BR22-B-1-09
Mechanical Encoder 25BR22-B-1-09
22.5 9 1 N/A
25BR22-B-1-16C
Mechanical Encoder 25BR22-B-1-16C
22.5 16 1 N/A
25BR22-B-1-16F
Mechanical Encoder 25BR22-B-1-16F
22.5 16 1 N/A
25BR22-G-1-16C
Mechanical Encoder 25BR22-G-1-16C
22.5 16 1 N/A
25BR22-Q-1-16C
Mechanical Encoder 25BR22-Q-1-16C
22.5 16 1 N/A
25BSF15-Q-1-24C
Mechanical Encoder 25BSF15-Q-1-24C
15 24 1 N/A
25BSF22-B-1-16C
Mechanical Encoder 25BSF22-B-1-16C
22.5 16 1 N/A
25BSF22-B-1-16F
Mechanical Encoder 25BSF22-B-1-16F
22.5 16 1 N/A
25BSF22-Q-1-16F
Mechanical Encoder 25BSF22-Q-1-16F
22.5 16 1 N/A
25BSF30-B-1-12C
Mechanical Encoder 25BSF30-B-1-12C
30 12 1 N/A
25BSP10-Q-1-36C
Mechanical Encoder 25BSP10-Q-1-36C
10 36 1 N/A
25BSP10-Q-2-36C
Mechanical Encoder 25BSP10-Q-2-36C
10 36 2 N/A
25BSP11-B-1-16
Mechanical Encoder 25BSP11-B-1-16
11.5 16 1 N/A
25BSP11-B-1-24
Mechanical Encoder 25BSP11-B-1-24
11.5 24 1 N/A
25BSP11-B-1-32C
Mechanical Encoder 25BSP11-B-1-32C
11.5 32 1 N/A
25BSP11-B-1-32F
Mechanical Encoder 25BSP11-B-1-32F
11.5 32 1 N/A
25BSP11-G-1-32C
Mechanical Encoder 25BSP11-G-1-32C
11.5 32 1 N/A
25BSP11-Q-1-32C
Mechanical Encoder 25BSP11-Q-1-32C
11.5 32 1 N/A
25BSP11-Q-1-32F
Mechanical Encoder 25BSP11-Q-1-32F
11.5 32 1 N/A
25BSP15-B-1-23
Mechanical Encoder 25BSP15-B-1-23
15 23 1 N/A
25BSP15-B-1-24C
Mechanical Encoder 25BSP15-B-1-24C
15 24 1 N/A
25BSP15-G-1-08
Mechanical Encoder 25BSP15-G-1-08
15 8 1 N/A
25BSP15-G-1-16
Mechanical Encoder 25BSP15-G-1-16
15 16 1 N/A
25BSP15-Q-1-24C
Mechanical Encoder 25BSP15-Q-1-24C
15 24 1 N/A
25BSP18-Q-2-20F
Mechanical Encoder 25BSP18-Q-2-20F
18 20 2 N/A
25BSP22-B-1-04
Mechanical Encoder 25BSP22-B-1-04
22.5 4 1 N/A
25BSP22-B-1-08
Mechanical Encoder 25BSP22-B-1-08
22.5 8 1 N/A
25BSP22-B-1-10
Mechanical Encoder 25BSP22-B-1-10
22.5 10 1 N/A
25BSP22-B-1-12
Mechanical Encoder 25BSP22-B-1-12
22.5 12 1 N/A
25BSP22-B-1-13
Mechanical Encoder 25BSP22-B-1-13
22.5 13 1 N/A
25BSP22-B-1-16C
Mechanical Encoder 25BSP22-B-1-16C
22.5 16 1 N/A
25BSP22-B-1-16F
Mechanical Encoder 25BSP22-B-1-16F
22.5 16 1 N/A
25BSP22-B-2-16C
Mechanical Encoder 25BSP22-B-2-16C
22.5 16 2 N/A
25BSP22-B-2-16F
Mechanical Encoder 25BSP22-B-2-16F
22.5 16 2 N/A
25BSP22-B-3-16C
Mechanical Encoder 25BSP22-B-3-16C
22.5 16 3 N/A
25BSP22-B-4-12
Mechanical Encoder 25BSP22-B-4-12
22.5 12 4 N/A
25BSP22-G-1-06
Mechanical Encoder 25BSP22-G-1-06
22.5 6 1 N/A
25BSP22-G-1-08
Mechanical Encoder 25BSP22-G-1-08
22.5 8 1 N/A
25BSP22-G-1-10
Mechanical Encoder 25BSP22-G-1-10
22.5 10 1 N/A
25BSP22-G-1-11
Mechanical Encoder 25BSP22-G-1-11
22.5 11 1 N/A
25BSP22-G-1-13
Mechanical Encoder 25BSP22-G-1-13
22.5 13 1 N/A
25BSP22-G-1-15
Mechanical Encoder 25BSP22-G-1-15
22.5 15 1 N/A
25BSP22-G-1-16C
Mechanical Encoder 25BSP22-G-1-16C
22.5 16 1 N/A
25BSP22-G-1-16F
Mechanical Encoder 25BSP22-G-1-16F
22.5 16 1 N/A
25BSP22-G-2-10
Mechanical Encoder 25BSP22-G-2-10
22.5 10 2 N/A
25BSP22-G-4-16C
Mechanical Encoder 25BSP22-G-4-16C
22.5 16 4 N/A
25BSP22-G-4-16F
Mechanical Encoder 25BSP22-G-4-16F
22.5 16 4 N/A
25BSP22-Q-1-16C
Mechanical Encoder 25BSP22-Q-1-16C
22.5 16 1 N/A
25BSP22-Q-1-16F
Mechanical Encoder 25BSP22-Q-1-16F
22.5 16 1 N/A
25BSP30-B-1-11
Mechanical Encoder 25BSP30-B-1-11
30 11 1 N/A
25BSP30-B-1-12C
Mechanical Encoder 25BSP30-B-1-12C
30 12 1 N/A
25BSP30-B-1-12F
Mechanical Encoder 25BSP30-B-1-12F
30 12 1 N/A
25BSP30-B-4-12C
Mechanical Encoder 25BSP30-B-4-12C
30 12 4 N/A
25BSP30-G-4-12C
Mechanical Encoder 25BSP30-G-4-12C
30 12 4 N/A
25BSP30-Q-1-05
Mechanical Encoder 25BSP30-Q-1-05
30 5 1 N/A
25BSP30-Q-1-12C
Mechanical Encoder 25BSP30-Q-1-12C
30 12 1 N/A
25BSP30-Q-2-12C
Mechanical Encoder 25BSP30-Q-2-12C
30 12 2 N/A
25BSP30-Q-4-12C
Mechanical Encoder 25BSP30-Q-4-12C
30 12 4 N/A
25BSP36-B-1-10C
Mechanical Encoder 25BSP36-B-1-10C
36 10 1 N/A
25BSP36-B-1-10F
Mechanical Encoder 25BSP36-B-1-10F
36 10 1 N/A
25BSP36-G-1-10C
Mechanical Encoder 25BSP36-G-1-10C
36 10 1 N/A
25BSP45-B-1-08C
Mechanical Encoder 25BSP45-B-1-08C
45 8 1 N/A
25BSP45-G-4-08F
Mechanical Encoder 25BSP45-G-4-08F
45 8 4 N/A
25BSP45-Q-1-08C
Mechanical Encoder 25BSP45-Q-1-08C
45 8 1 N/A
25BSP60-B-1-06C
Mechanical Encoder 25BSP60-B-1-06C
60 6 1 N/A
25BSP60-B-1-06F
Mechanical Encoder 25BSP60-B-1-06F
60 6 1 N/A
25BSR10-Q-1-10
Mechanical Encoder 25BSR10-Q-1-10
10 10 1 N/A
25BSR10-Q-1-36C
Mechanical Encoder 25BSR10-Q-1-36C
10 36 1 N/A
25BSR11-G-1-10
Mechanical Encoder 25BSR11-G-1-10
11.5 10 1 N/A
25BSR11-Q-1-10
Mechanical Encoder 25BSR11-Q-1-10
11.5 10 1 N/A
25BSR11-Q-1-16
Mechanical Encoder 25BSR11-Q-1-16
11.5 16 1 N/A
25BSR11-Q-1-32C
Mechanical Encoder 25BSR11-Q-1-32C
11.5 32 1 N/A
25BSR11-Q-1-32F
Mechanical Encoder 25BSR11-Q-1-32F
11.5 32 1 N/A
25BSR12-B-1-30C
Mechanical Encoder 25BSR12-B-1-30C
12 30 1 N/A
25BSR12-Q-1-10
Mechanical Encoder 25BSR12-Q-1-10
12 10 1 N/A
25BSR15-G-1-16
Mechanical Encoder 25BSR15-G-1-16
15 16 1 N/A
25BSR15-Q-1-24C
Mechanical Encoder 25BSR15-Q-1-24C
15 24 1 N/A
25BSR22-B-1-06
Mechanical Encoder 25BSR22-B-1-06
22.5 6 1 N/A
25BSR22-B-1-07
Mechanical Encoder 25BSR22-B-1-07
22.5 7 1 N/A
25BSR22-B-1-10
Mechanical Encoder 25BSR22-B-1-10
22.5 10 1 N/A
25BSR22-B-1-13
Mechanical Encoder 25BSR22-B-1-13
22.5 13 1 N/A
25BSR22-B-1-16C
Mechanical Encoder 25BSR22-B-1-16C
22.5 16 1 N/A
25BSR22-B-1-16F
Mechanical Encoder 25BSR22-B-1-16F
22.5 16 1 N/A
25BSR22-G-1-04
Mechanical Encoder 25BSR22-G-1-04
22.5 4 1 N/A
25BSR22-G-1-08
Mechanical Encoder 25BSR22-G-1-08
22.5 8 1 N/A
25BSR22-G-1-11
Mechanical Encoder 25BSR22-G-1-11
22.5 11 1 N/A
25BSR22-G-1-13
Mechanical Encoder 25BSR22-G-1-13
22.5 13 1 N/A
25BSR22-G-1-16C
Mechanical Encoder 25BSR22-G-1-16C
22.5 16 1 N/A
25BSR22-G-1-16F
Mechanical Encoder 25BSR22-G-1-16F
22.5 16 1 N/A
25BSR22-Q-1-16C
Mechanical Encoder 25BSR22-Q-1-16C
22.5 16 1 N/A
25BSR22-Q-1-16F
Mechanical Encoder 25BSR22-Q-1-16F
22.5 16 1 N/A
25BSR30-G-1-12C
Mechanical Encoder 25BSR30-G-1-12C
30 12 1 N/A
25BSR30-Q-1-12C
Mechanical Encoder 25BSR30-Q-1-12C
30 12 1 N/A
25BSR90-Q-1-04C
Mechanical Encoder 25BSR90-Q-1-04C
90 4 1 N/A
  • Multiple code and indexing choices
  • Reliability tested to listed specifications
  • Less than 1.0” Square
  • Termination choices
  • Panel and shaft seal option
  • Manufactured to ISO 9001 and military standards
  • Custom configurations available
  • Angle of Throw: 10, 11.25, 12, 15, 18, 22.5, 30, 45, 60, 90
  • Positions: 4, 6, 8, 12, 16, 20, 24, 30, 32, 36
  • Multi-deck
  • Body Size inches [mm]: 0.865 [21,97] square
  • Depth Behind Panel: 0.45" to 1.05"
  • Multiple code and indexing choices
  • Reliability tested to listed specifications
  • Less than 1.0” Square
  • Termination choices
  • Panel and shaft seal option
  • Manufactured to ISO 9001 and military standards
  • Custom configurations available
  • Angle of Throw: 10, 11.25, 12, 15, 18, 22.5, 30, 45, 60, 90
  • Positions: 4, 6, 8, 12, 16, 20, 24, 30, 32, 36
  • Multi-deck
  • Body Size inches [mm]: 0.865 [21,97] square
  • Depth Behind Panel: 0.45" to 1.05"
Products
25BF22-B-1-16F
Mechanical Encoder 25BF22-B-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BF22-Q-1-16C
Mechanical Encoder 25BF22-Q-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BP11-B-1-32F
Mechanical Encoder 25BP11-B-1-32F
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BP11-Q-1-32C
Mechanical Encoder 25BP11-Q-1-32C
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BP11-Q-1-32F
Mechanical Encoder 25BP11-Q-1-32F
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BP11-Q-2-32F
Mechanical Encoder 25BP11-Q-2-32F
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 2
Number of Decks: N/A
25BP12-Q-1-30C
Mechanical Encoder 25BP12-Q-1-30C
Output: 12
Angle of Throw (°): 30
Positions per Pole: 1
Number of Decks: N/A
25BP15-G-1-24F
Mechanical Encoder 25BP15-G-1-24F
Output: 15
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BP15-Q-1-24C
Mechanical Encoder 25BP15-Q-1-24C
Output: 15
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BP15-Q-1-24F
Mechanical Encoder 25BP15-Q-1-24F
Output: 15
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BP15-Q-2-24F
Mechanical Encoder 25BP15-Q-2-24F
Output: 15
Angle of Throw (°): 24
Positions per Pole: 2
Number of Decks: N/A
25BP18-Q-1-20C
Mechanical Encoder 25BP18-Q-1-20C
Output: 18
Angle of Throw (°): 20
Positions per Pole: 1
Number of Decks: N/A
25BP18-Q-1-20F
Mechanical Encoder 25BP18-Q-1-20F
Output: 18
Angle of Throw (°): 20
Positions per Pole: 1
Number of Decks: N/A
25BP18-Q-4-20C
Mechanical Encoder 25BP18-Q-4-20C
Output: 18
Angle of Throw (°): 20
Positions per Pole: 4
Number of Decks: N/A
25BP22-B-1-06
Mechanical Encoder 25BP22-B-1-06
Output: 22.5
Angle of Throw (°): 6
Positions per Pole: 1
Number of Decks: N/A
25BP22-B-1-07
Mechanical Encoder 25BP22-B-1-07
Output: 22.5
Angle of Throw (°): 7
Positions per Pole: 1
Number of Decks: N/A
25BP22-B-1-08
Mechanical Encoder 25BP22-B-1-08
Output: 22.5
Angle of Throw (°): 8
Positions per Pole: 1
Number of Decks: N/A
25BP22-B-1-15
Mechanical Encoder 25BP22-B-1-15
Output: 22.5
Angle of Throw (°): 15
Positions per Pole: 1
Number of Decks: N/A
25BP22-B-1-16C
Mechanical Encoder 25BP22-B-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BP22-B-1-16F
Mechanical Encoder 25BP22-B-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BP22-B-2-05
Mechanical Encoder 25BP22-B-2-05
Output: 22.5
Angle of Throw (°): 5
Positions per Pole: 2
Number of Decks: N/A
25BP22-B-2-16C
Mechanical Encoder 25BP22-B-2-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 2
Number of Decks: N/A
25BP22-B-2-16F
Mechanical Encoder 25BP22-B-2-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 2
Number of Decks: N/A
25BP22-G-1-16C
Mechanical Encoder 25BP22-G-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BP22-G-1-16F
Mechanical Encoder 25BP22-G-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BP22-G-2-16F
Mechanical Encoder 25BP22-G-2-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 2
Number of Decks: N/A
25BP22-Q-1-08
Mechanical Encoder 25BP22-Q-1-08
Output: 22.5
Angle of Throw (°): 8
Positions per Pole: 1
Number of Decks: N/A
25BP22-Q-1-16C
Mechanical Encoder 25BP22-Q-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BP22-Q-1-16F
Mechanical Encoder 25BP22-Q-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BP22-Q-2-16C
Mechanical Encoder 25BP22-Q-2-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 2
Number of Decks: N/A
25BP22-Q-2-16F
Mechanical Encoder 25BP22-Q-2-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 2
Number of Decks: N/A
25BP22-Q-3-16F
Mechanical Encoder 25BP22-Q-3-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 3
Number of Decks: N/A
25BP30-B-1-04
Mechanical Encoder 25BP30-B-1-04
Output: 30
Angle of Throw (°): 4
Positions per Pole: 1
Number of Decks: N/A
25BP30-B-1-06
Mechanical Encoder 25BP30-B-1-06
Output: 30
Angle of Throw (°): 6
Positions per Pole: 1
Number of Decks: N/A
25BP30-B-1-07
Mechanical Encoder 25BP30-B-1-07
Output: 30
Angle of Throw (°): 7
Positions per Pole: 1
Number of Decks: N/A
25BP30-Q-1-08
Mechanical Encoder 25BP30-Q-1-08
Output: 30
Angle of Throw (°): 8
Positions per Pole: 1
Number of Decks: N/A
25BP30-Q-1-12F
Mechanical Encoder 25BP30-Q-1-12F
Output: 30
Angle of Throw (°): 12
Positions per Pole: 1
Number of Decks: N/A
25BP30-Q-2-12F
Mechanical Encoder 25BP30-Q-2-12F
Output: 30
Angle of Throw (°): 12
Positions per Pole: 2
Number of Decks: N/A
25BP36-B-1-03
Mechanical Encoder 25BP36-B-1-03
Output: 36
Angle of Throw (°): 3
Positions per Pole: 1
Number of Decks: N/A
25BP45-Q-1-08C
Mechanical Encoder 25BP45-Q-1-08C
Output: 45
Angle of Throw (°): 8
Positions per Pole: 1
Number of Decks: N/A
25BP45-Q-2-08C
Mechanical Encoder 25BP45-Q-2-08C
Output: 45
Angle of Throw (°): 8
Positions per Pole: 2
Number of Decks: N/A
25BP90-Q-1-04F
Mechanical Encoder 25BP90-Q-1-04F
Output: 90
Angle of Throw (°): 4
Positions per Pole: 1
Number of Decks: N/A
25BR10-Q-1-36C
Mechanical Encoder 25BR10-Q-1-36C
Output: 10
Angle of Throw (°): 36
Positions per Pole: 1
Number of Decks: N/A
25BR11-B-1-32F
Mechanical Encoder 25BR11-B-1-32F
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BR11-Q-1-32F
Mechanical Encoder 25BR11-Q-1-32F
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BR15-B-1-19
Mechanical Encoder 25BR15-B-1-19
Output: 15
Angle of Throw (°): 19
Positions per Pole: 1
Number of Decks: N/A
25BR15-B-1-24C
Mechanical Encoder 25BR15-B-1-24C
Output: 15
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BR15-G-1-20
Mechanical Encoder 25BR15-G-1-20
Output: 15
Angle of Throw (°): 20
Positions per Pole: 1
Number of Decks: N/A
25BR15-G-1-24F
Mechanical Encoder 25BR15-G-1-24F
Output: 15
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BR15-Q-1-20
Mechanical Encoder 25BR15-Q-1-20
Output: 15
Angle of Throw (°): 20
Positions per Pole: 1
Number of Decks: N/A
25BR15-Q-1-24C
Mechanical Encoder 25BR15-Q-1-24C
Output: 15
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BR18-B-1-19
Mechanical Encoder 25BR18-B-1-19
Output: 18
Angle of Throw (°): 19
Positions per Pole: 1
Number of Decks: N/A
25BR18-G-1-20C
Mechanical Encoder 25BR18-G-1-20C
Output: 18
Angle of Throw (°): 20
Positions per Pole: 1
Number of Decks: N/A
25BR18-G-1-20F
Mechanical Encoder 25BR18-G-1-20F
Output: 18
Angle of Throw (°): 20
Positions per Pole: 1
Number of Decks: N/A
25BR22-B-1-06
Mechanical Encoder 25BR22-B-1-06
Output: 22.5
Angle of Throw (°): 6
Positions per Pole: 1
Number of Decks: N/A
25BR22-B-1-09
Mechanical Encoder 25BR22-B-1-09
Output: 22.5
Angle of Throw (°): 9
Positions per Pole: 1
Number of Decks: N/A
25BR22-B-1-16C
Mechanical Encoder 25BR22-B-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BR22-B-1-16F
Mechanical Encoder 25BR22-B-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BR22-G-1-16C
Mechanical Encoder 25BR22-G-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BR22-Q-1-16C
Mechanical Encoder 25BR22-Q-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSF15-Q-1-24C
Mechanical Encoder 25BSF15-Q-1-24C
Output: 15
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BSF22-B-1-16C
Mechanical Encoder 25BSF22-B-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSF22-B-1-16F
Mechanical Encoder 25BSF22-B-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSF22-Q-1-16F
Mechanical Encoder 25BSF22-Q-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSF30-B-1-12C
Mechanical Encoder 25BSF30-B-1-12C
Output: 30
Angle of Throw (°): 12
Positions per Pole: 1
Number of Decks: N/A
25BSP10-Q-1-36C
Mechanical Encoder 25BSP10-Q-1-36C
Output: 10
Angle of Throw (°): 36
Positions per Pole: 1
Number of Decks: N/A
25BSP10-Q-2-36C
Mechanical Encoder 25BSP10-Q-2-36C
Output: 10
Angle of Throw (°): 36
Positions per Pole: 2
Number of Decks: N/A
25BSP11-B-1-16
Mechanical Encoder 25BSP11-B-1-16
Output: 11.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSP11-B-1-24
Mechanical Encoder 25BSP11-B-1-24
Output: 11.5
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BSP11-B-1-32C
Mechanical Encoder 25BSP11-B-1-32C
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BSP11-B-1-32F
Mechanical Encoder 25BSP11-B-1-32F
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BSP11-G-1-32C
Mechanical Encoder 25BSP11-G-1-32C
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BSP11-Q-1-32C
Mechanical Encoder 25BSP11-Q-1-32C
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BSP11-Q-1-32F
Mechanical Encoder 25BSP11-Q-1-32F
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BSP15-B-1-23
Mechanical Encoder 25BSP15-B-1-23
Output: 15
Angle of Throw (°): 23
Positions per Pole: 1
Number of Decks: N/A
25BSP15-B-1-24C
Mechanical Encoder 25BSP15-B-1-24C
Output: 15
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BSP15-G-1-08
Mechanical Encoder 25BSP15-G-1-08
Output: 15
Angle of Throw (°): 8
Positions per Pole: 1
Number of Decks: N/A
25BSP15-G-1-16
Mechanical Encoder 25BSP15-G-1-16
Output: 15
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSP15-Q-1-24C
Mechanical Encoder 25BSP15-Q-1-24C
Output: 15
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BSP18-Q-2-20F
Mechanical Encoder 25BSP18-Q-2-20F
Output: 18
Angle of Throw (°): 20
Positions per Pole: 2
Number of Decks: N/A
25BSP22-B-1-04
Mechanical Encoder 25BSP22-B-1-04
Output: 22.5
Angle of Throw (°): 4
Positions per Pole: 1
Number of Decks: N/A
25BSP22-B-1-08
Mechanical Encoder 25BSP22-B-1-08
Output: 22.5
Angle of Throw (°): 8
Positions per Pole: 1
Number of Decks: N/A
25BSP22-B-1-10
Mechanical Encoder 25BSP22-B-1-10
Output: 22.5
Angle of Throw (°): 10
Positions per Pole: 1
Number of Decks: N/A
25BSP22-B-1-12
Mechanical Encoder 25BSP22-B-1-12
Output: 22.5
Angle of Throw (°): 12
Positions per Pole: 1
Number of Decks: N/A
25BSP22-B-1-13
Mechanical Encoder 25BSP22-B-1-13
Output: 22.5
Angle of Throw (°): 13
Positions per Pole: 1
Number of Decks: N/A
25BSP22-B-1-16C
Mechanical Encoder 25BSP22-B-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSP22-B-1-16F
Mechanical Encoder 25BSP22-B-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSP22-B-2-16C
Mechanical Encoder 25BSP22-B-2-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 2
Number of Decks: N/A
25BSP22-B-2-16F
Mechanical Encoder 25BSP22-B-2-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 2
Number of Decks: N/A
25BSP22-B-3-16C
Mechanical Encoder 25BSP22-B-3-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 3
Number of Decks: N/A
25BSP22-B-4-12
Mechanical Encoder 25BSP22-B-4-12
Output: 22.5
Angle of Throw (°): 12
Positions per Pole: 4
Number of Decks: N/A
25BSP22-G-1-06
Mechanical Encoder 25BSP22-G-1-06
Output: 22.5
Angle of Throw (°): 6
Positions per Pole: 1
Number of Decks: N/A
25BSP22-G-1-08
Mechanical Encoder 25BSP22-G-1-08
Output: 22.5
Angle of Throw (°): 8
Positions per Pole: 1
Number of Decks: N/A
25BSP22-G-1-10
Mechanical Encoder 25BSP22-G-1-10
Output: 22.5
Angle of Throw (°): 10
Positions per Pole: 1
Number of Decks: N/A
25BSP22-G-1-11
Mechanical Encoder 25BSP22-G-1-11
Output: 22.5
Angle of Throw (°): 11
Positions per Pole: 1
Number of Decks: N/A
25BSP22-G-1-13
Mechanical Encoder 25BSP22-G-1-13
Output: 22.5
Angle of Throw (°): 13
Positions per Pole: 1
Number of Decks: N/A
25BSP22-G-1-15
Mechanical Encoder 25BSP22-G-1-15
Output: 22.5
Angle of Throw (°): 15
Positions per Pole: 1
Number of Decks: N/A
25BSP22-G-1-16C
Mechanical Encoder 25BSP22-G-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSP22-G-1-16F
Mechanical Encoder 25BSP22-G-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSP22-G-2-10
Mechanical Encoder 25BSP22-G-2-10
Output: 22.5
Angle of Throw (°): 10
Positions per Pole: 2
Number of Decks: N/A
25BSP22-G-4-16C
Mechanical Encoder 25BSP22-G-4-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 4
Number of Decks: N/A
25BSP22-G-4-16F
Mechanical Encoder 25BSP22-G-4-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 4
Number of Decks: N/A
25BSP22-Q-1-16C
Mechanical Encoder 25BSP22-Q-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSP22-Q-1-16F
Mechanical Encoder 25BSP22-Q-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSP30-B-1-11
Mechanical Encoder 25BSP30-B-1-11
Output: 30
Angle of Throw (°): 11
Positions per Pole: 1
Number of Decks: N/A
25BSP30-B-1-12C
Mechanical Encoder 25BSP30-B-1-12C
Output: 30
Angle of Throw (°): 12
Positions per Pole: 1
Number of Decks: N/A
25BSP30-B-1-12F
Mechanical Encoder 25BSP30-B-1-12F
Output: 30
Angle of Throw (°): 12
Positions per Pole: 1
Number of Decks: N/A
25BSP30-B-4-12C
Mechanical Encoder 25BSP30-B-4-12C
Output: 30
Angle of Throw (°): 12
Positions per Pole: 4
Number of Decks: N/A
25BSP30-G-4-12C
Mechanical Encoder 25BSP30-G-4-12C
Output: 30
Angle of Throw (°): 12
Positions per Pole: 4
Number of Decks: N/A
25BSP30-Q-1-05
Mechanical Encoder 25BSP30-Q-1-05
Output: 30
Angle of Throw (°): 5
Positions per Pole: 1
Number of Decks: N/A
25BSP30-Q-1-12C
Mechanical Encoder 25BSP30-Q-1-12C
Output: 30
Angle of Throw (°): 12
Positions per Pole: 1
Number of Decks: N/A
25BSP30-Q-2-12C
Mechanical Encoder 25BSP30-Q-2-12C
Output: 30
Angle of Throw (°): 12
Positions per Pole: 2
Number of Decks: N/A
25BSP30-Q-4-12C
Mechanical Encoder 25BSP30-Q-4-12C
Output: 30
Angle of Throw (°): 12
Positions per Pole: 4
Number of Decks: N/A
25BSP36-B-1-10C
Mechanical Encoder 25BSP36-B-1-10C
Output: 36
Angle of Throw (°): 10
Positions per Pole: 1
Number of Decks: N/A
25BSP36-B-1-10F
Mechanical Encoder 25BSP36-B-1-10F
Output: 36
Angle of Throw (°): 10
Positions per Pole: 1
Number of Decks: N/A
25BSP36-G-1-10C
Mechanical Encoder 25BSP36-G-1-10C
Output: 36
Angle of Throw (°): 10
Positions per Pole: 1
Number of Decks: N/A
25BSP45-B-1-08C
Mechanical Encoder 25BSP45-B-1-08C
Output: 45
Angle of Throw (°): 8
Positions per Pole: 1
Number of Decks: N/A
25BSP45-G-4-08F
Mechanical Encoder 25BSP45-G-4-08F
Output: 45
Angle of Throw (°): 8
Positions per Pole: 4
Number of Decks: N/A
25BSP45-Q-1-08C
Mechanical Encoder 25BSP45-Q-1-08C
Output: 45
Angle of Throw (°): 8
Positions per Pole: 1
Number of Decks: N/A
25BSP60-B-1-06C
Mechanical Encoder 25BSP60-B-1-06C
Output: 60
Angle of Throw (°): 6
Positions per Pole: 1
Number of Decks: N/A
25BSP60-B-1-06F
Mechanical Encoder 25BSP60-B-1-06F
Output: 60
Angle of Throw (°): 6
Positions per Pole: 1
Number of Decks: N/A
25BSR10-Q-1-10
Mechanical Encoder 25BSR10-Q-1-10
Output: 10
Angle of Throw (°): 10
Positions per Pole: 1
Number of Decks: N/A
25BSR10-Q-1-36C
Mechanical Encoder 25BSR10-Q-1-36C
Output: 10
Angle of Throw (°): 36
Positions per Pole: 1
Number of Decks: N/A
25BSR11-G-1-10
Mechanical Encoder 25BSR11-G-1-10
Output: 11.5
Angle of Throw (°): 10
Positions per Pole: 1
Number of Decks: N/A
25BSR11-Q-1-10
Mechanical Encoder 25BSR11-Q-1-10
Output: 11.5
Angle of Throw (°): 10
Positions per Pole: 1
Number of Decks: N/A
25BSR11-Q-1-16
Mechanical Encoder 25BSR11-Q-1-16
Output: 11.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSR11-Q-1-32C
Mechanical Encoder 25BSR11-Q-1-32C
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BSR11-Q-1-32F
Mechanical Encoder 25BSR11-Q-1-32F
Output: 11.5
Angle of Throw (°): 32
Positions per Pole: 1
Number of Decks: N/A
25BSR12-B-1-30C
Mechanical Encoder 25BSR12-B-1-30C
Output: 12
Angle of Throw (°): 30
Positions per Pole: 1
Number of Decks: N/A
25BSR12-Q-1-10
Mechanical Encoder 25BSR12-Q-1-10
Output: 12
Angle of Throw (°): 10
Positions per Pole: 1
Number of Decks: N/A
25BSR15-G-1-16
Mechanical Encoder 25BSR15-G-1-16
Output: 15
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSR15-Q-1-24C
Mechanical Encoder 25BSR15-Q-1-24C
Output: 15
Angle of Throw (°): 24
Positions per Pole: 1
Number of Decks: N/A
25BSR22-B-1-06
Mechanical Encoder 25BSR22-B-1-06
Output: 22.5
Angle of Throw (°): 6
Positions per Pole: 1
Number of Decks: N/A
25BSR22-B-1-07
Mechanical Encoder 25BSR22-B-1-07
Output: 22.5
Angle of Throw (°): 7
Positions per Pole: 1
Number of Decks: N/A
25BSR22-B-1-10
Mechanical Encoder 25BSR22-B-1-10
Output: 22.5
Angle of Throw (°): 10
Positions per Pole: 1
Number of Decks: N/A
25BSR22-B-1-13
Mechanical Encoder 25BSR22-B-1-13
Output: 22.5
Angle of Throw (°): 13
Positions per Pole: 1
Number of Decks: N/A
25BSR22-B-1-16C
Mechanical Encoder 25BSR22-B-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSR22-B-1-16F
Mechanical Encoder 25BSR22-B-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSR22-G-1-04
Mechanical Encoder 25BSR22-G-1-04
Output: 22.5
Angle of Throw (°): 4
Positions per Pole: 1
Number of Decks: N/A
25BSR22-G-1-08
Mechanical Encoder 25BSR22-G-1-08
Output: 22.5
Angle of Throw (°): 8
Positions per Pole: 1
Number of Decks: N/A
25BSR22-G-1-11
Mechanical Encoder 25BSR22-G-1-11
Output: 22.5
Angle of Throw (°): 11
Positions per Pole: 1
Number of Decks: N/A
25BSR22-G-1-13
Mechanical Encoder 25BSR22-G-1-13
Output: 22.5
Angle of Throw (°): 13
Positions per Pole: 1
Number of Decks: N/A
25BSR22-G-1-16C
Mechanical Encoder 25BSR22-G-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSR22-G-1-16F
Mechanical Encoder 25BSR22-G-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSR22-Q-1-16C
Mechanical Encoder 25BSR22-Q-1-16C
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSR22-Q-1-16F
Mechanical Encoder 25BSR22-Q-1-16F
Output: 22.5
Angle of Throw (°): 16
Positions per Pole: 1
Number of Decks: N/A
25BSR30-G-1-12C
Mechanical Encoder 25BSR30-G-1-12C
Output: 30
Angle of Throw (°): 12
Positions per Pole: 1
Number of Decks: N/A
25BSR30-Q-1-12C
Mechanical Encoder 25BSR30-Q-1-12C
Output: 30
Angle of Throw (°): 12
Positions per Pole: 1
Number of Decks: N/A
25BSR90-Q-1-04C
Mechanical Encoder 25BSR90-Q-1-04C
Output: 90
Angle of Throw (°): 4
Positions per Pole: 1
Number of Decks: N/A
