Series: 79
- Life Rating: 2,000
- Actuation: Raised Slide
- Linear Circuit Selector or Coded Output
Link copied to clipboard.
Request Quote
- Products
- Description

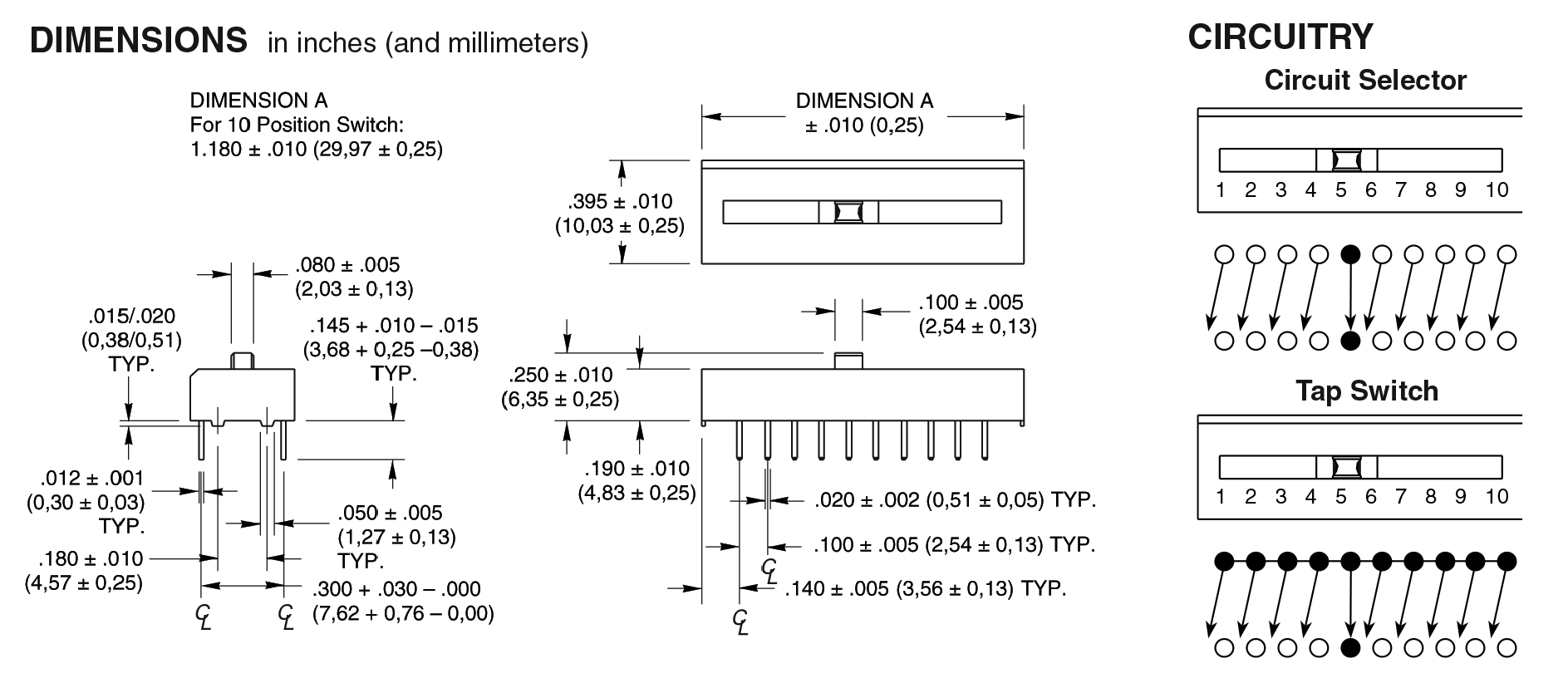

- Drawings
- Downloads
| Product | Switch Type | Circuitry | Mounting Configuration | Switch Rating |
|---|---|---|---|---|
|
Thru-Hole DIP Switches
79A10ST
|
Raised Slide | Slide Switch | Thru-Hole | 10 mA at 50 VDC |
|
Thru-Hole DIP Switches
79A10T
|
Raised Slide | Slide Switch | Thru-Hole | 10 mA at 50 VDC |
|
Thru-Hole DIP Switches
79B10ST
|
Raised Slide | BCD | Thru-Hole | 10 mA at 50 VDC |
|
Thru-Hole DIP Switches
79B10T
|
Raised Slide | BCD | Thru-Hole | 10 mA at 50 VDC |
- Life Rating: 2,000
- Actuation: Raised Slide
- Linear Circuit Selector or Coded Output
- Life Rating: 2,000
- Actuation: Raised Slide
- Linear Circuit Selector or Coded Output
Products
|
|
Thru-Hole DIP Switches
79A10ST
Switch Type: Raised Slide Circuitry: Slide Switch Mounting Configuration: Thru-Hole Switch Rating: 10 mA at 50 VDC |
|
|
Thru-Hole DIP Switches
79A10T
Switch Type: Raised Slide Circuitry: Slide Switch Mounting Configuration: Thru-Hole Switch Rating: 10 mA at 50 VDC |
|
|
Thru-Hole DIP Switches
79B10ST
Switch Type: Raised Slide Circuitry: BCD Mounting Configuration: Thru-Hole Switch Rating: 10 mA at 50 VDC |
|
|
Thru-Hole DIP Switches
79B10T
Switch Type: Raised Slide Circuitry: BCD Mounting Configuration: Thru-Hole Switch Rating: 10 mA at 50 VDC |
