Series: 68A
- High Resolution

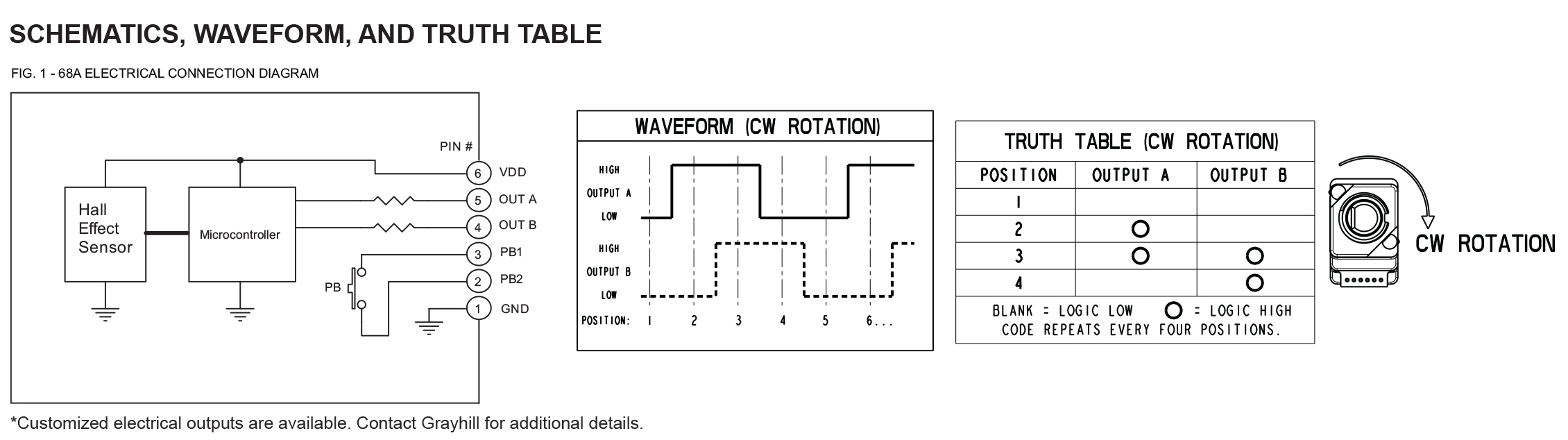

- Quadrature Output with push / pull circuitry
- Low power consumption - available in 3.3Vdc or 5Vdc
- Long operational life >1M cycles
- Integrated pushbutton
Link copied to clipboard.
Request Quote
- Products
- Description

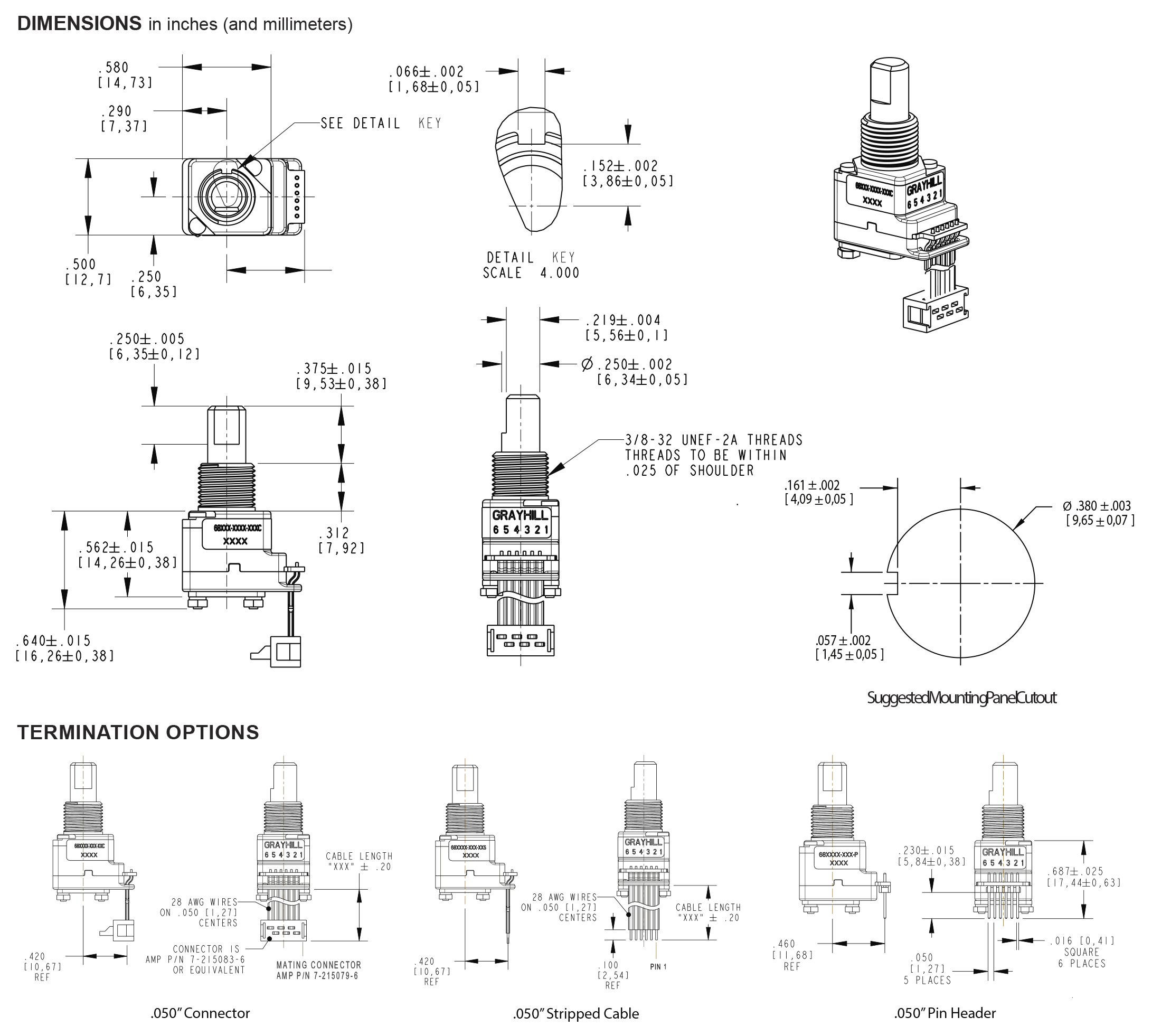

- Drawings
- Downloads
| Product | Output | Angle of Throw | Supply Voltage (VDC) | Shaft Diameter (in) |
|---|---|---|---|---|
|

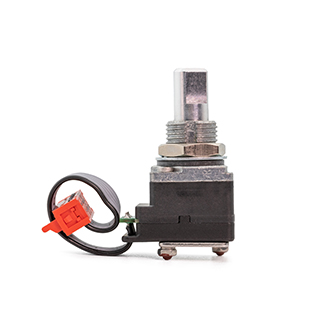

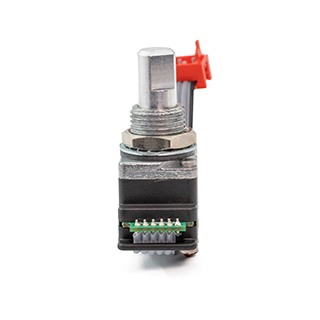

Hall-Effect Encoder
68A113Q-L9S-P
|
Quadrature | 11.25 | 3.3 | 0.25 |
|
Hall-Effect Encoder
68A115Q-H9S-06C
|
Quadrature | 11.25 | 5 | 0.25 |
|
Hall-Effect Encoder
68A115Q-L9N-06C
|
Quadrature | 11.25 | 5 | 0.25 |
|
Hall-Effect Encoder
68A225Q-H0S-02C
|
Quadrature | 22.5 | 5 | 0.25 |
|
Hall-Effect Encoder
68A225Q-H9S-02C
|
Quadrature | 22.5 | 5 | 0.25 |
|
Hall-Effect Encoder
68A225Q-H9S-04S
|
Quadrature | 22.5 | 5 | 0.25 |
|
Hall-Effect Encoder
68A225Q-H9S-06C
|
Quadrature | 22.5 | 5 | 0.25 |
|
Hall-Effect Encoder
68A225Q-L0S-02C
|
Quadrature | 22.5 | 5 | 0.25 |
|
Hall-Effect Encoder
68A225Q-L9N-06C
|
Quadrature | 22.5 | 5 | 0.25 |
|
Hall-Effect Encoder
68A225Q-L9S-02C
|
Quadrature | 22.5 | 5 | 0.25 |
- High Resolution
- Quadrature Output with push / pull circuitry
- Low power consumption - available in 3.3Vdc or 5Vdc
- Long operational life >1M cycles
- Integrated pushbutton
- High Resolution
- Quadrature Output with push / pull circuitry
- Low power consumption - available in 3.3Vdc or 5Vdc
- Long operational life >1M cycles
- Integrated pushbutton
Products
|
|
Hall-Effect Encoder
68A113Q-L9S-P
Output: Quadrature Angle of Throw: 11.25 Supply Voltage (VDC): 3.3 Shaft Diameter (in): 0.25 |
|
|
Hall-Effect Encoder
68A115Q-H9S-06C
Output: Quadrature Angle of Throw: 11.25 Supply Voltage (VDC): 5 Shaft Diameter (in): 0.25 |
|
|
Hall-Effect Encoder
68A115Q-L9N-06C
Output: Quadrature Angle of Throw: 11.25 Supply Voltage (VDC): 5 Shaft Diameter (in): 0.25 |
|
|
Hall-Effect Encoder
68A225Q-H0S-02C
Output: Quadrature Angle of Throw: 22.5 Supply Voltage (VDC): 5 Shaft Diameter (in): 0.25 |
|
|
Hall-Effect Encoder
68A225Q-H9S-02C
Output: Quadrature Angle of Throw: 22.5 Supply Voltage (VDC): 5 Shaft Diameter (in): 0.25 |
|
|
Hall-Effect Encoder
68A225Q-H9S-04S
Output: Quadrature Angle of Throw: 22.5 Supply Voltage (VDC): 5 Shaft Diameter (in): 0.25 |
|
|
Hall-Effect Encoder
68A225Q-H9S-06C
Output: Quadrature Angle of Throw: 22.5 Supply Voltage (VDC): 5 Shaft Diameter (in): 0.25 |
|
|
Hall-Effect Encoder
68A225Q-L0S-02C
Output: Quadrature Angle of Throw: 22.5 Supply Voltage (VDC): 5 Shaft Diameter (in): 0.25 |
|
|
Hall-Effect Encoder
68A225Q-L9N-06C
Output: Quadrature Angle of Throw: 22.5 Supply Voltage (VDC): 5 Shaft Diameter (in): 0.25 |
|
|
Hall-Effect Encoder
68A225Q-L9S-02C
Output: Quadrature Angle of Throw: 22.5 Supply Voltage (VDC): 5 Shaft Diameter (in): 0.25 |
