Series: 60AD

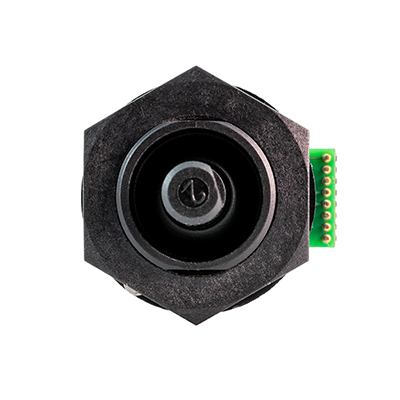

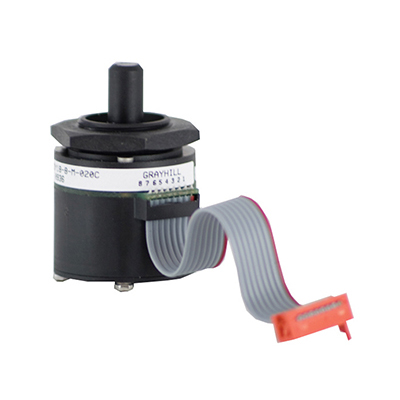

Grayhill's 60AD NavCoder Multifunction Joysticks are specialized interface devices designed for navigating on-screen software. They provide directional control in 2-way, 4-way, or 8-way configurations and include a central pushbutton for selecting menu options. These joysticks also feature three levels of joystick and pushbutton force, as well as adjustable rotary torque. In addition, the joysticks have a rotational control feature that allows users to scroll through various options or adjust settings, such as volume intensity.

Link copied to clipboard. Request Quote

Products
Description

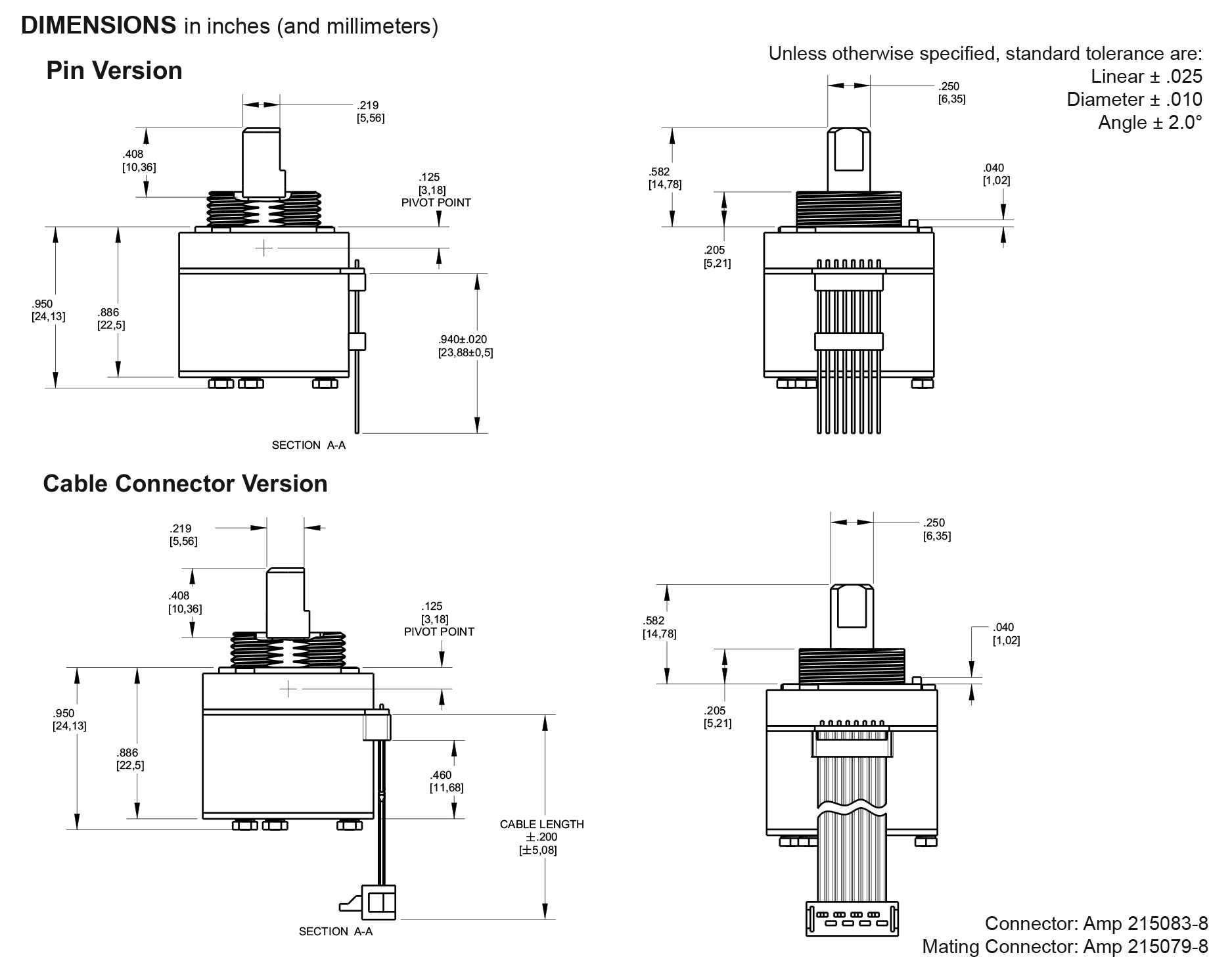

Drawings
Downloads

Product	Encoder Angle of Throw	Joystick Positions	Output	Shaft Diameter: Deck A (in)
NavCoder Multifunction Joystick 60AD18-4-H-020C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-H-030C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-H-040C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-H-040S	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-H-050C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-H-060C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-H-060S	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-H-120S	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-H-P	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-L-020C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-L-040C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-L-050C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-L-060C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-M-020C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-M-030C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-M-050C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-M-060C	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-4-M-060S	4	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-H-020C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-H-020S	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-H-025C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-H-030C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-H-060C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-H-060S	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-H-120S	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-H-P	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-L-020C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-L-025C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-L-030C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-L-060C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-L-060S	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-L-100S	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-M-020C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-M-030S	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-M-040C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-M-060C	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-M-060S	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-M-100S	8	Quadrature, Digital Voltage	0.25	N/A
NavCoder Multifunction Joystick 60AD18-8-M-250C	8	Quadrature, Digital Voltage	0.25	N/A

Customizable joystick force and rotary torque
Life Rating (cycles): 1M for rotary and pushbutton, 500K for joystick
Size inches [mm]: 1 [25,4] dia
Depth Behind Panel inches [mm]: 0.95 [24,13]
Resolution: 20 PPR

Customizable joystick force and rotary torque
Life Rating (cycles): 1M for rotary and pushbutton, 500K for joystick
Size inches [mm]: 1 [25,4] dia
Depth Behind Panel inches [mm]: 0.95 [24,13]
Resolution: 20 PPR
